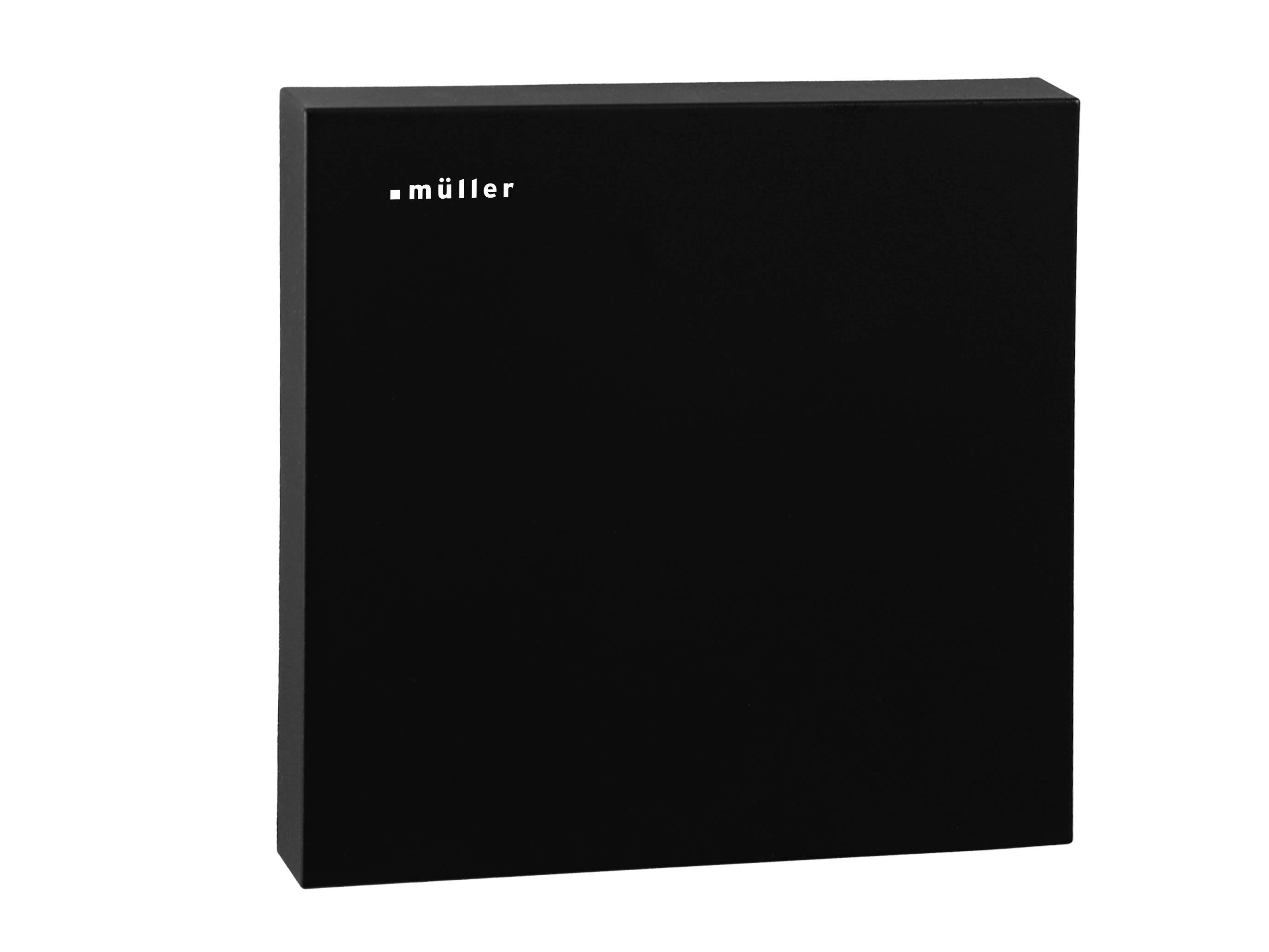

Müller KNX 24708 Room thermostat hygrostat combo GS 30.12 knx RAL 9005
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 95.99 / piece)
€ 95.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Weidmüller GS 30.12 KNX black, room temperature regulator with hygrostat
- Room controller with temperature, humidity, and air pressure sensor
- 2 independent temperature controllers & 2 VAV control circuits
- Intelligent control with up to 4 sensor values (incl. external sensors)
- 3× 0–10 V analog outputs (e.g. for VAV, fan coils or actuators)
- 5 freely usable binary and analogue inputs
- Integrated air quality and humidity monitoring incl. limit logic
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Clear ETS structure and easy commissioning
- Modern, flat surface-design (80 mm)
Technical specifications
- KNX Secure (encrypted communication)
- Product type
Room thermostat hygrostat combo
- Series
KNX
- Used at
Indoors
IP20
- Data transfer (Smart Home)
Wired
- Mounting type
Wall
Surface-mount
- Factory colour
Jet black (RAL 9005)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
90 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771304 Müller KNX 24708 Room thermostat hygrostat combo GS 30.12 knx RAL 9005
User & Safety Instructions
User & Safety Instructions 3771304 Müller KNX 24708 Room thermostat hygrostat combo GS 30.12 knx RAL 9005
Description
Ensure a completely healthy and comfortable climate in your rooms with the müller GS 30.12 KNX! This modern room thermostat with integrated hygrostat measures precise temperature, relative humidity as well as absolute air pressure. Thanks to its intelligent functions such as dew point monitoring and integrated VAV ventilation controls, it prevents moisture damage and optimizes the room air quality. The flat, minimalist design in noble studio white fits inconspicuously into any modern living or work environment. Equipped with KNX Secure and flexible inputs, it offers maximum security and future-proof Smart home connectivity.
This text is machine translated.
This text is machine translated.
Features
- Temperature, air pressure and humidity sensors
- Measuring air quality
- Temperature sensor (measuring range 0...50 °C)
- Air humidity sensor (measurement range 0...100 % rel. Humidity)
- Humidity comparison function
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 2 VAV controls possible
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
Scope of delivery
- 1x müller GS 30.12 KNX (room temperature controller with hygrostat, deep black)
- 1x KNX terminal clamp
- Operating / mounting instructions
