Name: PCE Instruments PCE-VE 100N4 Endoscope Probe diameter: 6 mm Probe length: 1 m
Brand: PCE Instruments
SKU: 2452797
Availability: BackOrder

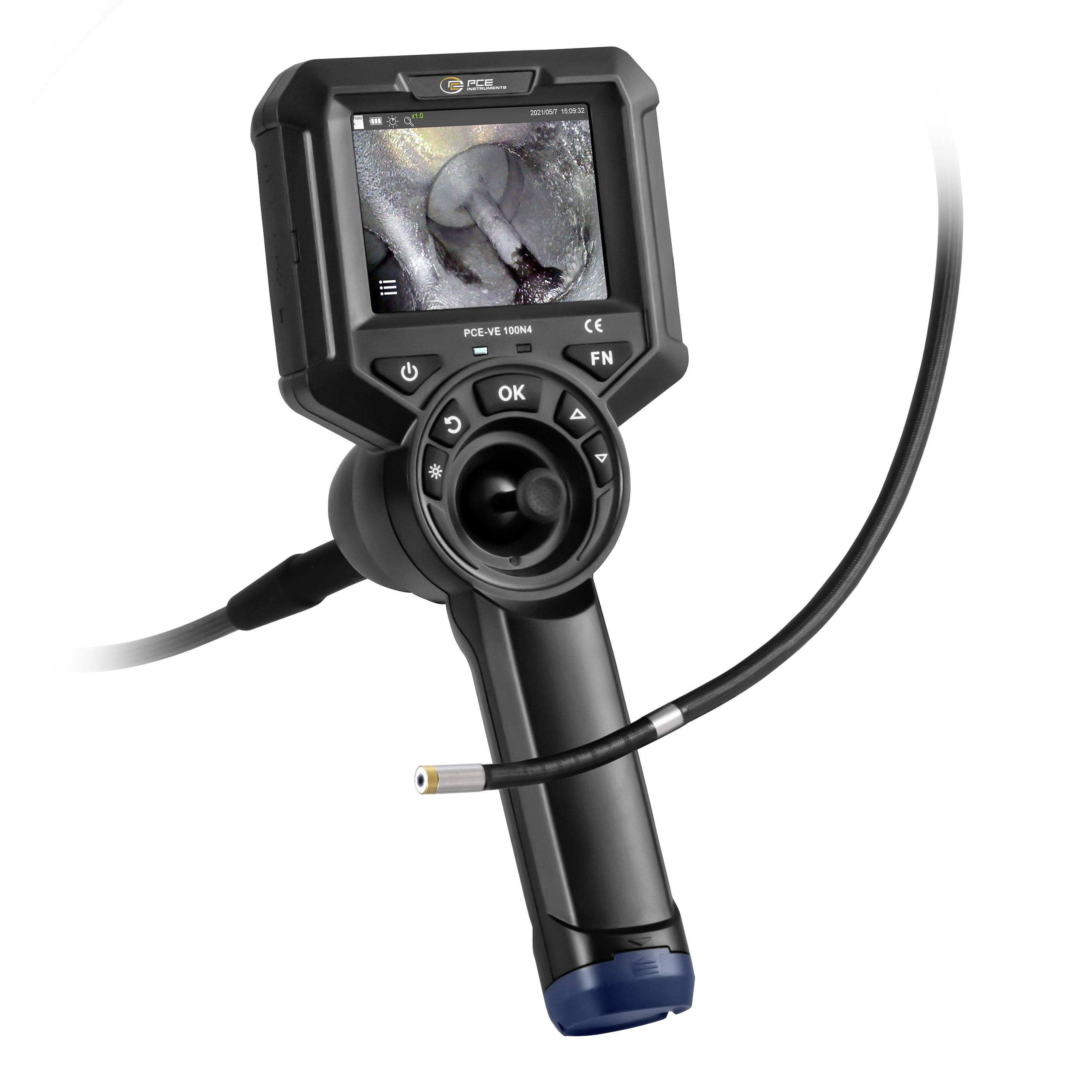

Handheld inspection borescope with screen showing a close-up inside a pipe or cavity, attached flexible camera probe<br>

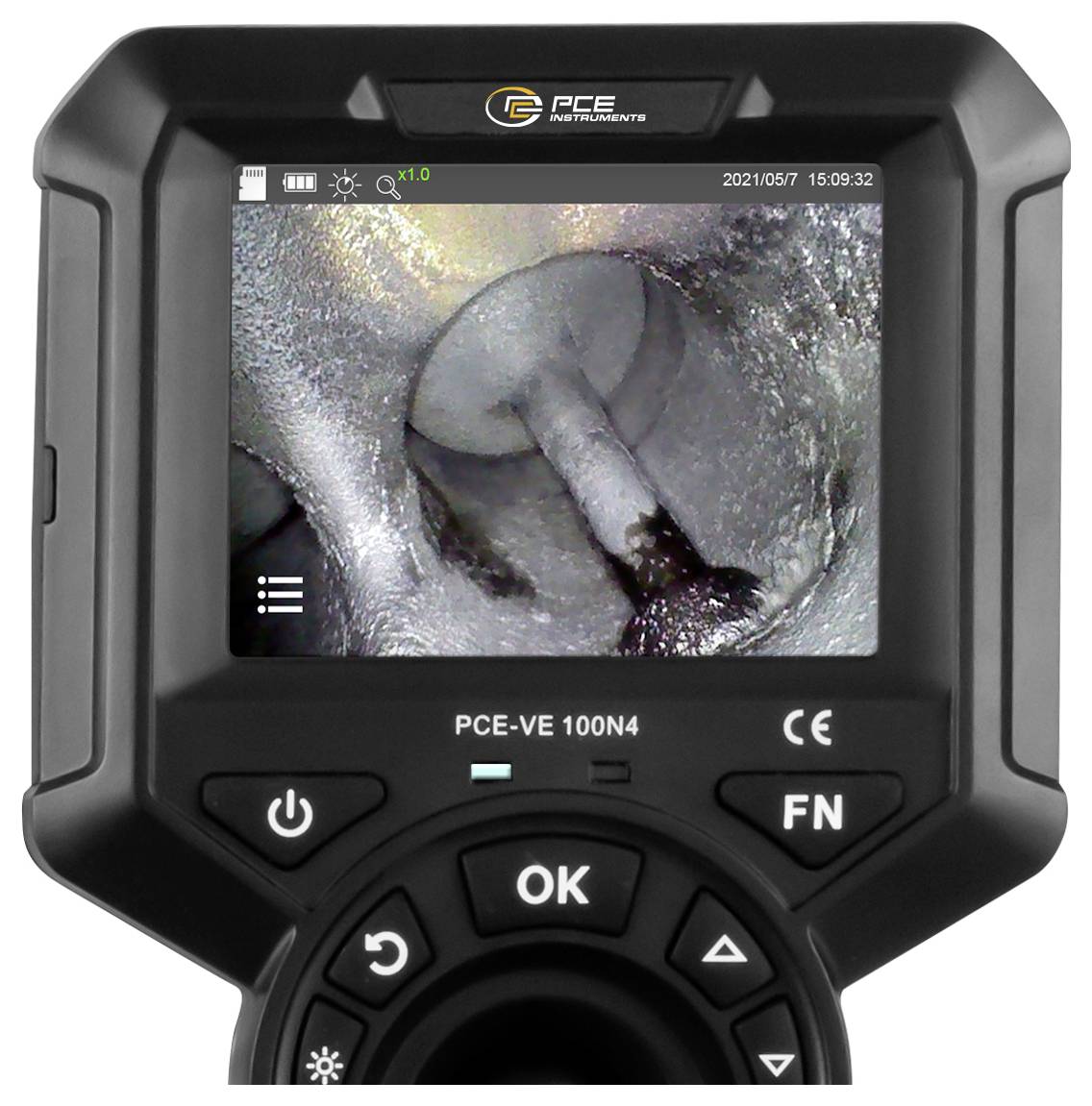

Handheld borescope showing an internal pipe or duct inspection on its screen, with a close-up of a hole, residue, and a probe view.<br>

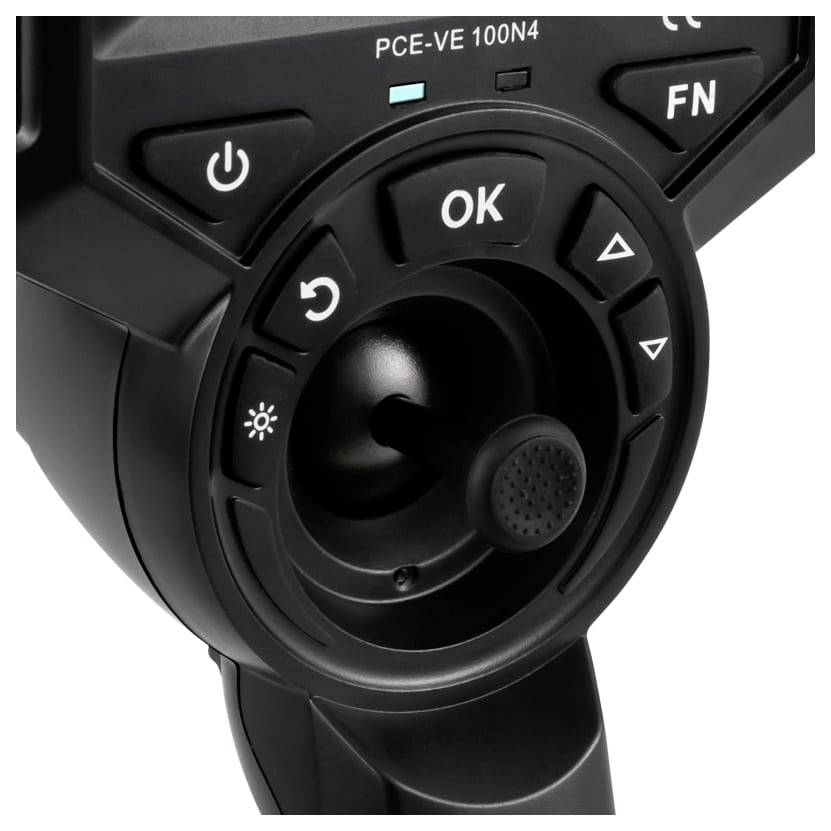

Close-up of a black device control panel with power, OK, FN, arrow buttons, and a central joystick/knob labeled 'PCE-VE 100N4'.

360-degree swivel flashlight head showing full rotation around the top of a black flashlight or baton<br>

Person pressing buttons on a handheld industrial device with a screen, likely a scanner or controller, in a workshop setting

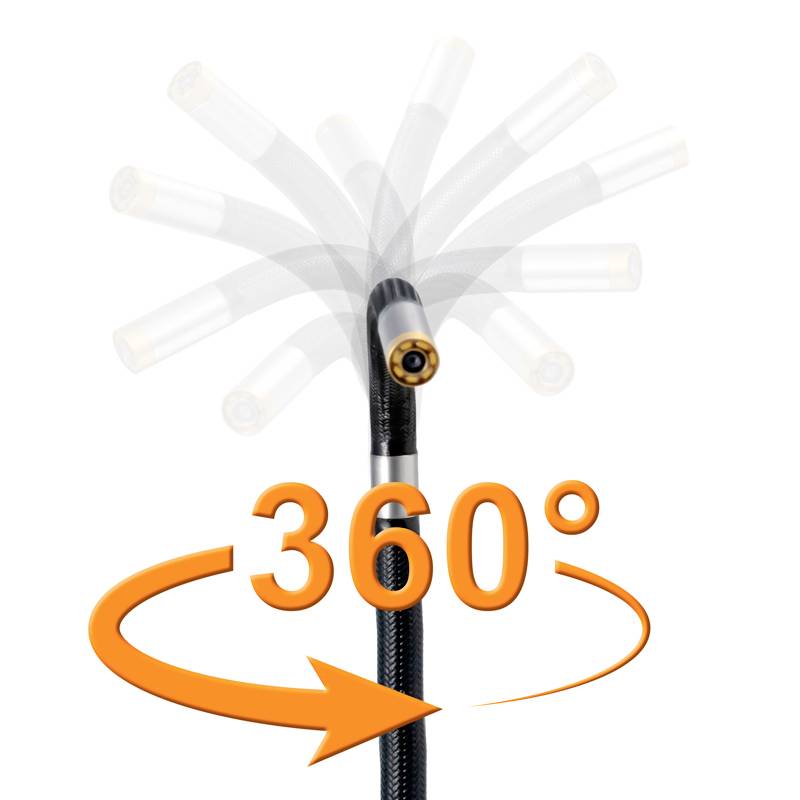

Endoscope camera with a flexible tip that can rotate 360 degrees. Suitable for hard-to-reach areas.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,725.00 / piece)

€ 1,725.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Camera diameter 6 mm Cable length 1 m Camera pixel 1,000,000 Field of view 7 ... 110 mm Field of view 120° Swivelling range: 360 ° Illumination intensity can be set to five levels up to 25,000 lx Cable material tungsten braided Bending radius > 220° Display 3.5 " IPS Display resolution 640 x 480 Photo and video format JPG / MP4 Photo and video resolution 960 x 720, 1280 x 720 Magnification 5x Protection class Camera cable IP67 Display: IP65 Memory 16 GB Micro-SD card Power supply battery 1 x 3.7 V 3200 mAh 18650 rechargeable battery Power consumption 3.5 W Operating time > 3 hours Power supply mains operation Primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A SECONDARY 5 V DC, 2 A. Interfaces Mini HDMI (image transfer) Micro-USB port (charging port) Storage conditions -10 ... +63 °C,< 92 % RH, non-condensing Operating conditions Display* -10 ... +50 °C,< 92 % RH, non-condensing Operating conditions Camera* -10 ... +80 °C,< 92 % RH, non-condensing *At temperatures below 0 °C, the display must be preheated and the camera head must not be swiveled completely Dimensions 277 x 106 x 92 mm Weight approx. 500 g

Product type: Endoscope

Probe diameter: 6 mm

Probe length: 1 m

Endoscope features: LED lit
Video output
Image function

Display resolution: 640 x 480 Pixel

Camera resolution: 960 x 720 Pixel

: IP65

Field of view: 120°

Weight: 500 g

Handle grip dimensions: 277 x 106 x 92 mm

Dim: (L x W x H) 277 x 106 x 92 mm

Length: 277 mm

Width: 106 mm

Height: 92 mm

Type: PCE-VE 100N4

Variants(All information include VAT, plus shipping costs)

Camera resolution

Display resolution

Endoscope features

IP rating

Probe diameter

Probe length

Product type

PCE Instruments PCE-VE 100N4 Endoscope Probe diameter: 6 mm Probe length: 1 m

Item no:2452797

Dispatches on Fri 30 Oct

Conrad Electronic

This article

960 x 720 Pixel

640 x 480 Pixel

LED lit

IP65

6 mm

1 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,725.00^*

PCE Instruments PCE-IVE 330 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452790

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

704 x 576 Pixel

800 x 480 Pixel

Video output

23 mm

320 mm

Borescope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,425.00^*

PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m

Item no:2452588

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

720 x 576 Pixel

Battery indicator

IP67/IP69K

23 mm

20 m

Inspection camera

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,145.00^*

PCE Instruments PCE-RS 27 Endoscope Probe diameter: 2.7 mm Probe length: 175 mm

Item no:2452614

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

High-resolution

2.7 mm

175 mm

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,265.00^*

PCE Instruments PCE-IVE 320 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452488

Unavailable

Conrad Electronic

704 x 576 Pixel

800 x 480 Pixel

LED lit

23 mm

320 mm

Borescope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-PIC 120 Endoscope Probe diameter: 60 mm Probe length: 120 m

Item no:2452587

Unavailable

Conrad Electronic

1920 x 1080 Pixel

1200 x 800 Pixel

Video output

IP68

60 mm

120 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-PIC 60 Endoscope Probe diameter: 60 mm Probe length: 60 m

Item no:2452832

Unavailable

Conrad Electronic

1920 x 1080 Pixel

1280 x 800 Pixel

LED lit

IP68

60 mm

60 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200-S Endoscope Probe diameter: 3.7 mm Probe length: 1 m

Item no:2452704

Unavailable

Conrad Electronic

640 x 480 Pixel

1600 x 1200 Pixel

LED lit

IP54

3.7 mm

1 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200-S3 Endoscope Probe diameter: 3.7 mm Probe length: 3 m

Item no:2452705

Unavailable

2 Piece(s)Conrad Electronic

640 x 480 Pixel

1600 x 1200 Pixel

LED lit

IP54

3.7 mm

3 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200SV3 Endoscope Probe diameter: 9 mm Probe length: 3 m

Item no:2452791

Unavailable

Conrad Electronic

640 x 480 Pixel

1600 x 1200 Pixel

LED lit

IP54

9 mm

3 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2452797 PCE Instruments PCE-VE 100N4 Endoscope Probe diameter: 6 mm Probe length: 1 m

User & Safety Instructions

User & Safety Instructions 2452797 PCE Instruments PCE-VE 100N4 Endoscope Probe diameter: 6 mm Probe length: 1 m

Description

4-way boroscope with photo and video recording / 1280 x 720 pixels / 360° swiveling / 6 mm diameter / 1 meter cable length / LED lighting / Micro-SD card memory / carrying case / battery life >3 hours / IP 67 the 4-way boroscope with a cable length of one meter and a camera head diameter Of 6 mm, is the ideal tool for endoscopy. The LED illuminance on the camera head can be set to up to 25,000 lux in 5 levels. This ensures that the test object is adequately illuminated. With the mini-HDMI interface in the 4-way boroscope, the image can be transferred to an external monitor or projector. This has the special advantage that the 4-way boroscope can be used for presentations. Thus, the 4-way video endoscope is used in car workshops, heating and air-conditioning technology, or vocational schools, universities and other school facilities. Photos as well as videos can be taken with the 4-way boroscope. The recordings are stored directly on the Micro-SD card and can be displayed on the 4-way boroscope. It is also possible to transfer the recordings from the Micro-SD card to a computer. This allows the recordings of the 4-way boroscope to be stored, for example, in reports of expert reports. With the 3500 mAh rechargeable battery, an operating time of more than 3 hours is possible before it has to be recharged. In order to recharge the battery, the 4-way boroscope can be connected to any 5 V USB interface.
