PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
175 V DC
120 V AC
Switching current (max.)
0.25 A
Connection
Open end cable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Highlights & Details
PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
Our service for you
Technical specifications
- Product type
Reed switch
- Type
MS-216-4
- Water activity (max.)
15
- Water activity (min.)
10
- Contact type
1 change-over
- Switching voltage (max.)
175 V DC
120 V AC
- Switching current (max.)
0.25 A
- Max. switching capacity
5 W
- Connection
Open end cable
- Cable length
0.50 m
- Enclosure material
Acrylonitrile butadiene styrene
- Max. temperature
+85 °C
- Min. temperature
-20 °C

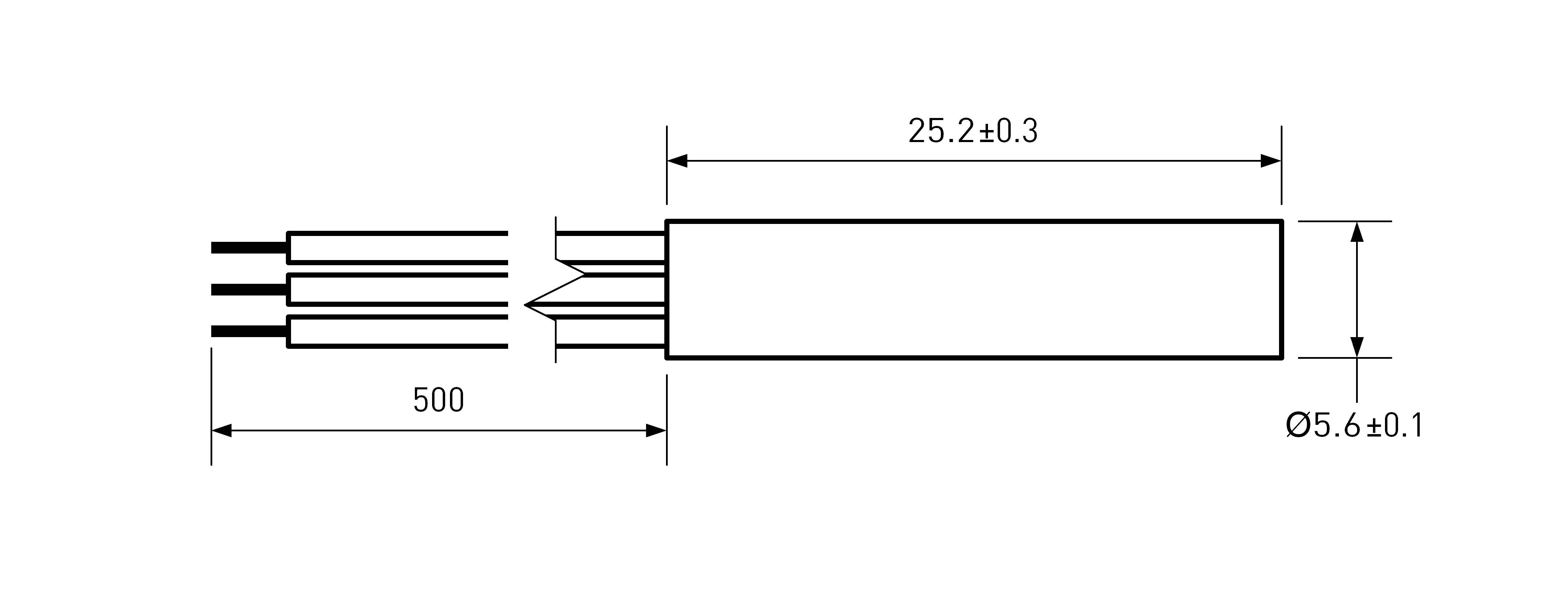

- Dim. (add. text)
Casing
- Length
25.2 mm
- (Ø)
5.6 mm
- Dim
(Ø x L) 5.6 mm x 25.2 mm (Casing)
- RoHS-compliant
Yes
- Water activity
10 - 15
- Switching capacity
5 W
- Switching current
0.25 A
- Type
MS-216-4
- Connection
Cable 500 mm
Documents & Downloads
Datasheet
Datasheet 503551 PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
User & Safety Instructions
User & Safety Instructions 503551 PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
Information
Information 503551 PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
Certificate
Certificate 503551 PIC MS-216-4 Cylindrical Reed Sensor N/A 0.25 A 5 W
Description
Reed sensors in the pipe housing. Ideal as alarm contact in doors and windows, for model making and as locator.
