Name: Quadrios 22T014 22T014 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²
Brand: Quadrios
SKU: 2620428
Price: 61.99 EUR
Availability: InStock

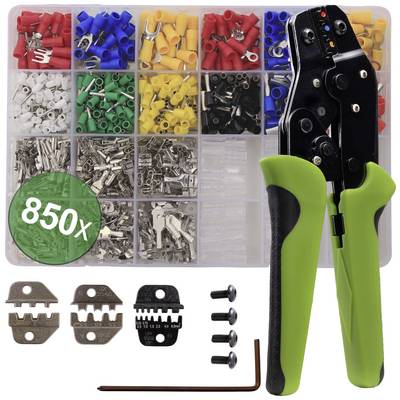

Crimping pliers set with 850 cable shoes in various colours, screws, L-shaped hexagonal spanner in the foreground, box in the background.

A crimping pliers clamps a flat connector. Top left, 'Flat Connector' is written on a green background.

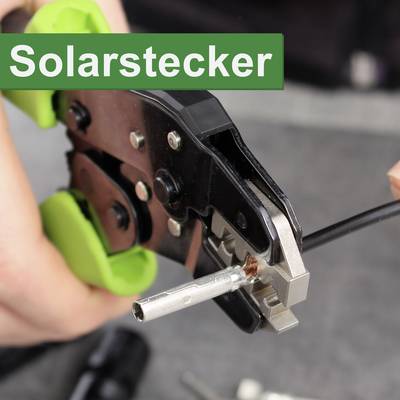

A hand uses pliers to crimp a solar connector. 'Solar connector' text is written in the top left on a green background.

A hand is using a crimping plier to secure a blue cable end sleeve on a brown cable. Above it reads 'Cable End Sleeves'.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

3 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 3 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Quadrios 22T014 22T014 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

Multifunction crimping pliersComplete set with crimp attachments850 Crimp connector

Technical specifications

Product type: Crimper set

Manufacturer part #: 22T014

Range of uses: Ferrules
Blade terminal receptacles
PV connector

Crimp area: 0.25 up to 6 mm²

Crimp area (min.): 0.25 mm²

Crimp area (max.): 6 mm²

Material: Steel

Operating range (cross section) (max.): 6 mm²

Working area cross section (min.): 0.25 mm²

Documents & Downloads

Datasheet

Datasheet 2620428 Quadrios 22T014 22T014 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 2620428 Quadrios 22T014 22T014 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

Description

Crimping pliers for different uses made of carbon-steel S50C (grip PP/TPR). Crimp function for cable lugs (insulated) 0.25 mm² ... 2.5 mm². Fine-tuning possible for actuating force. In addition, a high-quality crimp connector set with 850 parts as well as exchangeable inserts for wire end sleeves 0.25 ... 6 mm², insert for flat-pin connectors/flat-pin connectors (insulated) 0.5 mm² ... 1.5 mm², insert for MC4 solar plugs 2.5 mm² ... 6 mm², one Allen key and 4 x spare screws included.

This text is machine translated.

Scope of delivery

Crimping pliers with inserts for wire end sleeves (insulated)25 pieces - fork-type cable terminal red, LochØ 3.1 mm, 0.5…1.5 mm² 25 pieces - fork-type cable terminal blue, LochØ 4.1 mm, 0.5…1.5 mm² 20 pieces - fork-type cable terminal red, LochØ 5.2 mm, 1.5…2.5 mm² 25 x red ring terminal, LochØ 3.1 mm, 0.5…1.5 mm² 25 x blue ring terminal, LochØ 4.1 mm, 0.5…1.5 mm² 20 x ring-type cable lug yellow, LochØ 5.2 mm, 1.5…2.5 mm² 80 pieces - white wire-end sleeves, length 14 mm, 0.5 mm² 75 pieces - wire-end sleeves green, length 14.3 mm, 1 mm² 55 pieces - yellow wire-end sleeves, length 14.3 mm, 1.5 mm² 40 pieces - black wire-end sleeves, length 17.4 mm, 2.5 mm² 25 pieces - wire-end sleeves blue, length 19.4 mm, 4 mm² 15 pieces - red wire-end sleeves, length 20.5 mm, 6 mm² 60 pieces - female spade connectors 2.8 mm, 0.5 mm² 50 pieces - female spade connectors 4.8 mm, 0.5 mm² 30 pieces - female spade connectors 6.3 mm, 1.5 mm² 60 x 2.8 mm, 0.5 mm² 50 x 4.8 mm, 0.5 mm² 30 x 6.3 mm, 1.5 mm² 60 pieces - transparent insulating sleeve 2.8 mm 50 pieces - transparent insulating sleeve 4.8 mm 30 pieces - transparent insulating sleeve 6.3 mmInsert for wire-end sleeves (insulated) 0.25 mm² ... 2.5 mm².Insert for wire-end sleeves (uninsulated) 0.25 ... 6 mm². Insert for flat plug/flat plug (insulated) 0.5 mm² ... 1.5 mm². Use for MC4 solar plugs 2.5 mm² ... 6 mm². Allen key 4 pieces - spare screws
