Reolink Duo Series P757 PCDUOB8K02 Corded IP CCTV camera 7680 x 2160 p

1/11
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Total (€ 224.99 / piece)
€ 224.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

Corded IP-7680 x 2160 p;ReolinkDuo Series P757;PCDUOB8K02Outdoors, Indoors

  • 16 MP UHD resolution – Two 4K sensors for highly detailed images
  • 180° panoramic view – wide coverage without blind angle through Dual image stitching
  • Motion Track – Visualization of movements in an image with time stamp
  • Colour and black and white night vision - precision in all lighting conditions
  • Power over Ethernet (PoE) – Easy one-cable installation
  • Intelligent detection – distinction between people, vehicles and pets
  • Two-way audio – Direct communication via built-in microphone and speaker
  • Storage options – Supports microSD cards up to 512 GB
  • Real-time notifications – alarms when motion is detected
  • Customizable detection zones – Individual definition of relevant areas
  • Google assistant compatible – control and live streaming via voice command
  • Simple remote access via Reolink APP or Reolink client
  • IK10 vandalism protection – perfect for use in public areas
  • Weatherproof IP67 - robust design against extreme weather conditions

Technical specifications

  • 1/2.8" CMOS sensor
  • Resolution 7680 x 2160 (16 MP) @ 20FPS
  • Lens: F=2.8 mm / F1.6
  • Video compression: H.265 / H.264
  • Field of view: Horizontal: 180°, vertical: 53°
  • Infrared night vision: Up to 30 meters (LED: 6 pieces. / 20 mil / 850nm)
  • Colour night vision: Spotlights: 6 pieces / 1.6 W / 4500 K / 540-840 lumen
  • Frame rate: Mainstream: 4 fps - 20 fps (standard: 20 fps),
  • Substream:4 fps - 20 fps (standard: 20 fps)
  • Bit rate: Mainstream: 3072 Kbps - 12288 Kbps (default: 10240 Kbps)
  • Substream:128 - 2048 kbit/s (standard 1024 kbit/s)
  • Audio: Two-way audio
  • DC current 12.0 V/DC, 1 A, greater than 12 W.
  • PoE IEEE 802.3af, 48 V, active
  • Electrical connection: Direct current connection
  • Ethernet connection 1×10 M/100 Mbps; RJ45
  • Storage: Supports max. 512 GB microSD-card
  • Reset button: Yes
  • Audio: Built-in microphone and speaker
  • Browser: Edge, Chrome, Firefox, Safari
  • Operating system: PC: Windows, Mac OS; Smartphone: IOS, Android
  • Protocols and standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User access: Max. 20 users (1 admin and 19 co-user);
  • Max. 12 concurrent streams (2 mainstreams and 10 substreams)
  • Smart alarms: Motion detection; people detection; vehicle detection; pet detection
  • Recording modes: Triggered recording (standard); time-controlled recording,
  • 24/7-Recording
  • Perimeter Protection: Alarm when the line is exceeded, warning when zone is invaded, warning if the zone is not allowed to roam
  • AI video search: Yes
  • Time lapse: Yes
  • Smart home compatibility: Google assistant, Amazon Alexa
  • Operating temperature: -10 °C to + +45°C.
  • Humidity: 10% to 90%
  • Weather resistance IP67
  • 1/2.8" CMOS sensor
  • Resolution 7680 x 2160 (16 MP) @ 20FPS
  • Lens: F=2.8 mm / F1.6
  • Video compression: H.265 / H.264
  • Field of view: Horizontal: 180°, vertical: 53°
  • Infrared night vision: Up to 30 meters (LED: 6 pieces. / 20 mil / 850nm)
  • Colour night vision: Spotlights: 6 pieces / 1.6 W / 4500 K / 540-840 lumen
  • Frame rate: Mainstream: 4 fps - 20 fps (standard: 20 fps),
  • Substream:4 fps - 20 fps (standard: 20 fps)
  • Bit rate: Mainstream: 3072 Kbps - 12288 Kbps (default: 10240 Kbps)
  • Substream:128 - 2048 kbit/s (standard 1024 kbit/s)
  • Audio: Two-way audio
  • DC current 12.0 V/DC, 1 A, greater than 12 W.
  • PoE IEEE 802.3af, 48 V, active
  • Electrical connection: Direct current connection
  • Ethernet connection 1×10 M/100 Mbps; RJ45
  • Storage: Supports max. 512 GB microSD-card
  • Reset button: Yes
  • Audio: Built-in microphone and speaker
  • Browser: Edge, Chrome, Firefox, Safari
  • Operating system: PC: Windows, Mac OS; Smartphone: IOS, Android
  • Protocols and standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User access: Max. 20 users (1 admin and 19 co-user);
  • Max. 12 concurrent streams (2 mainstreams and 10 substreams)
  • Smart alarms: Motion detection; people detection; vehicle detection; pet detection
  • Recording modes: Triggered recording (standard); time-controlled recording,
  • 24/7-Recording
  • Perimeter Protection: Alarm when the line is exceeded, warning when zone is invaded, warning if the zone is not allowed to roam
  • AI video search: Yes
  • Time lapse: Yes
  • Smart home compatibility: Google assistant, Amazon Alexa
  • Operating temperature: -10 °C to + +45°C.
  • Humidity: 10% to 90%
Product type

CCTV camera

CCTV features

Vehicle recognition

Pet recognition

Resolution (max.)

7680 x 2160 p

Sensor size

1/2.8" (9.07 mm)

Sensor type

CMOS

Max. viewing angle hor.

180°

Vertical viewing angle

53°

Transfer type

Corded

IR range (max.)

30 m

Used at

Outdoors

Indoors

Type

microSD card (up to 512 GB)

Width

985 mm

Height

985 mm

(Ø)

137 mm

Dim

(Ø x H) 137 mm x 985 mm

Weight

664 g

F-numbers

F=1.6

IP67

Signal standard

IP

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3741956 Reolink Duo Series P757 PCDUOB8K02 Corded IP CCTV camera 7680 x 2160 p

User & Safety Instructions

User & Safety Instructions 3741956 Reolink Duo Series P757 PCDUOB8K02 Corded IP CCTV camera 7680 x 2160 p

Description

The Reolink DUO series P757 combines advanced monitoring technology with robust design and intelligent functionality. Equipped with two 4K sensors, it delivers an impressive 16 megapixel Ultra HD resolution that captures even the finest details with razor-sharp focus. The powerful quad-core processor produces clear and precise images – Ideal for use in demanding security environments. With a variety of functions such as 180° panoramic view, color night view and Power over Ethernet as well as many more, the Reolink DUO series P757 offers comprehensive security for your home or your company.
Excellent picture quality in 16MP Ultra HD
Every detail counts: With a resolution of 16 megapixels, faces and objects can be clearly seen from a distance of up to 16 meters. The excellent picture sharpness enables a reliable evaluation of the recordings during the day and night.

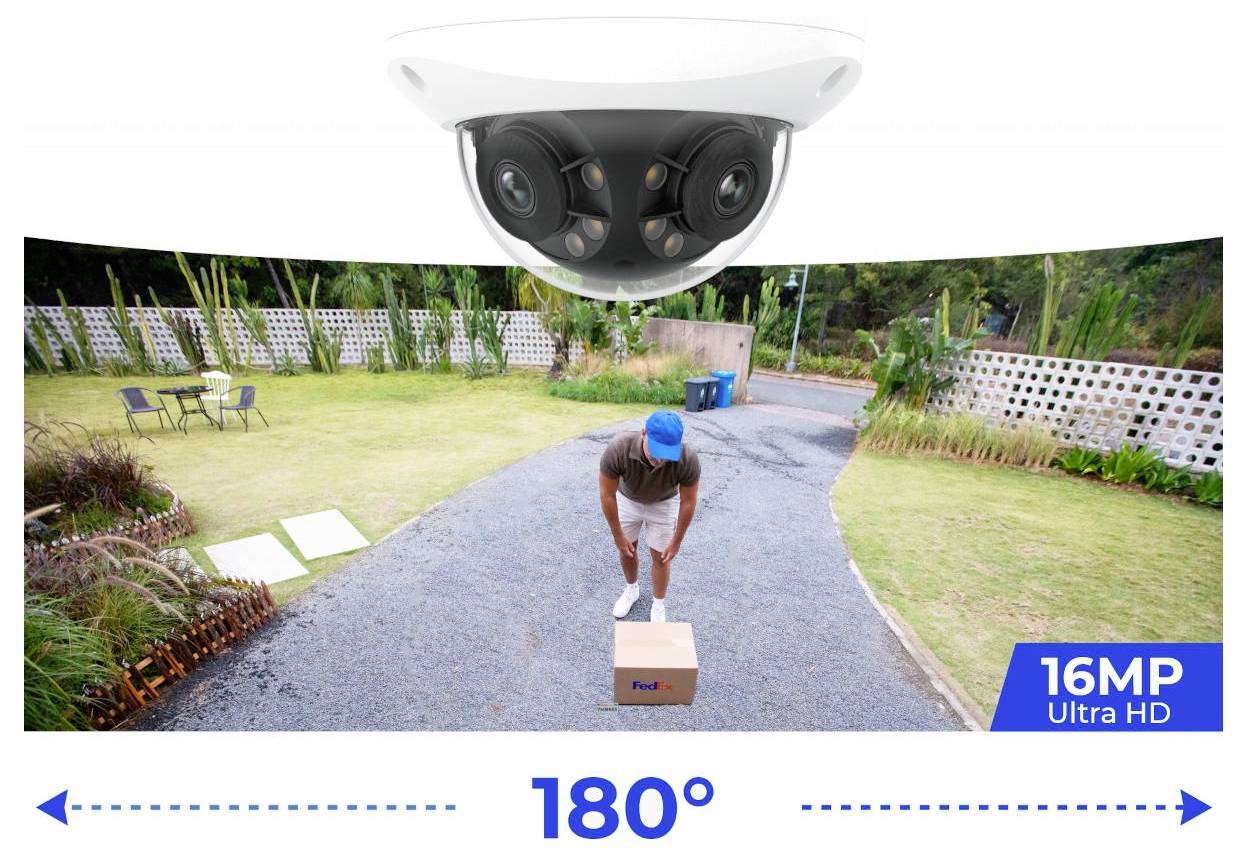

Seamless 180° panorama
The innovative Dual image stitching technology combines two 4K images into a single, smooth panoramic view with no visible transitions or distortion. The result: A complete panoramic view without blind spots.

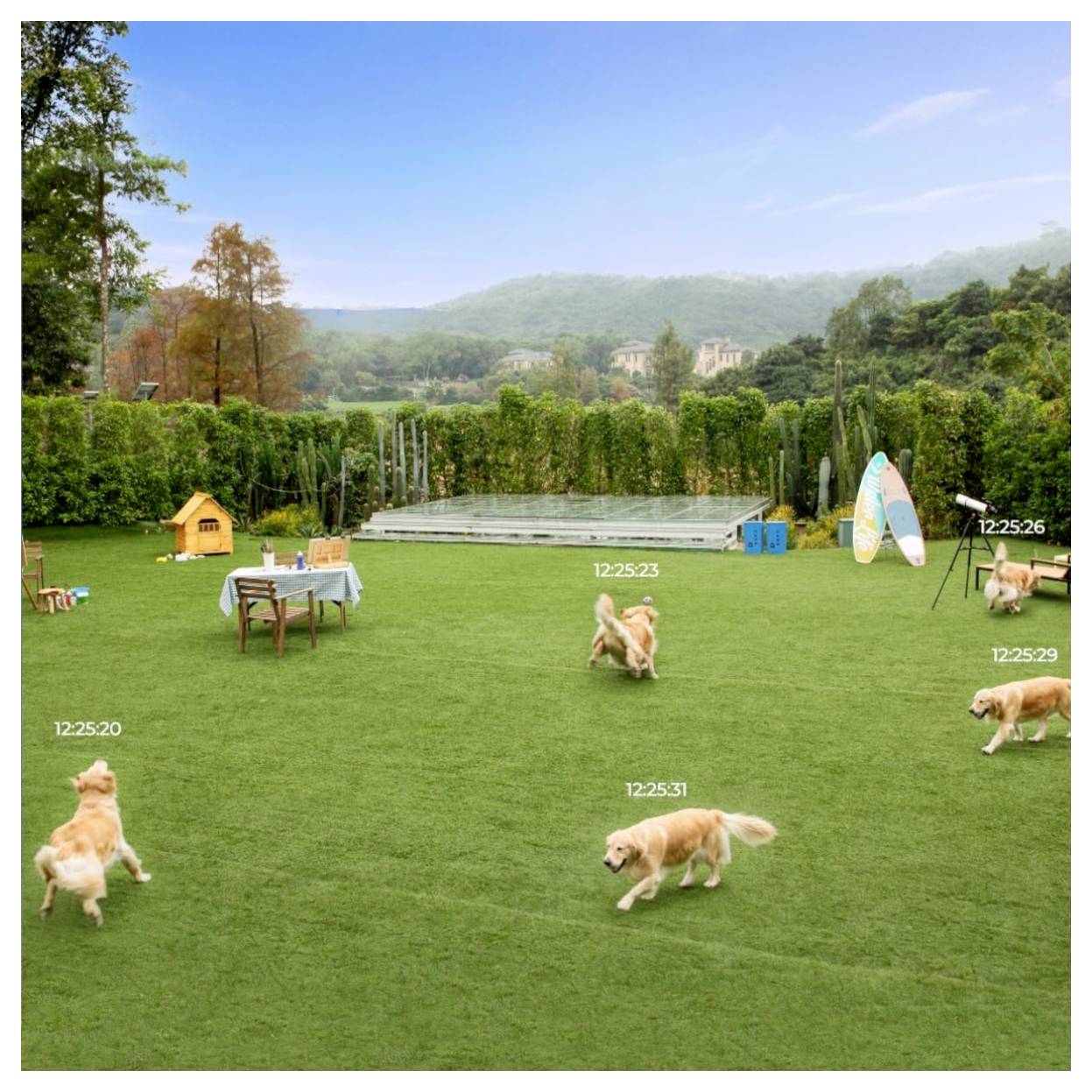

Innovative motion detection and "motion track"
The Motion Track feature records a 15-second track of moving objects and displays them in a single image, including a time stamp. The feature provides real-time notifications and alerts about events so you can respond in time.

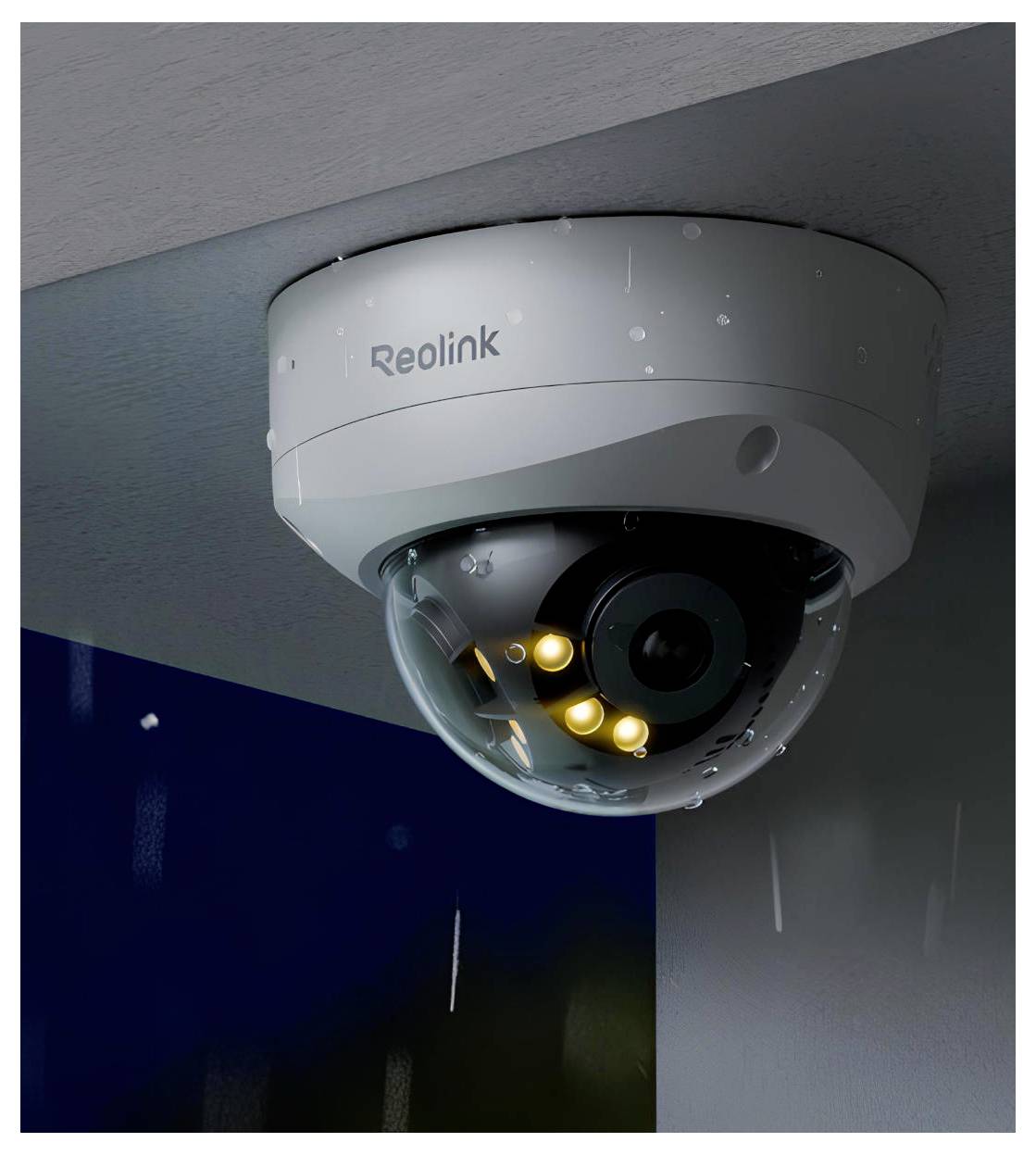

Colour night vision with F1.6 aperture
The camera delivers brilliant color images even in darkness. The large F1.6 aperture enables high sensitivity to light, while integrated spotlights provide detailed, true-to-color night vision. The lighting can be permanently active or can only be switched on automatically when movement is detected.

Simple and secure installation
The Power-over-Ethernet technology (PoE) enables an easy installation via only one cable for power supply and data transfer. This ensures a stable connection and a clean, professional installation.*

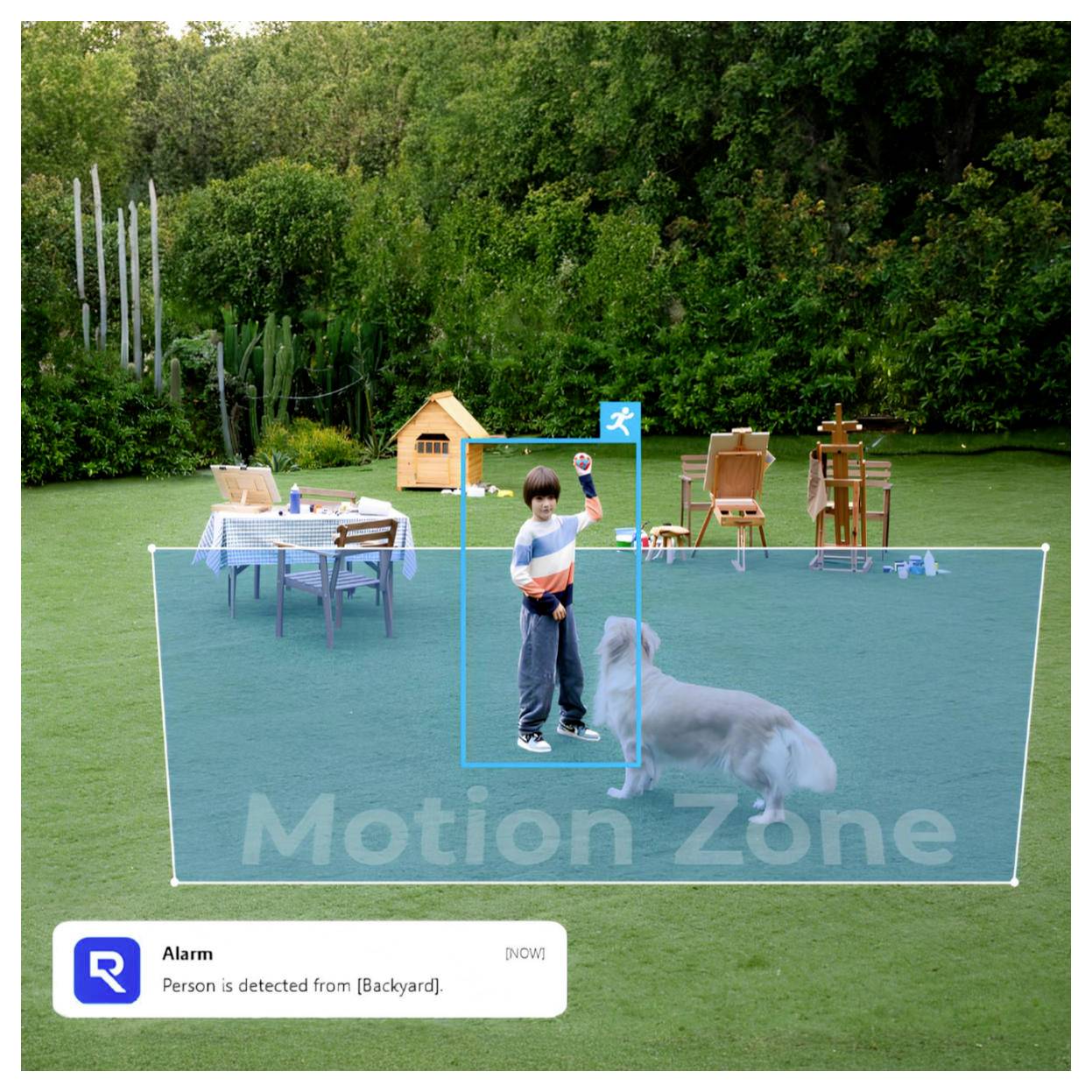

Intelligent detection and alarm
Thanks to integrated AI technology, the camera detects movements of persons, vehicles and animals precisely and sends you real-time warnings. This function can be used, among other things, to take snapshots of cars or other objects passing by quickly and send them via email or FTP server. As soon as motion is detected, you will be immediately notified by push message and email. The detection sensitivity can be set to trigger the warnings very precisely.

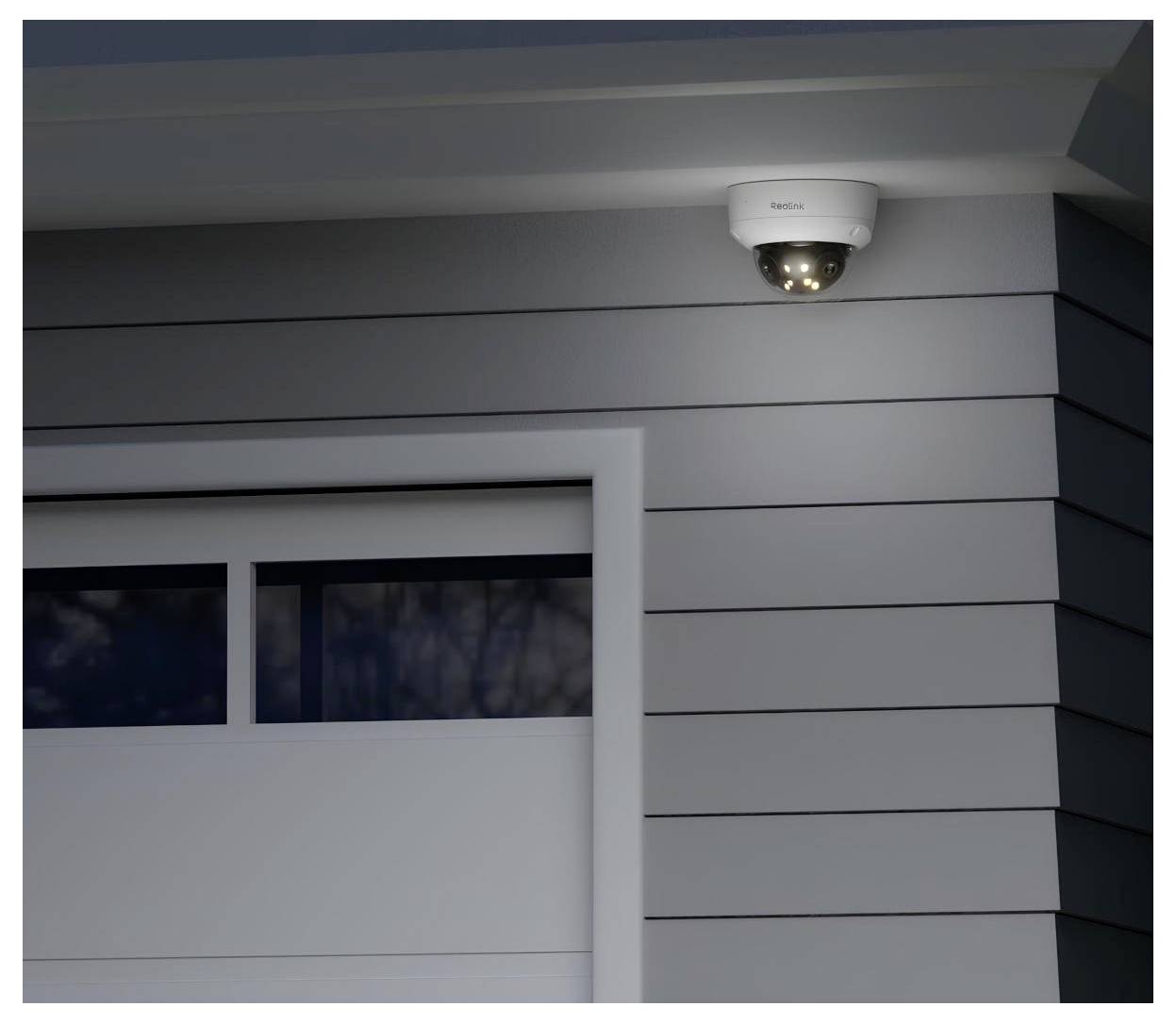

Double deterrent for more security
In-built spotlights and a loud siren effectively against intruders. Suspicious movements activate the lights and trigger an audible alarm – for active prevention and maximum security. The detection zones can be individually specified and it can be determined which alarm messages from which zone are to be received and which are not.
Two-way audio - advanced communication options
The two-way audio function enables real-time communication via the built-in microphone and the camera's speaker. You can talk to visitors or warn unauthorized people, regardless of where you are.

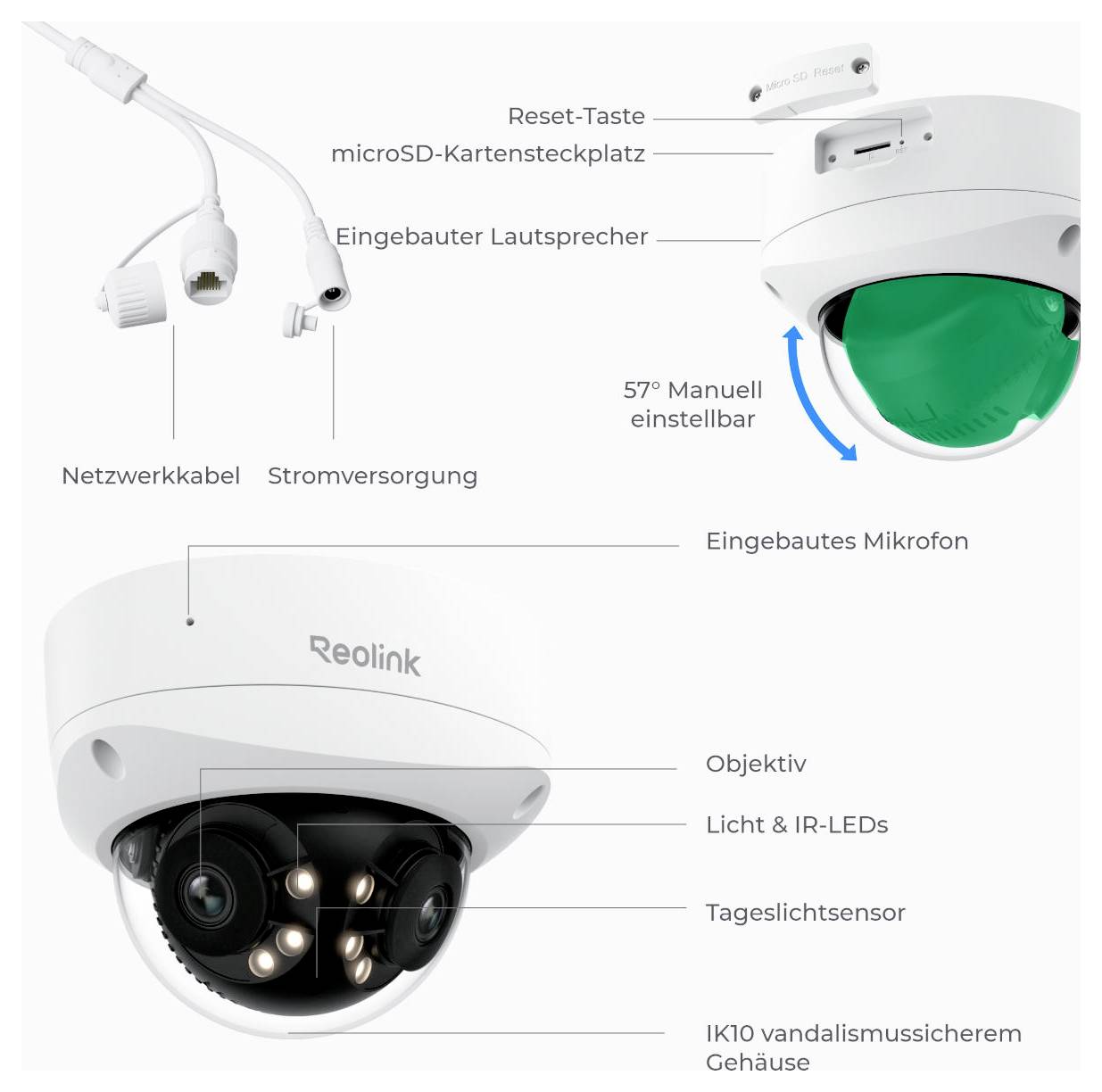

IK10 vandalism protection
With its robust, vandal-proof casing the Reolink DUO series P757 withstands even the hard impacts. The IK10 certification confirms protection against impacts and sabotage – perfect for use in public or exposed areas.

Versatile storage options
The Reolink DUO Series P757 supports 24/7 continuous, motion-triggered or scheduled recordings. The recordings can be stored on a microSD card (up to 512 GB), a Reolink network recorder (NVR)** or via FTP. The efficient H.264 video compression significantly reduces memory requirements and bandwidth – without loss of quality.

User-friendly Reolink APP and client software
With the free Reolink APP or the client software you have access to the camera at any time and anywhere. You receive real-time alarms, live views and can play the stored videos as needed. Google Assistant compatibility allows the camera to be controlled hands-free via voice commands to track live streaming of the camera on the Google Nest hub or a chromecast-enabled television.

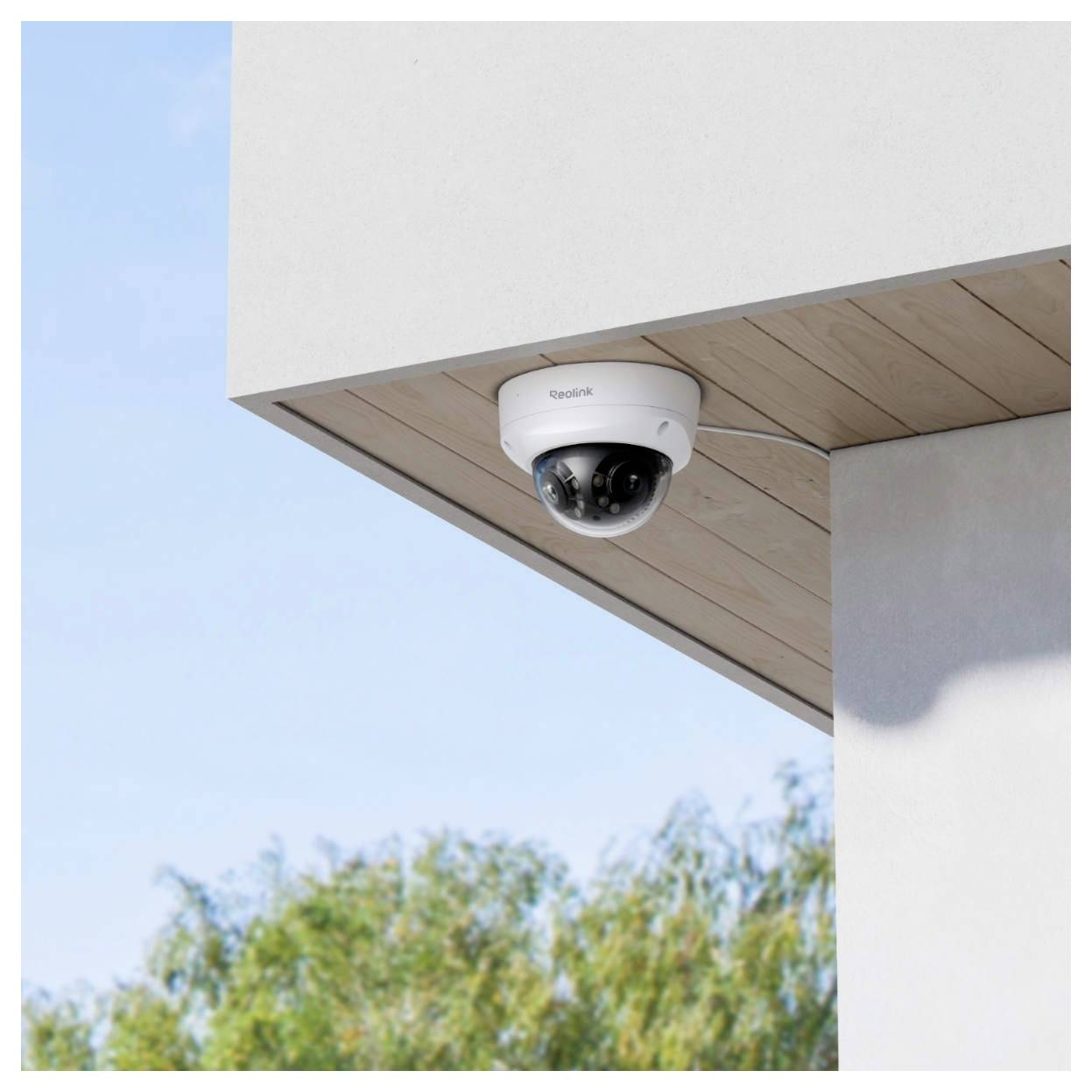

Weatherproof and durable
With IP67-protection class the camera remains reliably in use even under extreme weather conditions. Rain, snow or strong sun radiation do not affect neither function nor picture quality.

* A PoE switch or PoE injector or direct connection to the Reolink NVR is required.
** When selecting a network recorder (NVR), it is recommended to use the Reolink NVR for better compatibility.


This text is machine translated.

Scope of delivery

  • Reolink Duo series P757 surveillance camera
  • Network cable, 1m
  • Quick guide

Hints

A PoE switch or PoE injector or direct connection to the Reolink NVR is required.
When selecting a network recorder (NVR), it is recommended to use the Reolink NVR for better compatibility.
