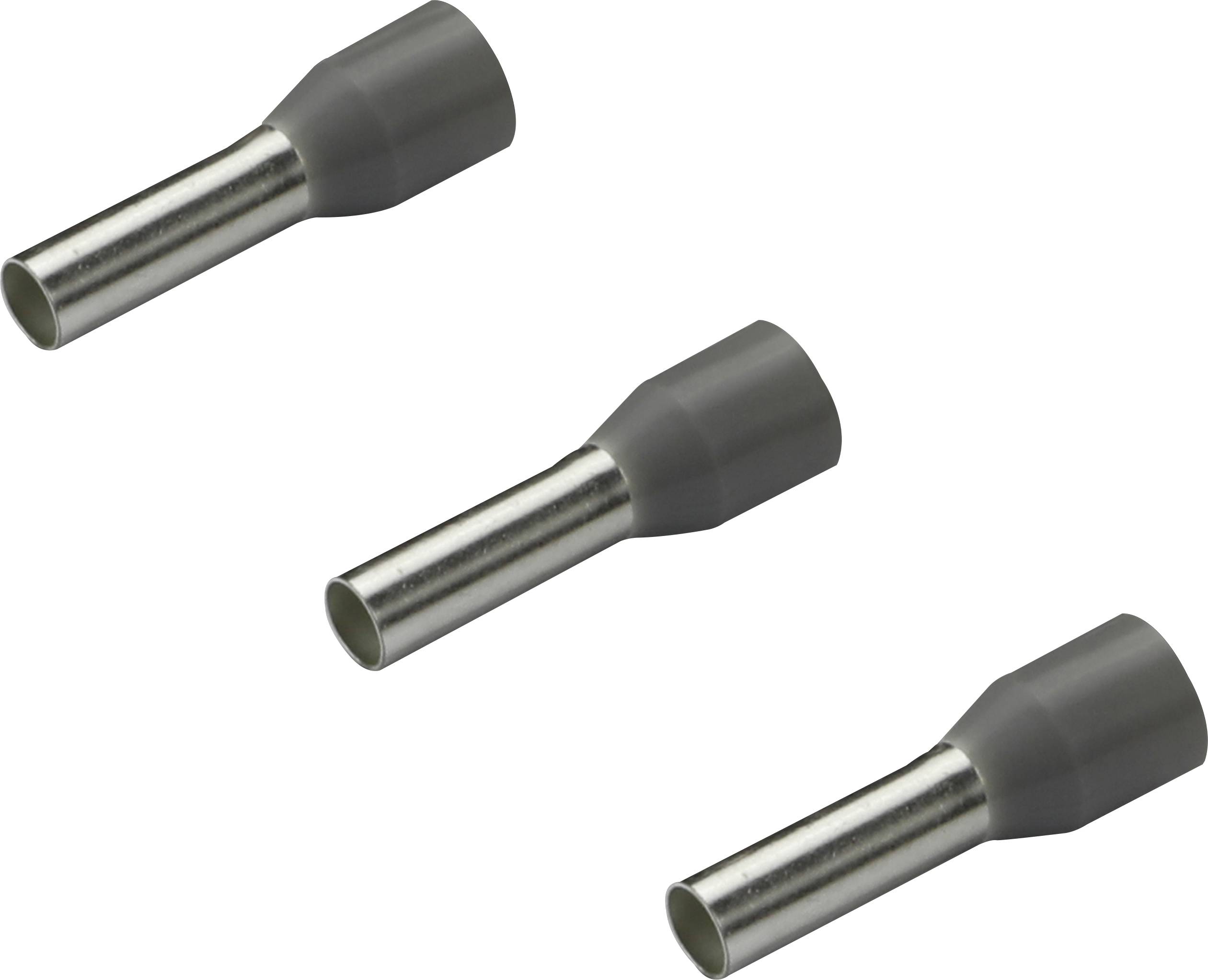

Rittal 4050.735 Ferrule 4 mm² Partially insulated Grey 500 pc(s)
EAN:
Part number:
Item no:
Product type
Ferrule
Cross section per core
4 mm²
Sleeve length
10 mm
Insulation type
Partially insulated
Content
500 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 500 pc(s))
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 4 Set(s) available
Highlights & Details
Wire-end sleeve
- Grey
Our service for you
Technical specifications
- Product type
Ferrule
- Cross section per core
4 mm²
- Sleeve length
10 mm
- Insulation type
Partially insulated
- Factory colour
Grey
- Content
500 pc(s)
- Contact material
Cathode copper, tin plated
- AWG max.
12
- Manufacturer part #
4050.735
- Industrial packaging
Yes
- Insulation material
Polypropylene (PP)
- Cross-section x Length
4 mm² x 10 mm
- RoHS-compliant
Yes
- Features
for automatic strippers/crimpers
for manual pre-fab
- Temperature range
+105 °C
- Type
AS 4050.735
Documents & Downloads
Datasheet
Datasheet 1588226 Rittal 4050.735 Ferrule 4 mm² Partially insulated Grey 500 pc(s)
User & Safety Instructions
User & Safety Instructions 1588226 Rittal 4050.735 Ferrule 4 mm² Partially insulated Grey 500 pc(s)
Description
Hints
Can also be used according to DIN color code.
