ElectromechanicsHousingsSwitchboard PeripheralsElectrical Enclosure Thermostats

Siemens Mechanical thermostat 8MR2170-1A 230 V (L x W x H) 38 x 50 x 67 mm 1 pc(s)

A white electric temperature controller with a black rotary knob and scale. Displays temperatures from 0 to 60 degrees Celsius.

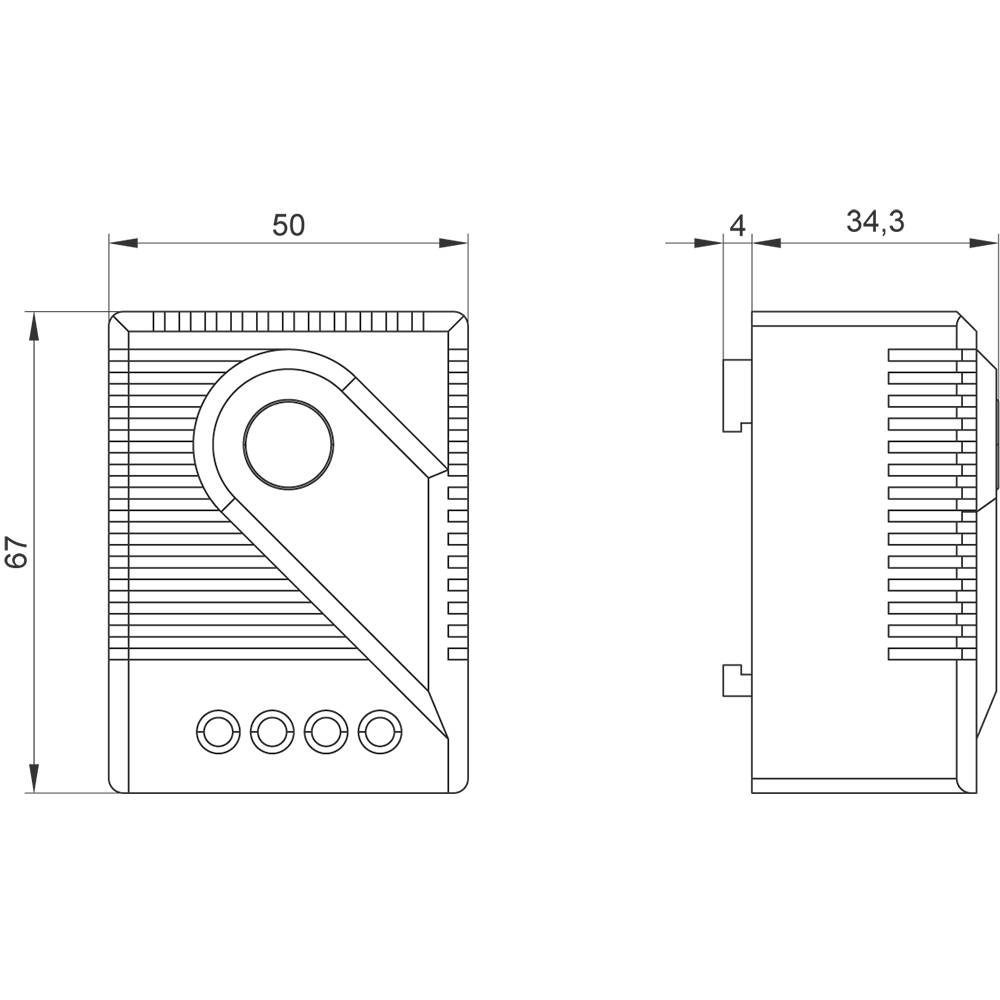

Technical drawing of a rectangular device with precise dimensions in millimetres. Front view shows details and buttons, side view shows depth.
1/2
Image similar
Product type
Mechanical thermostat
Switching current (max.)
10 A
Operating voltage
230 V
Type
8MR2170-1A
Mounting type
Clamp
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 26 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 53.99 / piece)
€ 53.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Material: plastic
  • Weight: 75 g
  • Mechanical life: 100000
Product type

Mechanical thermostat

Type

8MR2170-1A

Mounting type

Clamp

Switching current (max.)

10 A

Operating voltage

230 V

Max. operating voltage

230 V

Operating voltage

230 V (max)

Length

38 mm

Width

50 mm

Height

67 mm

Dim

(L x W x H) 38 x 50 x 67 mm

IP20

RoHS-compliant

Yes

Clamp mounting

230 V

FALSE

Change-over contact

10 A

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1751118 Siemens Mechanical thermostat 8MR2170-1A 230 V (L x W x H) 38 x 50 x 67 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1751118 Siemens Mechanical thermostat 8MR2170-1A 230 V (L x W x H) 38 x 50 x 67 mm 1 pc(s)

Description

mech. thermostat NC contact 10 to 60 °C
