Start
ElectromechanicsHousingsSwitchboard PeripheralsElectrical Enclosure Thermostats

Siemens Thermostat 8MR2170-1E 250 V (L x W x H) 46 x 50 x 67 mm 1 pc(s)

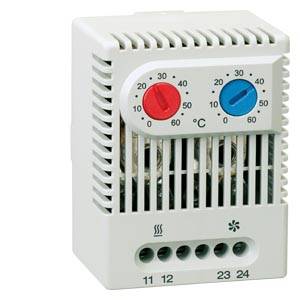

A white temperature controller with two rotary knobs. The left knob is red, the right blue. Temperature range in degrees Celsius.
Image similar
Product type
Thermostat
Operating voltage
250 V
Type
8MR2170-1E
Mounting type
Clamp
Max. operating voltage
250 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 48.99 / piece)
€ 48.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Material: plastic
  • Weight: 98 g
  • Mechanical life: 100000
Product type

Thermostat

Type

8MR2170-1E

Mounting type

Clamp

Operating voltage

250 V

Max. operating voltage

250 V

Operating voltage

250 V (max)

Length

46 mm

Width

50 mm

Height

67 mm

Dim

(L x W x H) 46 x 50 x 67 mm

IP20

RoHS-compliant

Yes

Clamp mounting

250 V

FALSE

Normally closed contact and normally open contact

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1747923 Siemens Thermostat 8MR2170-1E 250 V (L x W x H) 46 x 50 x 67 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1747923 Siemens Thermostat 8MR2170-1E 250 V (L x W x H) 46 x 50 x 67 mm 1 pc(s)

Description

Twin thermostat 0 to 60 °C
