Name: SpeaKa Professional SP-TVC-1700 TV trolley 139,7 cm (55") - 254,0 cm (100") Floor stand, Tiltable, Motorised, Height-adj
Brand: SpeaKa Professional
SKU: 3742743
Availability: InStock

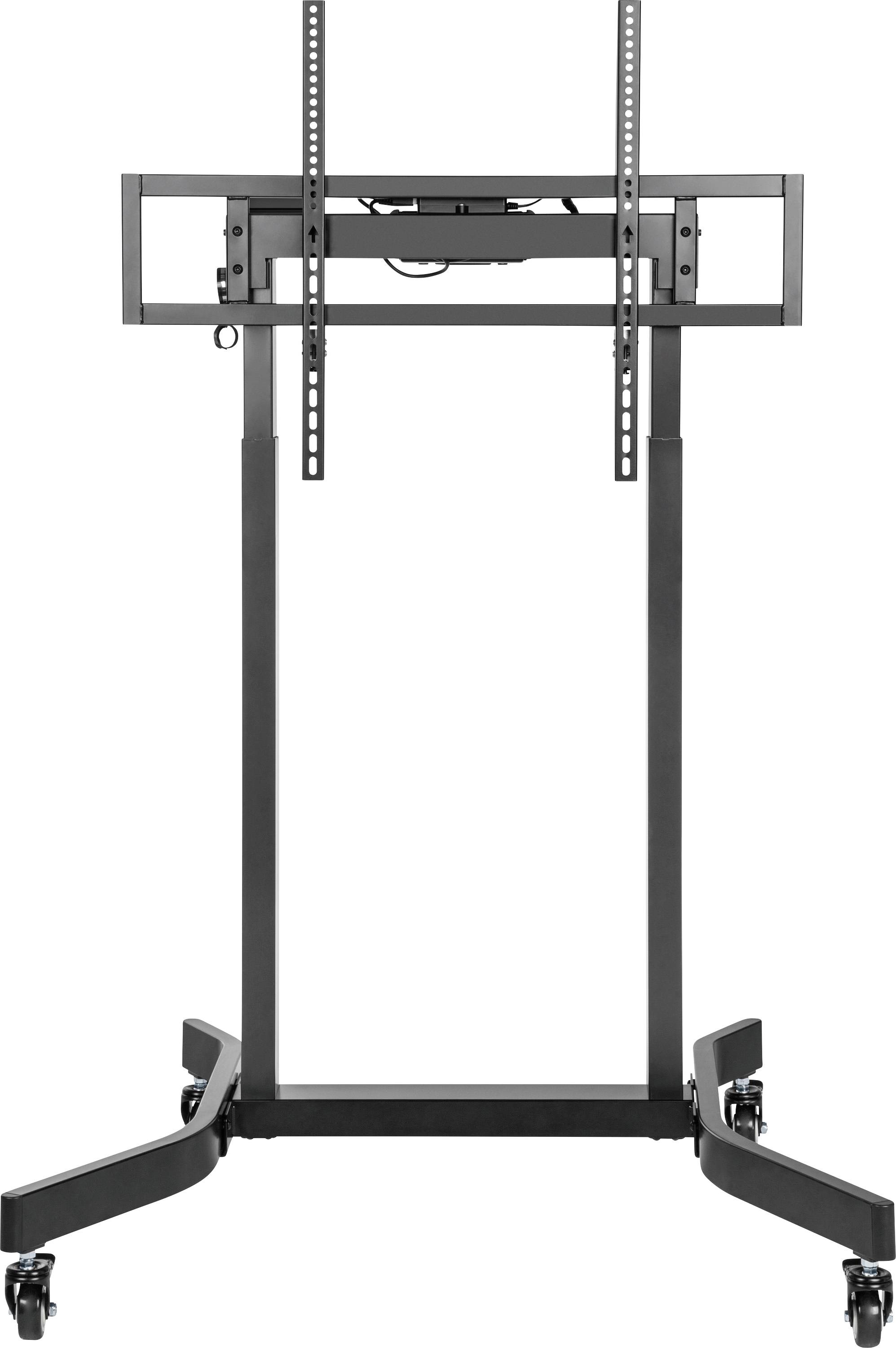

Mobile TV stand mount with adjustable vertical brackets and four wheeled feet, shown front view on a white background.

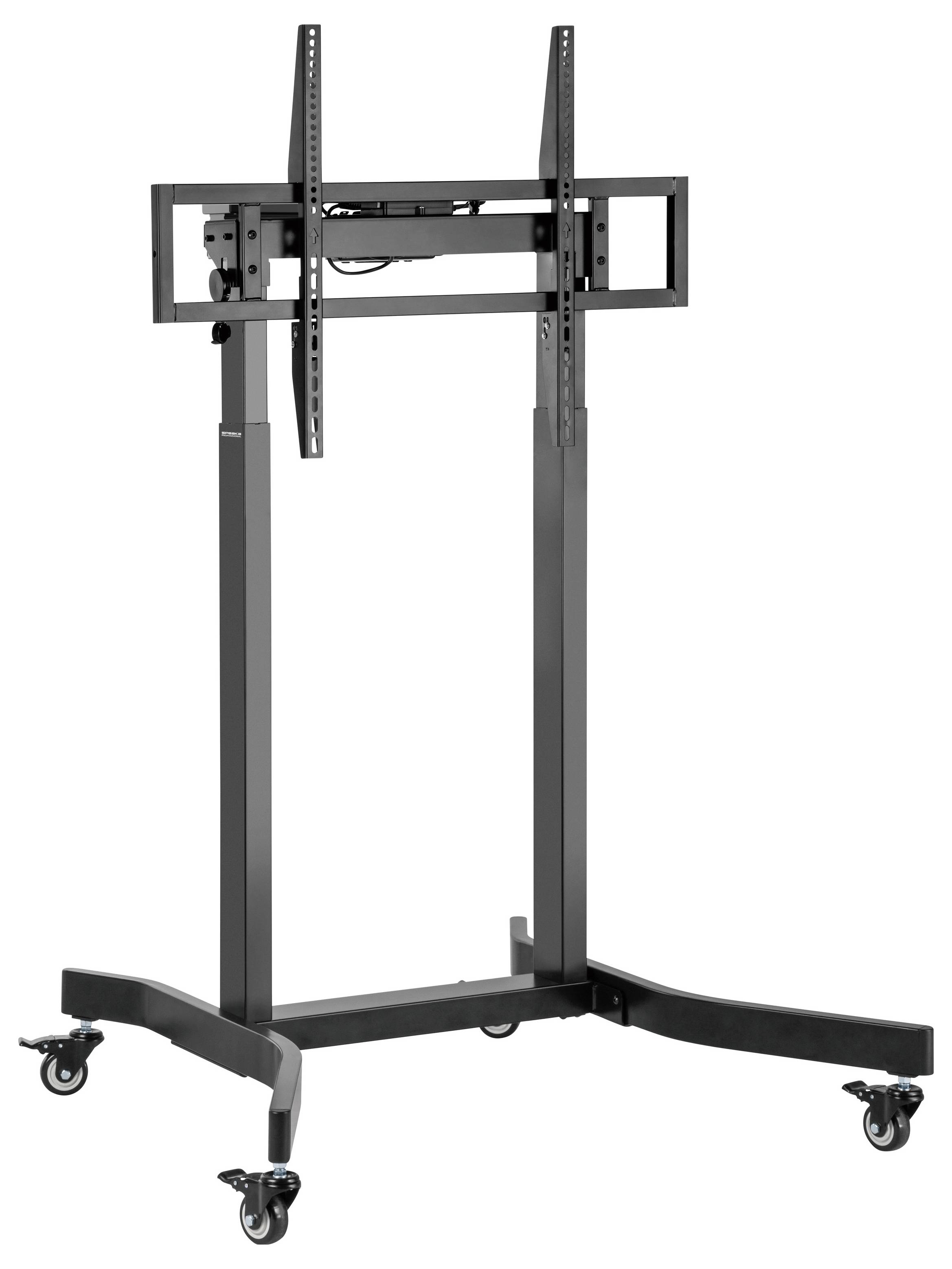

Black mobile TV stand with adjustable mount and four caster wheels, shown on a white background.

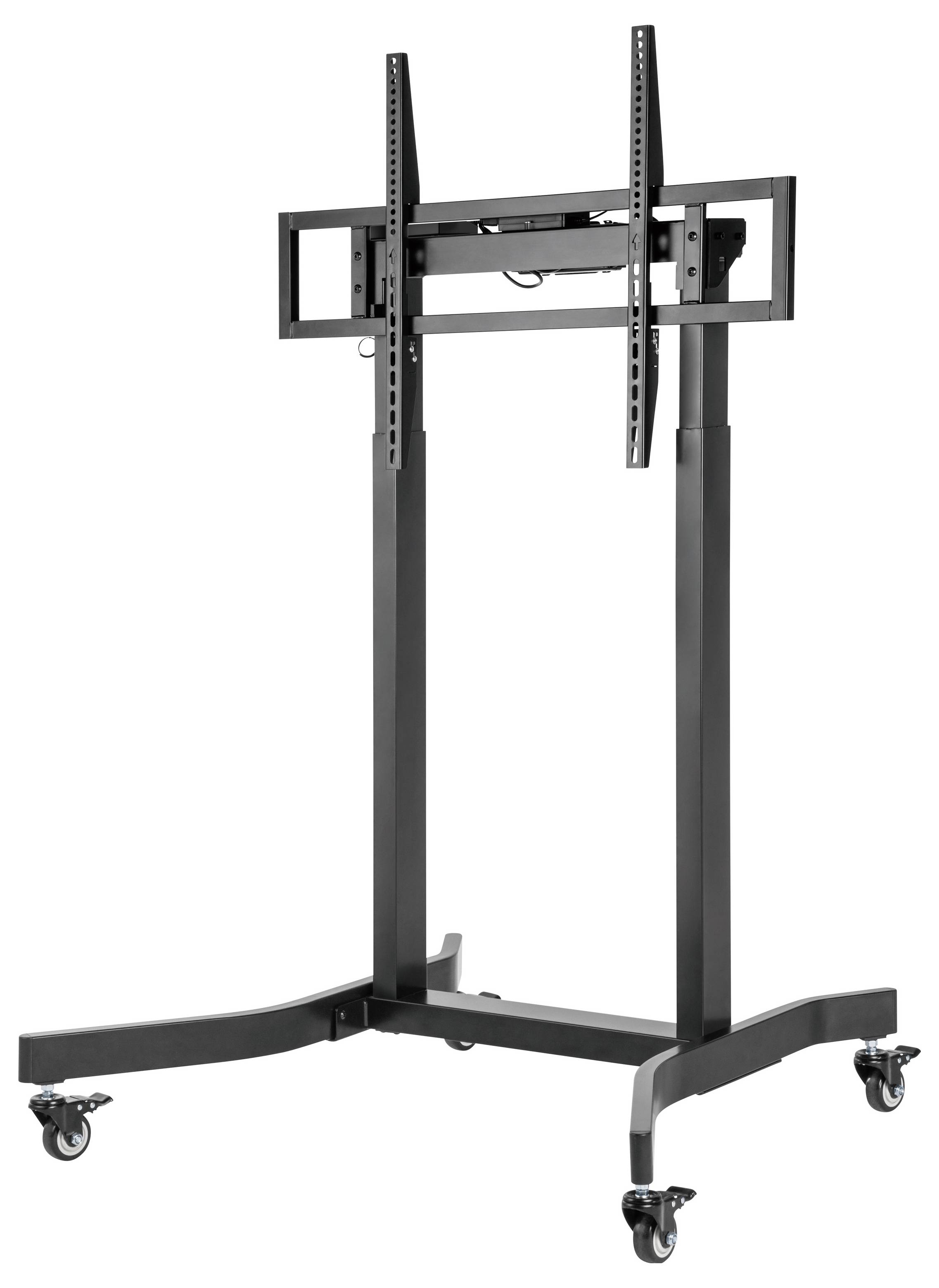

Mobile TV stand with adjustable mounting bracket and four caster wheels for rolling display support

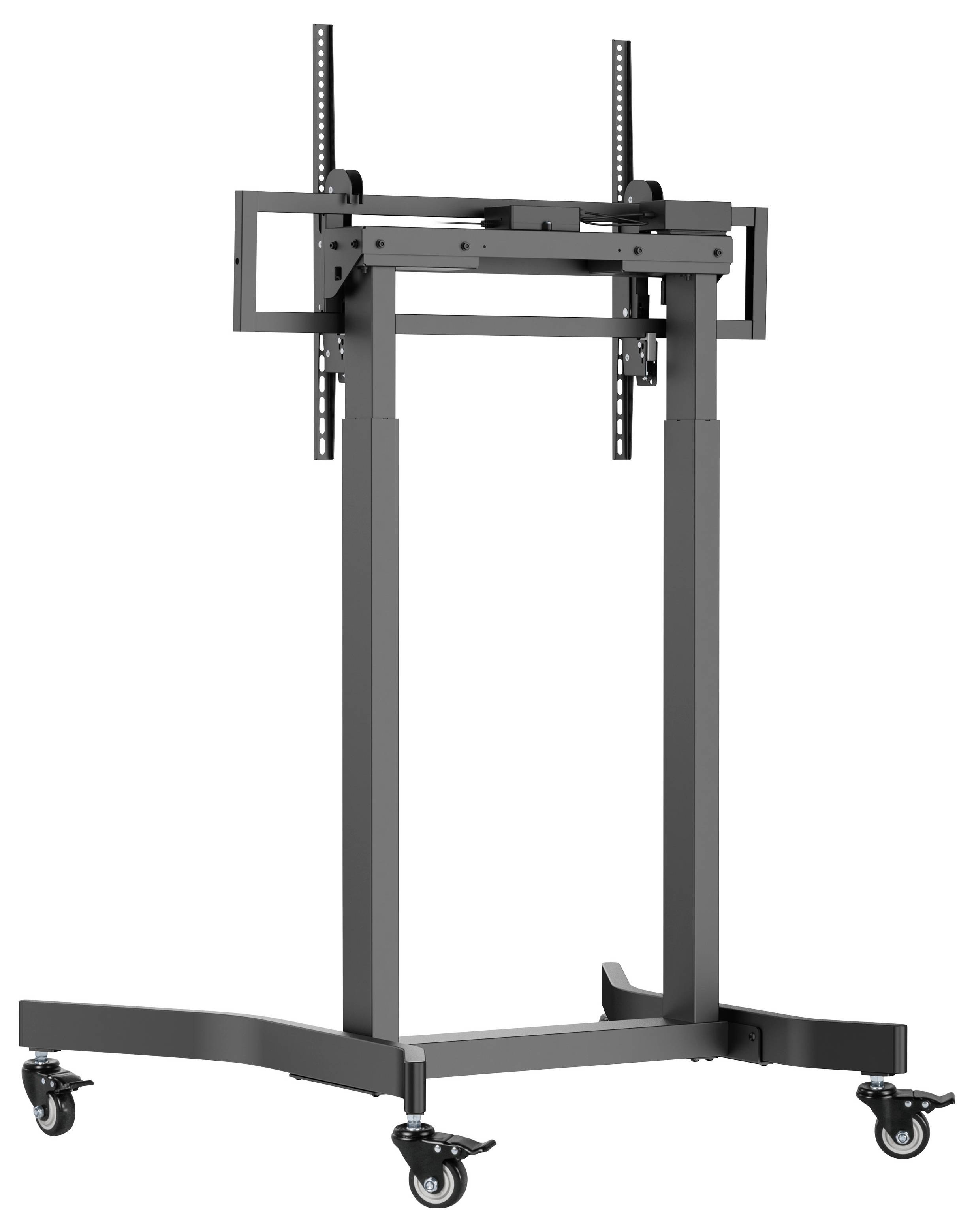

Mobile TV mounting stand with tall adjustable metal frame on four caster wheels and wide base arms for stability

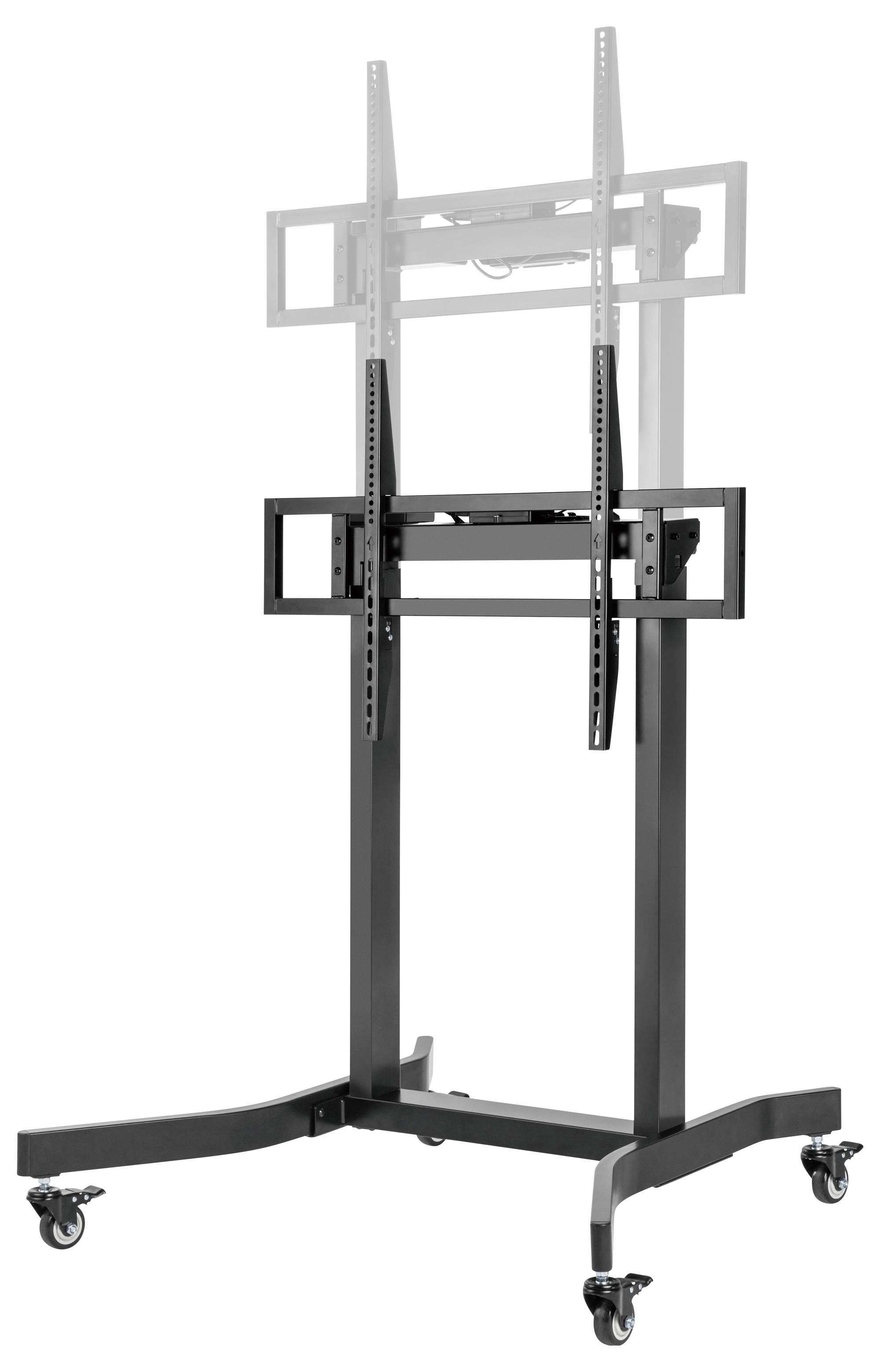

Mobile TV stand on caster wheels with adjustable mounting frame and vertical support posts, shown against a white background.

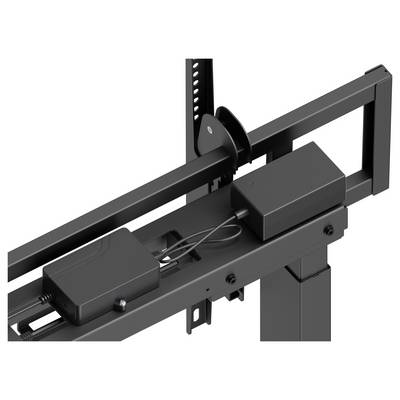

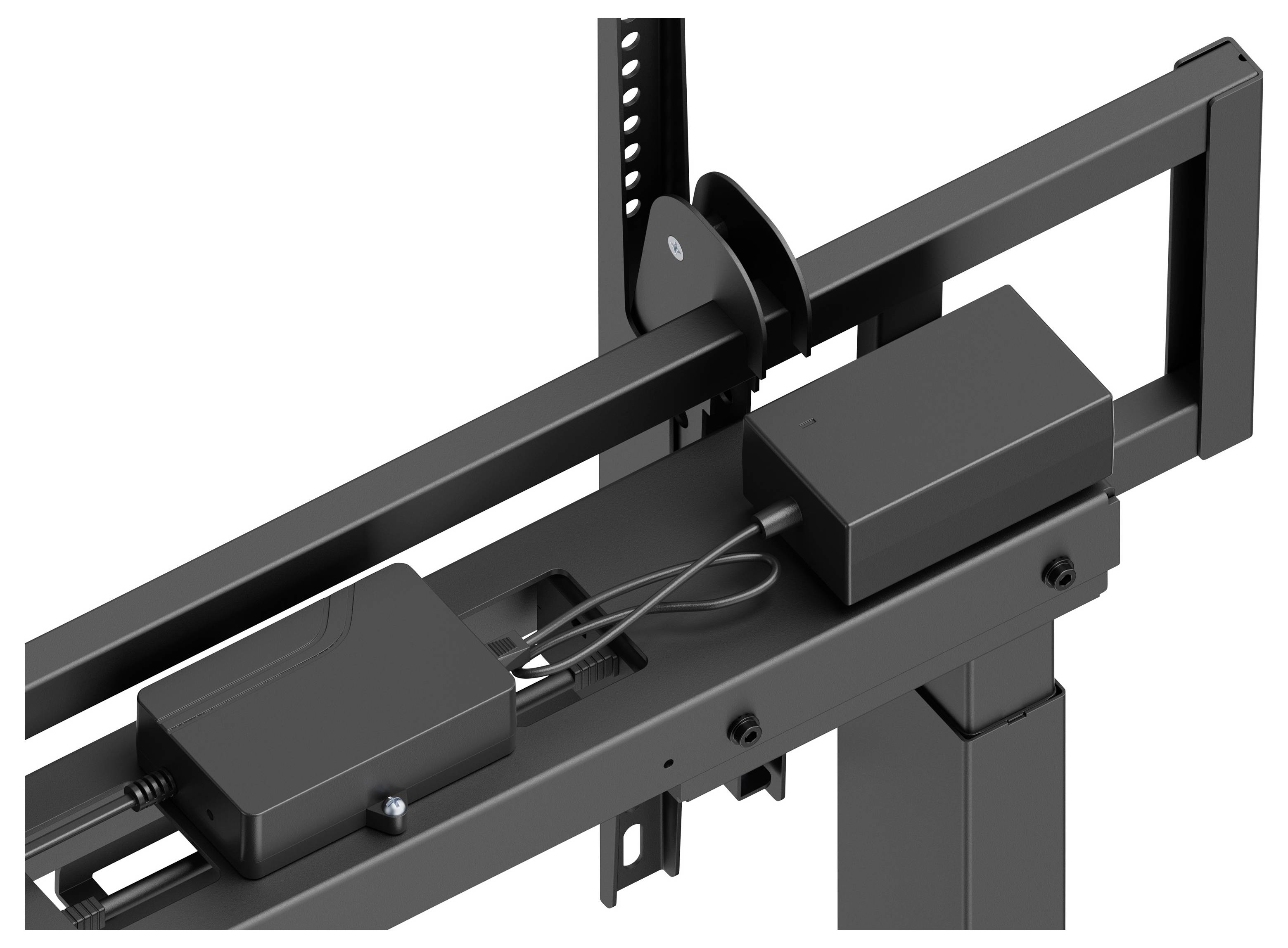

Close-up of a black mechanical mounting frame with rails, brackets, and two rectangular motor or control housings connected by cables.

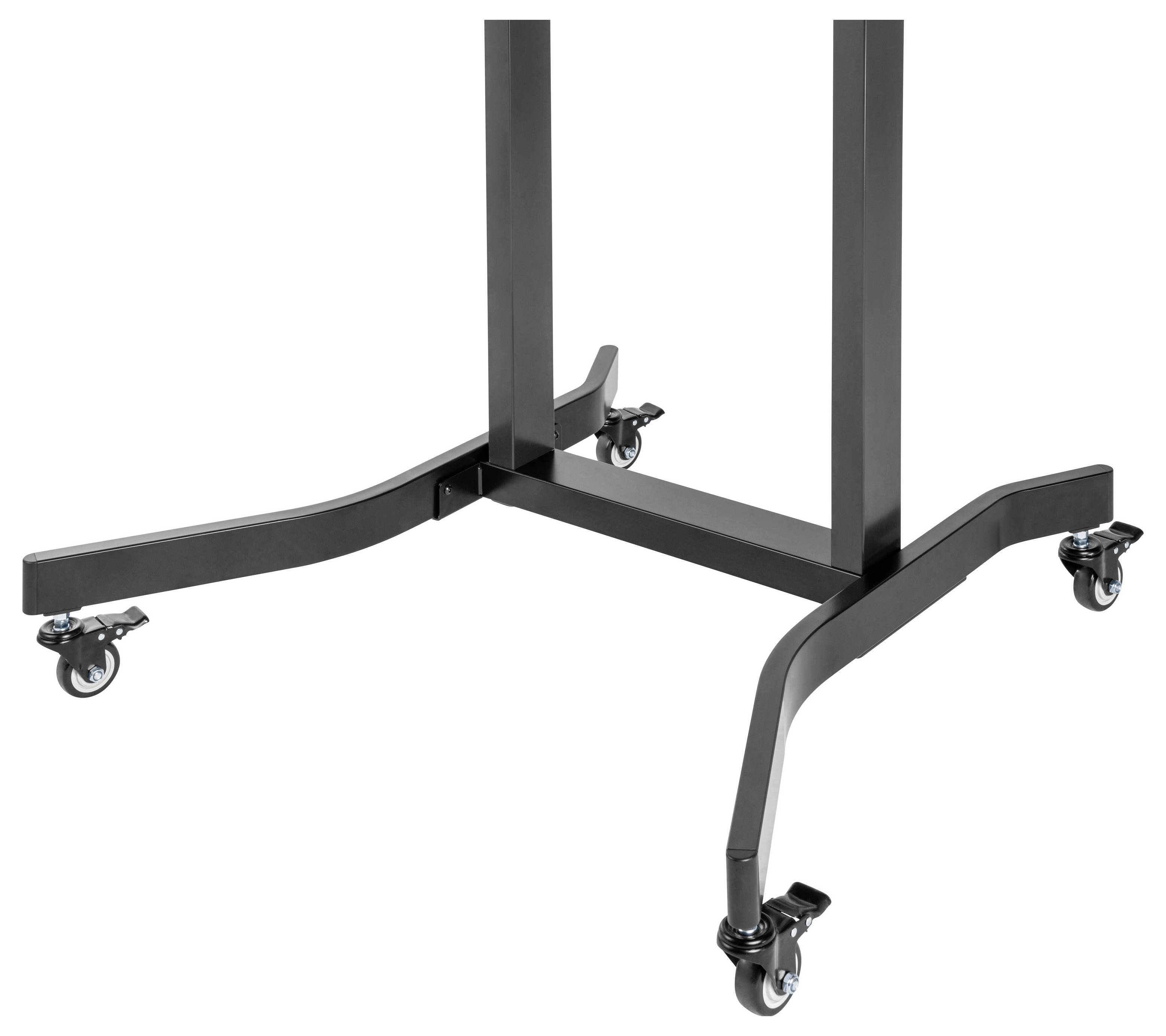

Black metal rolling base stand with four caster wheels and two vertical support posts on a white background.

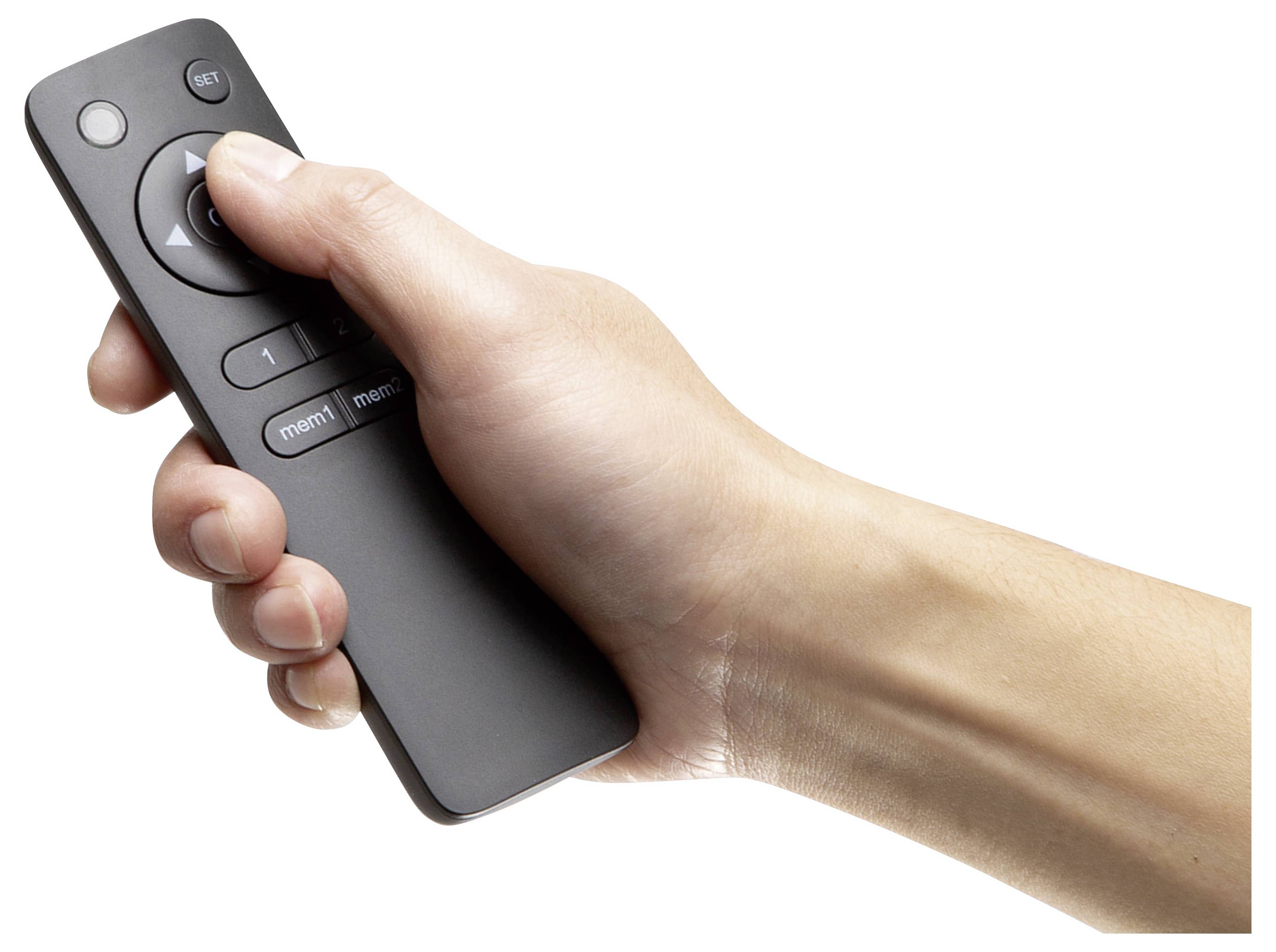

Hand holding a black TV remote, thumb pressing a navigation button.

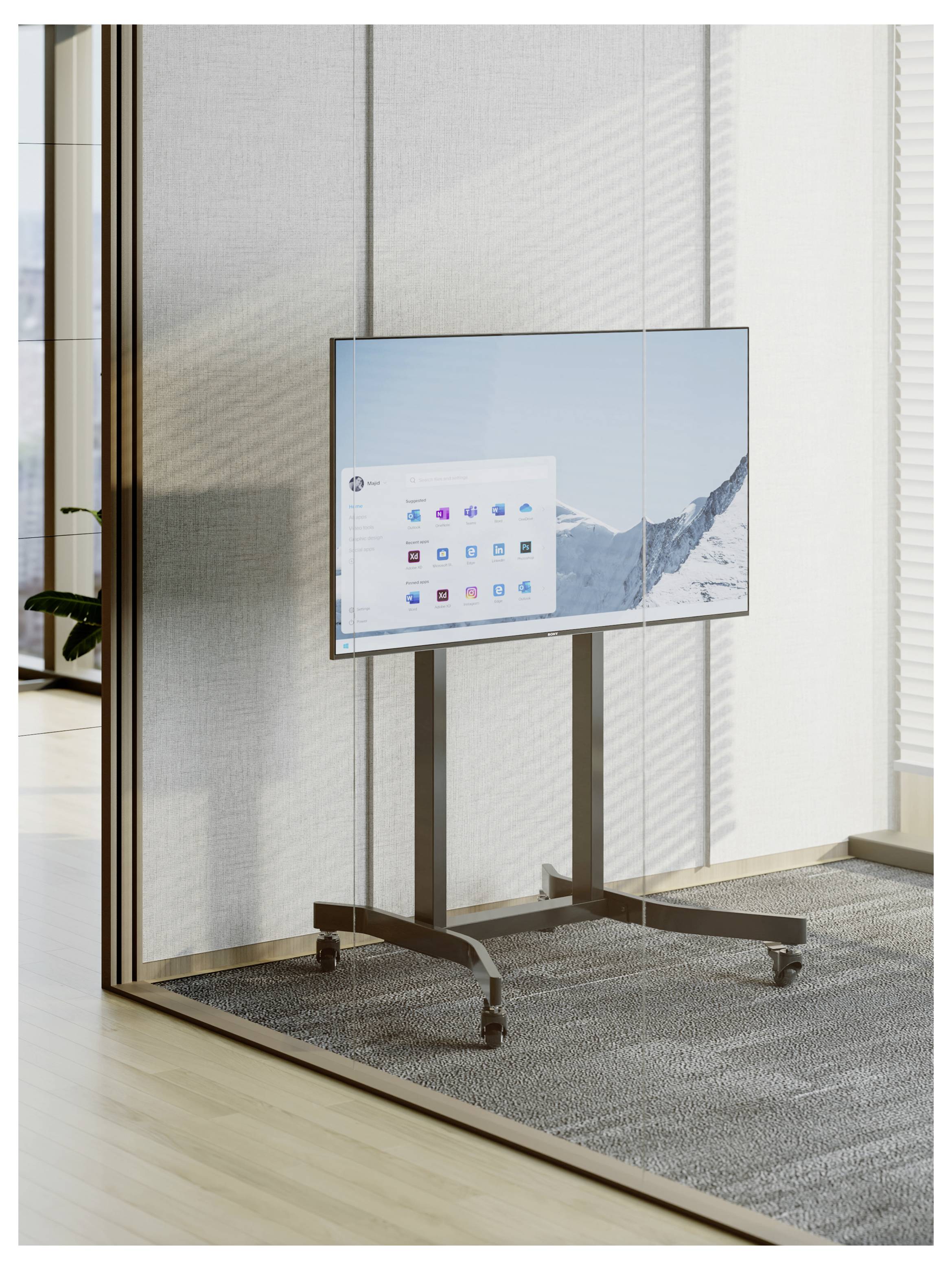

Flat-screen display on a wheeled stand in a modern office, showing a computer home screen with app icons over a snowy mountain wallpaper.

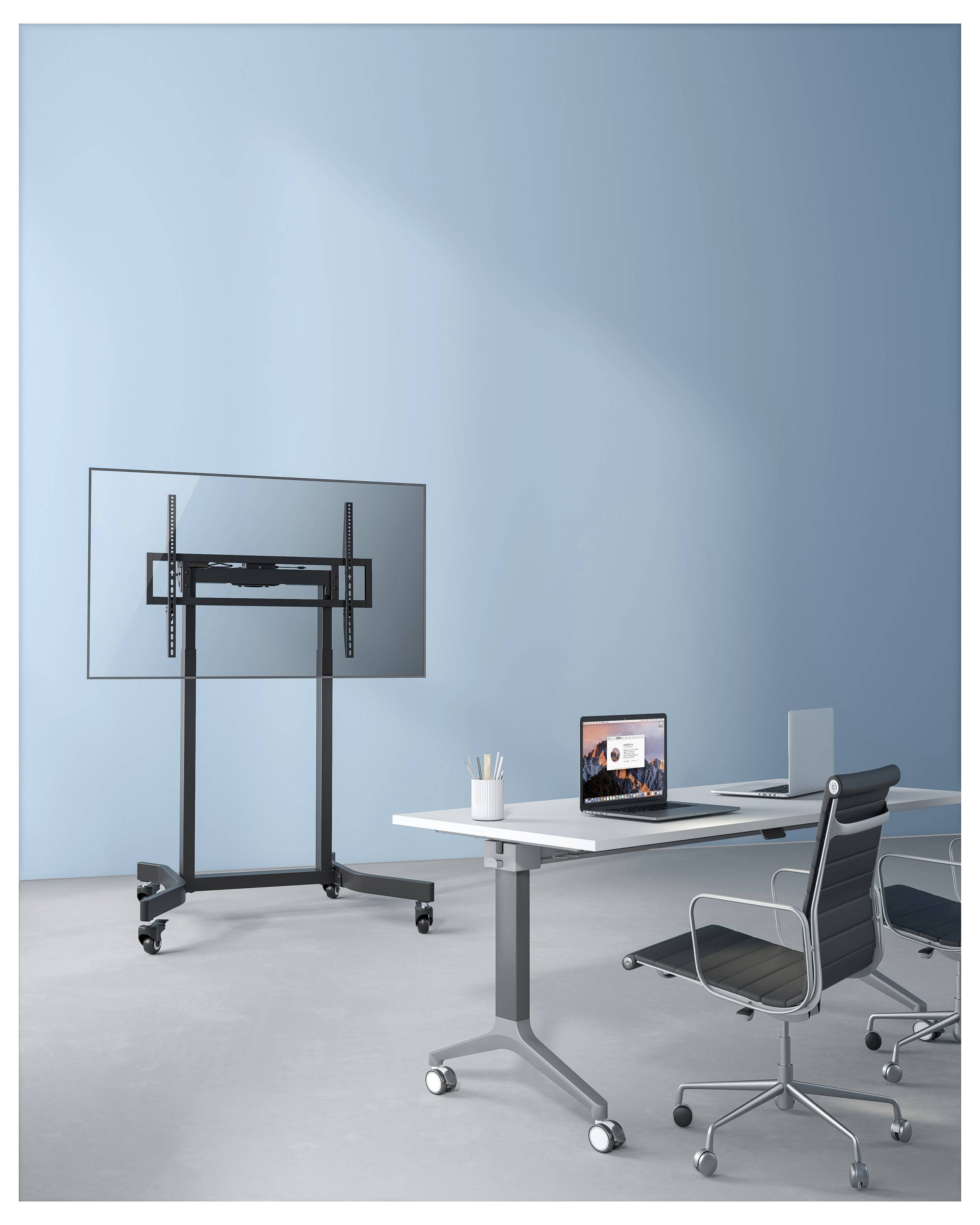

Modern office with a large wheeled TV stand, a desk with laptop and monitor, and two office chairs against a light blue wall.

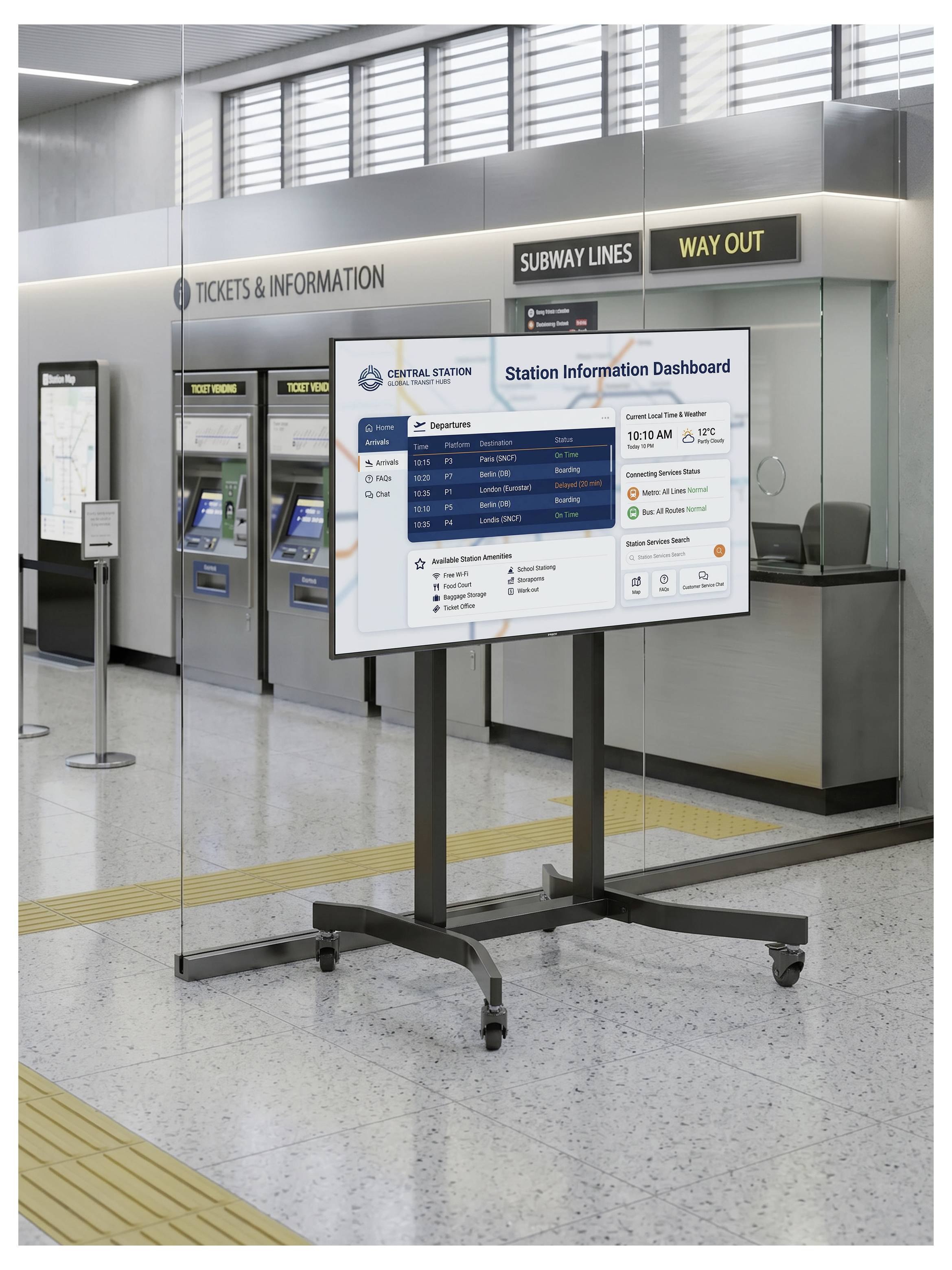

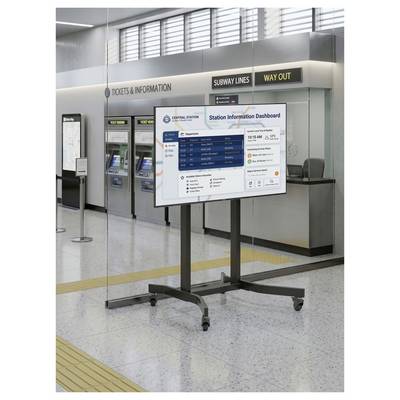

Digital station information dashboard on a wheeled stand in a subway station, showing departures and service updates near 'Tickets & Information' and 'Way Out' signs.

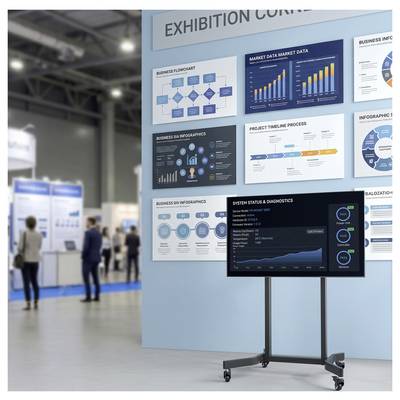

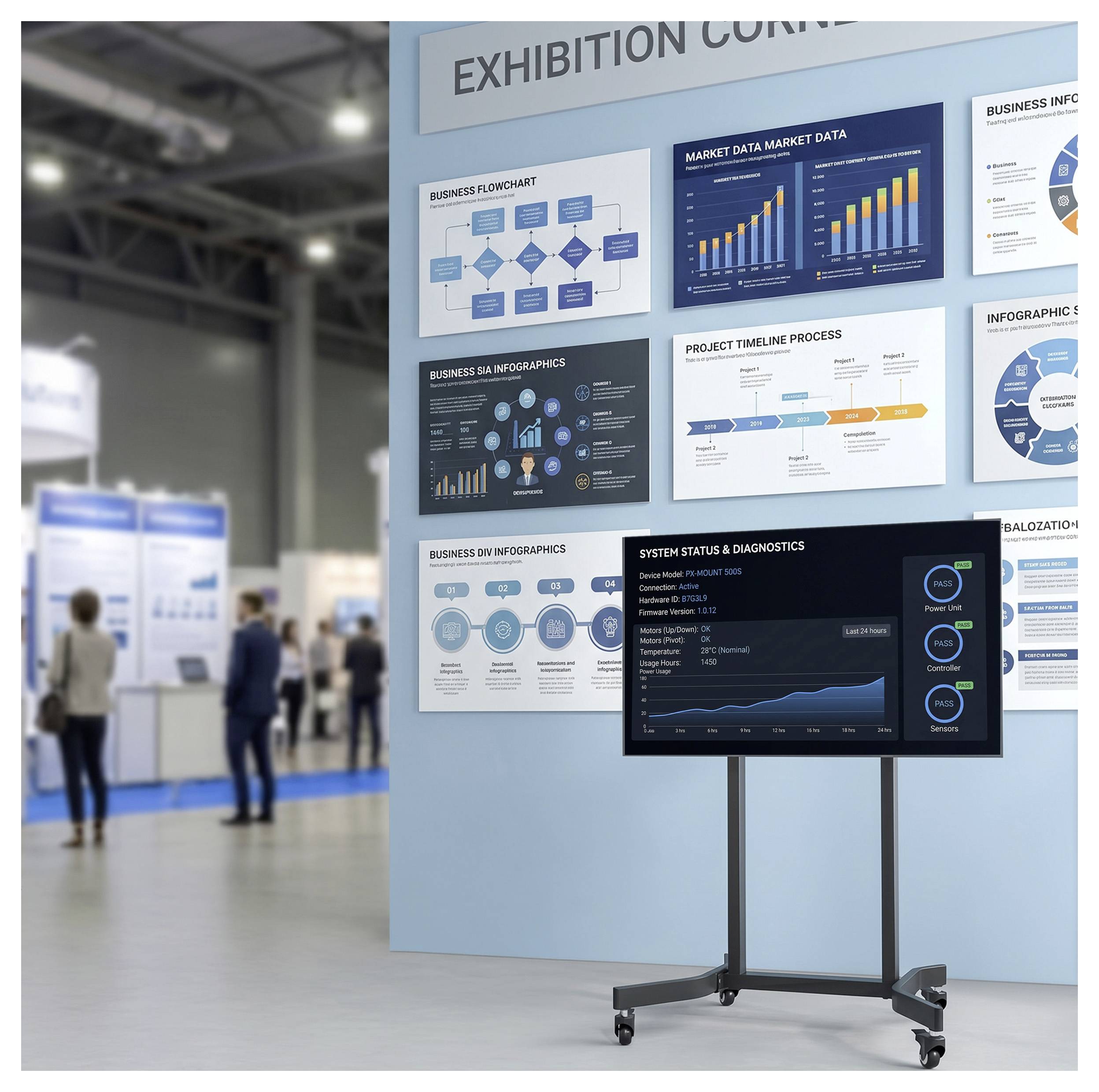

Exhibition booth display with multiple business infographics and charts on a wall-mounted board, plus a monitor showing 'SYSTEM STATUS & DIAGNOSTICS' dashboard on a stand.

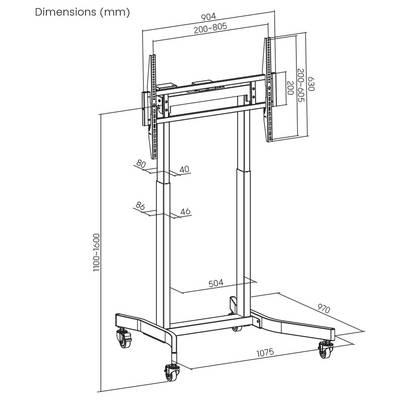

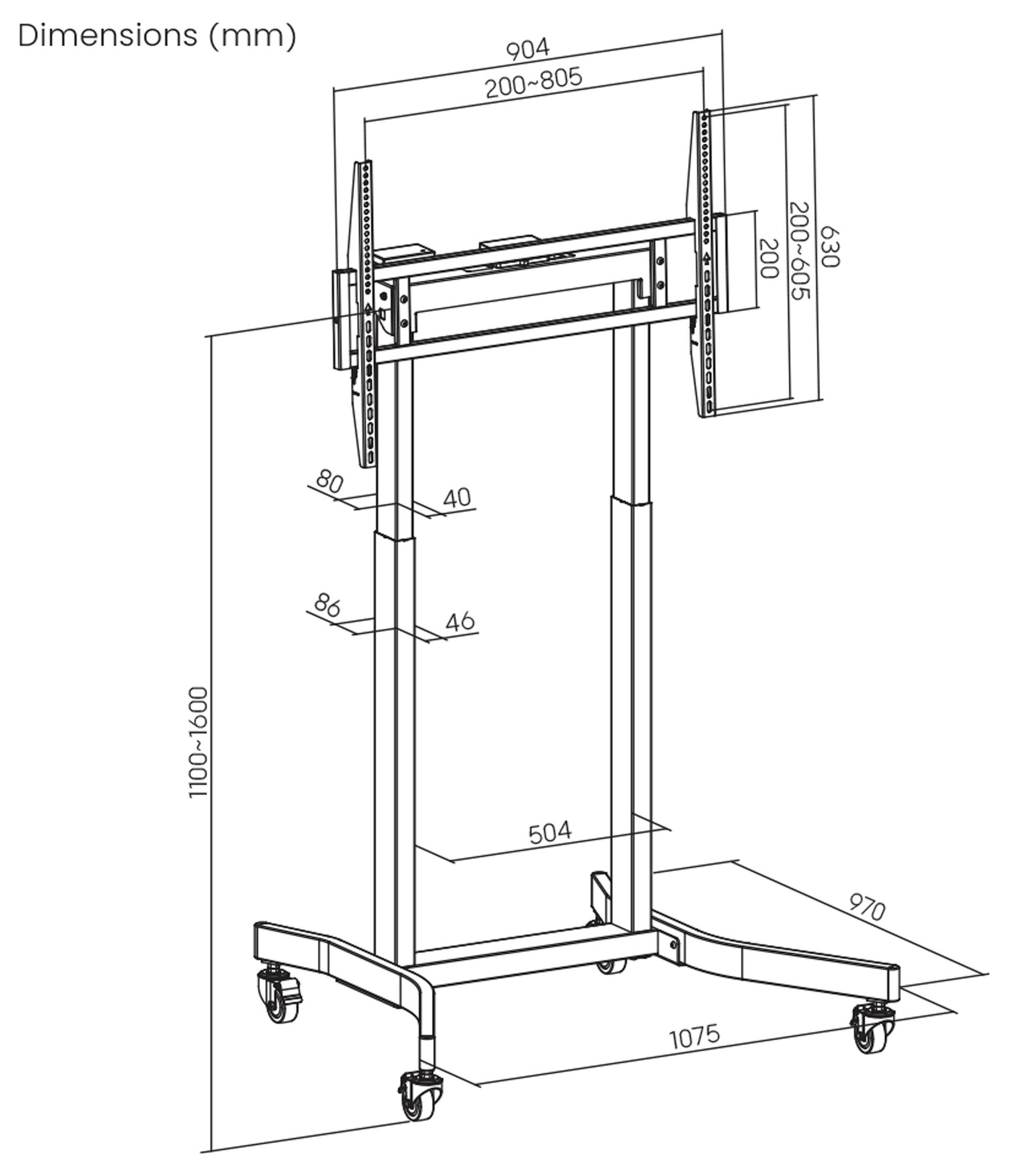

Dimensioned technical drawing of a mobile TV/display stand, showing adjustable bracket mounting and overall measurements in millimeters.

1/13

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

46 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 345.00 / piece)

€ 345.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SpeaKa Professional SP-TVC-1700 TV trolley

Holder type: Floor stand, Tiltable, Motorised, Height-adjustable
Supports VESA standards up to 800 x 600
Suitable for displays sized (range): 139,7 cm (55") - 254,0 cm (100")
Load capacity (max.) 120 kg
Multiple motors offer heavier lifting ability and increased stability
Free-tilting design enables easy forward or backward adjustment for better viewing angle and reduced glare
Heavy-duty casters with locking mechanism can be moved or stopped as needed
Remote control for easy movement
Strong lifting power with low noise level
Anti-Collision

Technical specifications

Product type: TV trolley

Suitable for: 139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
180,3 cm (71")
182,9 cm (72")
185,4 cm (73")
188,0 cm (74")
190,5 cm (75")
193,0 cm (76")
195,6 cm (77")
198,1 cm (78")
200,7 cm (79")
203,2 cm (80")
208,3 cm (82")
213,4 cm (84")
215,9 cm (85")
218,4 cm (86”)
228,6 cm (90")
248,9 cm (98")
254,0 cm (100")
Show more

Suitable for: 139,7 cm (55") - 254,0 cm (100")

Holder type: Floor stand
Tiltable
Motorised
Height-adjustable

Features: Anti-collision function

Max. load capacity: 120 kg

: No

: 200 x 200 mm
300 x 300 mm
300 x 200 mm
400 x 200 mm
600 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
800 x 400 mm
800 x 600 mm

Tilt range (bottom): 10°

Tilt range (top): 5°

Min. distance to floor/ceiling: 1100 mm

Max. distance to floor/ceiling: 1600 mm

Distance to wall (min.): 970 mm

Width: 1075 mm

Height: 1425 mm

Depth: 970 mm

Factory colour: Matt black

Weight: 36.6 kg

Dim: (W x H x D) 1075 x 1425 x 970 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742743 SpeaKa Professional SP-TVC-1700 TV trolley 139,7 cm (55") - 254,0 cm (100") Floor stand, Tiltable, Motorised, Height-adj

Description

The SpeaKa Professional SP-TVC-1700 TV-trolley is a motorized floor stand for displays from 139.7 cm (55") to 254.0 cm (100"). With a bearing capacity of 120 kg, it offers a reliable basis for large-format displays in conference or presentation area.

Motorised height adjustment
The height of the trolley can be adjusted to between 1100 and 1600 mm using the remote control supplied. The low-noise drive over several motors provides for stability, while an integrated anti-collision function offers safety when adjusting.

Adjustable viewing angle
The bracket supports VESA standards up to 800 x 600 mm. In order to reduce annoying light reflections and improve visibility, the display can be tilted from +5° to -10°.

Mobility at the place of installation
Equipped with heavy-duty rollers, the car can be flexibly positioned in different rooms. Mechanical locking of the rollers ensures a subsequent stability. For additional equipment there is a 430 x 335 mm large AV-component holder available.

This text is machine translated.

Features

"VESA compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 350x350, 400x400, 600x400, 800x400, 800x600
Max. weight capacity: 120 kg
Tilt angle: +5°~ -10° (bottom: 10°, top: 5°)
Adjustable height of TV mount: 925-1600 mm
Distance to wall: 970 mm

Scope of delivery

TV Trolley
Remote control (batteries not included)
Power adapter

Description

Features

"VESA compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 350x350, 400x400, 600x400, 800x400, 800x600
Max. weight capacity: 120 kg
Tilt angle: +5°~ -10° (bottom: 10°, top: 5°)
Adjustable height of TV mount: 925-1600 mm
Distance to wall: 970 mm
