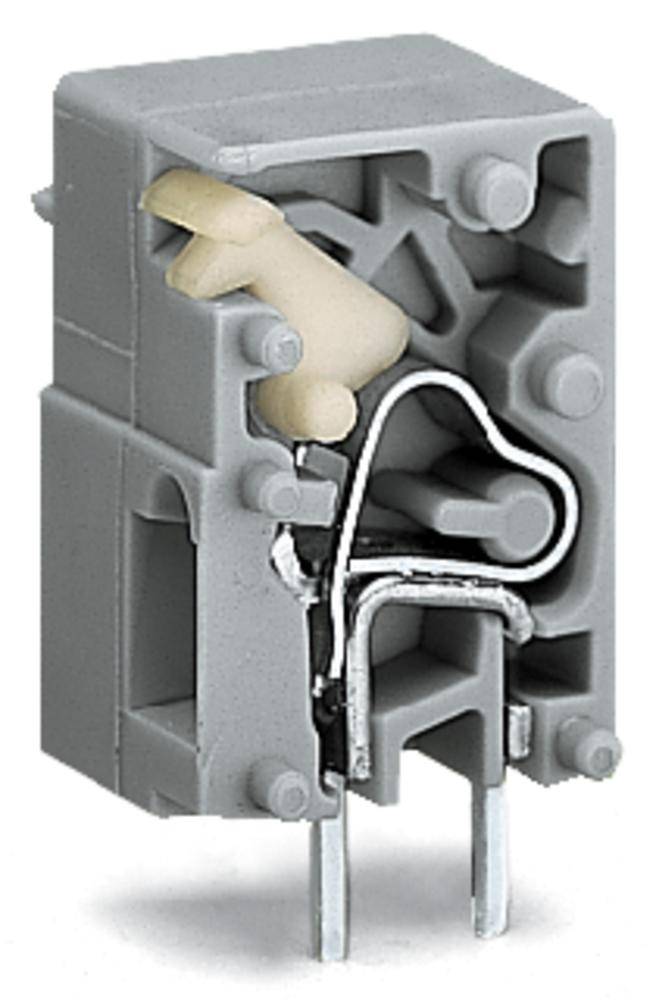

WAGO 741-903 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 2160 pc(s)
Product type
Spring-loaded terminal
CS
10 mm
Number of pins
1
Connection
Spring-loaded terminal
Print
Connector orientation
Parallel (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 2160 pc(s))
Total (€ 0.82 / piece)
€ 1,775.00
incl. VAT
14-day return policy included
Highlights & Details
Modular, panel feedthrough terminal block
- Content 2160 pc(s)
Technical specifications
- EINZELKLEMME GRAU RM 10 MM
- Type
741-903
- Product type
Spring-loaded terminal
- Features
+ CAGE CLAMP®
- CS
10 mm
- No. of rows
1
- Number of pins
1
- Series
741
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Actuation direction
Parallel (to the PCB)
- Manufacturer part #
741-903
- Industrial packaging
Yes
- Content
2160 pc(s)
- Nominal voltage
500 V
- Width
22.50 mm
- Height
12.80 mm
- Length
10.00 mm
Documents & Downloads
Datasheet
Datasheet 545277 WAGO 741-903 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 2160 pc(s)
User & Safety Instructions
User & Safety Instructions 545277 WAGO 741-903 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 2160 pc(s)
