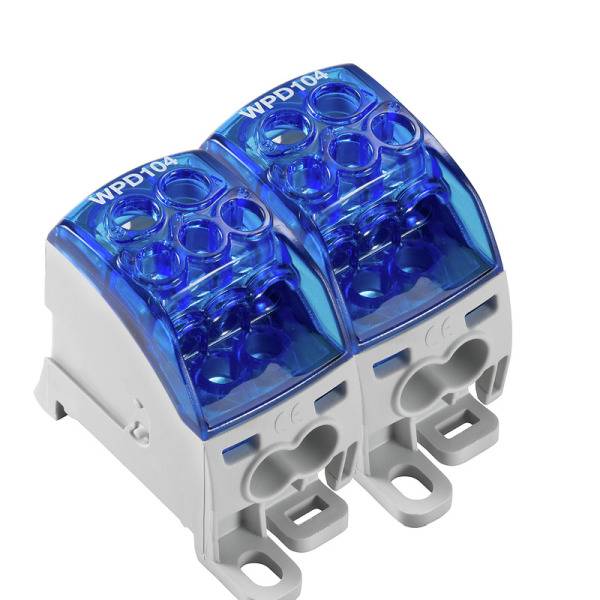

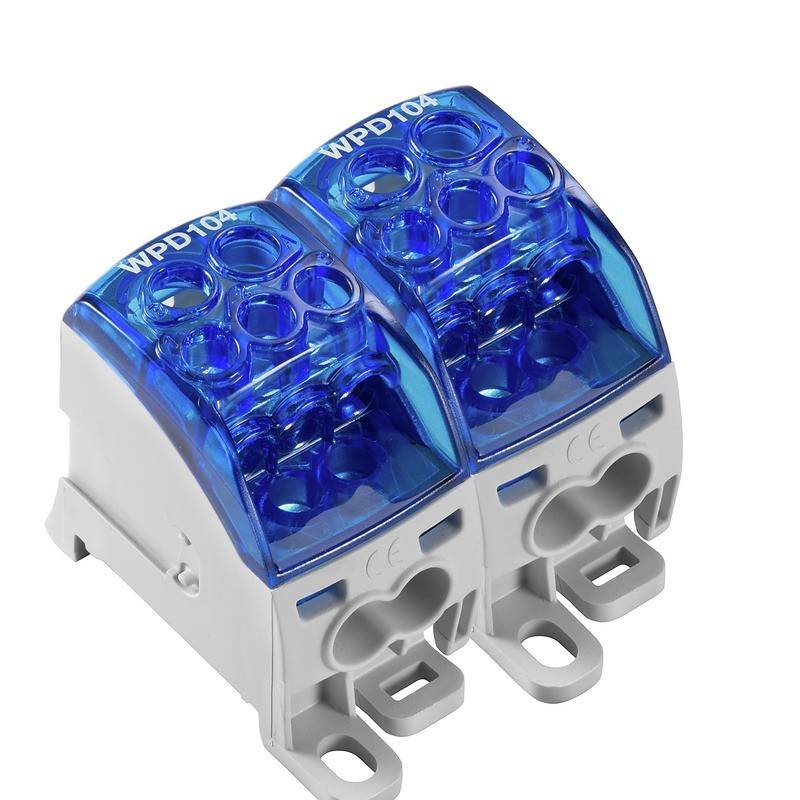

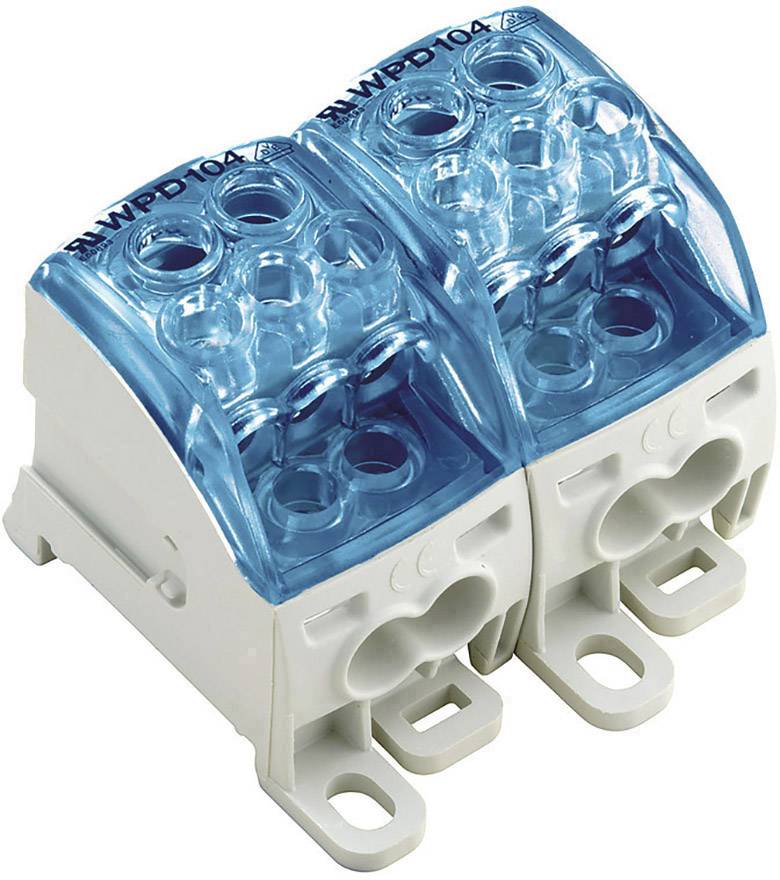

Weidmüller 2518330000 Distribution block Screws Grey, Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
101 A
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Phase distributor block
- WPD 204 2X25/4X16+6X10 2XBL
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
25 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Blue
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
1000 V
- Manufacturer part #
2518330000
- Content
1 pc(s)
- Type
WPD 204 2X25/4X16+6X10 2XBL
- Dim
(L x W x H) 49 x 63 x 68 mm
- Width
63 mm
- Height
68 mm
- Length
49 mm
- RoHS-compliant
Yes
- UKCA
yes
