Weller WX 2012 ULTRA MS PROMO Soldering kit Digital 255 W 100 - 550 °C + soldering tip
EAN:
Part number:
Item no:
Number
Total (€ 928.57 / piece)
€ 928.57
plus VAT.
Only 1 Piece(s) available
Highlights & Details
PROMO Weller WX 2010 WX 2012 ULTRA MS soldering station set
- 2 channels for the simultaneous operation of 2 tools
- Component size XL to XXL
- Extremely fast heat-up time: 7 sec.
- Intelligent soldering iron with motion sensor and integrated data storage
Technical specifications
- Product type
Soldering kit
- Max. power
255 W
- Power supply (LOV)
mains-powered
- Max. temperature
550 °C
- Display
Digital
- Preheat time
7 s
- Operating voltage
230 V
- Weight
8 kg
- Soldering iron features
+ soldering tip
- Min. temperature
100 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2274513 Weller WX 2012 ULTRA MS PROMO Soldering kit Digital 255 W 100 - 550 °C + soldering tip
User & Safety Instructions 2274513 Weller WX 2012 ULTRA MS PROMO Soldering kit Digital 255 W 100 - 550 °C + soldering tip
Description
Weller WX stations make the manual soldering process safer, a decisive factor in the automotive, aerospace and medical industries. This station set was developed especially for the compliance with MIL-SPEC / IPC-standards, in order to protect sensitive components from electrical overload by the use of Weller's RT MS soldering tips. Weller offers a wide range of RT MS solder tips with active radiator technology for components from XL to XXL.
A safe soldering process is achieved by many of the features of the Weller WX station, such as temperature and tool locking, as well as tool-specific features
Temperature settings.
Integrated USB ports enable WX stations that act as table controls to connect and control solder fume extraction, preheat plates and programmable logic controllers (PLCs).
Firmware updates and registration are done quickly and easily with the help of USB sticks. Parameters such as standby temperatures and automatic switch-off time can easily be stored in the soldering iron. Parameters only need to be saved once; the MS soldering iron can then use them with any WX station.
This text is machine translated.
A safe soldering process is achieved by many of the features of the Weller WX station, such as temperature and tool locking, as well as tool-specific features
Temperature settings.
Integrated USB ports enable WX stations that act as table controls to connect and control solder fume extraction, preheat plates and programmable logic controllers (PLCs).
Firmware updates and registration are done quickly and easily with the help of USB sticks. Parameters such as standby temperatures and automatic switch-off time can easily be stored in the soldering iron. Parameters only need to be saved once; the MS soldering iron can then use them with any WX station.
This text is machine translated.
Features
- The station works as a control unit of tips, soldering irons, soldering fume extraction and other tools
- for high-precision heavy duty soldering applications, Specially designed for MIL-SPEC / IPC requirements
- for heavy duty soldering applications and largest components 250 W +100 to +550 °C
- Intelligent tool detection
- Three-way award-winning top technology is fully compliant with MIL-SPEC / IPC-Standard
- Tool-less tip change
- Traceability ready 2-in-1 safety support for wet and dry top cleaning
- 2-channel soldering station
- Automatic tool detection
- USB connection
- Temperature stability
- intuitive operation, operation Multi-lingual
- Robot output
- Traceability capable
- Parameter memory in the piston integrates
- active cutting-edge technology
- tip and handle in one

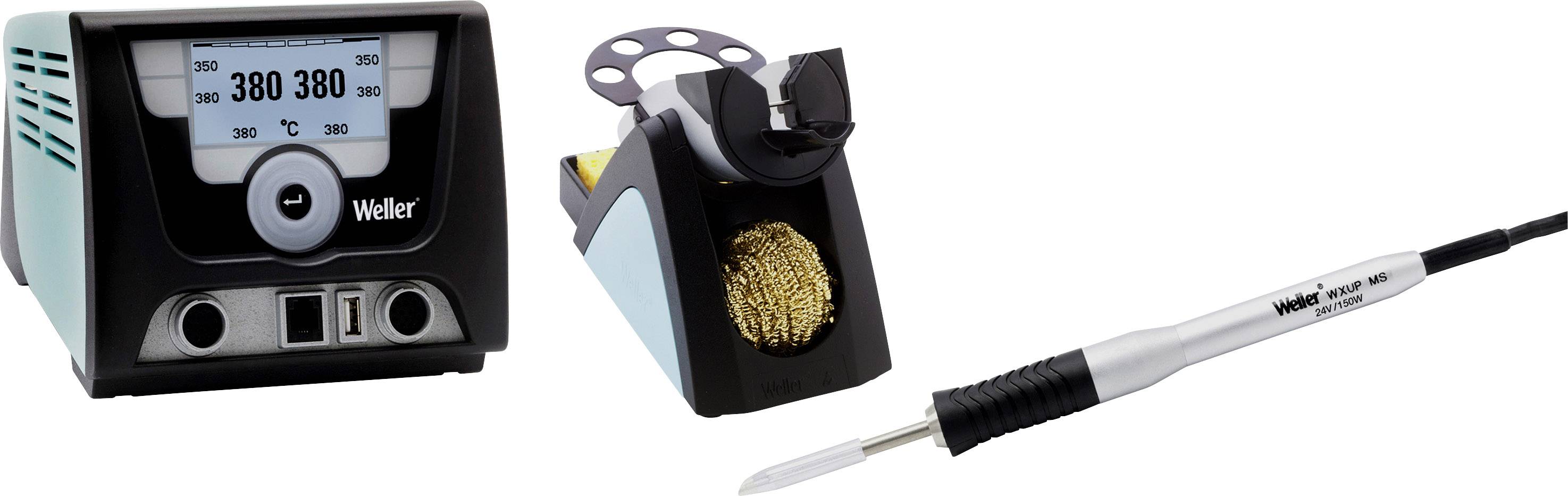

Scope of delivery
- 2-channel soldering station WX2, 200 W (255W)
- Ultra soldering iron WXUP MS 24V, 150W
- Ultra soldering tip RTU032SMS

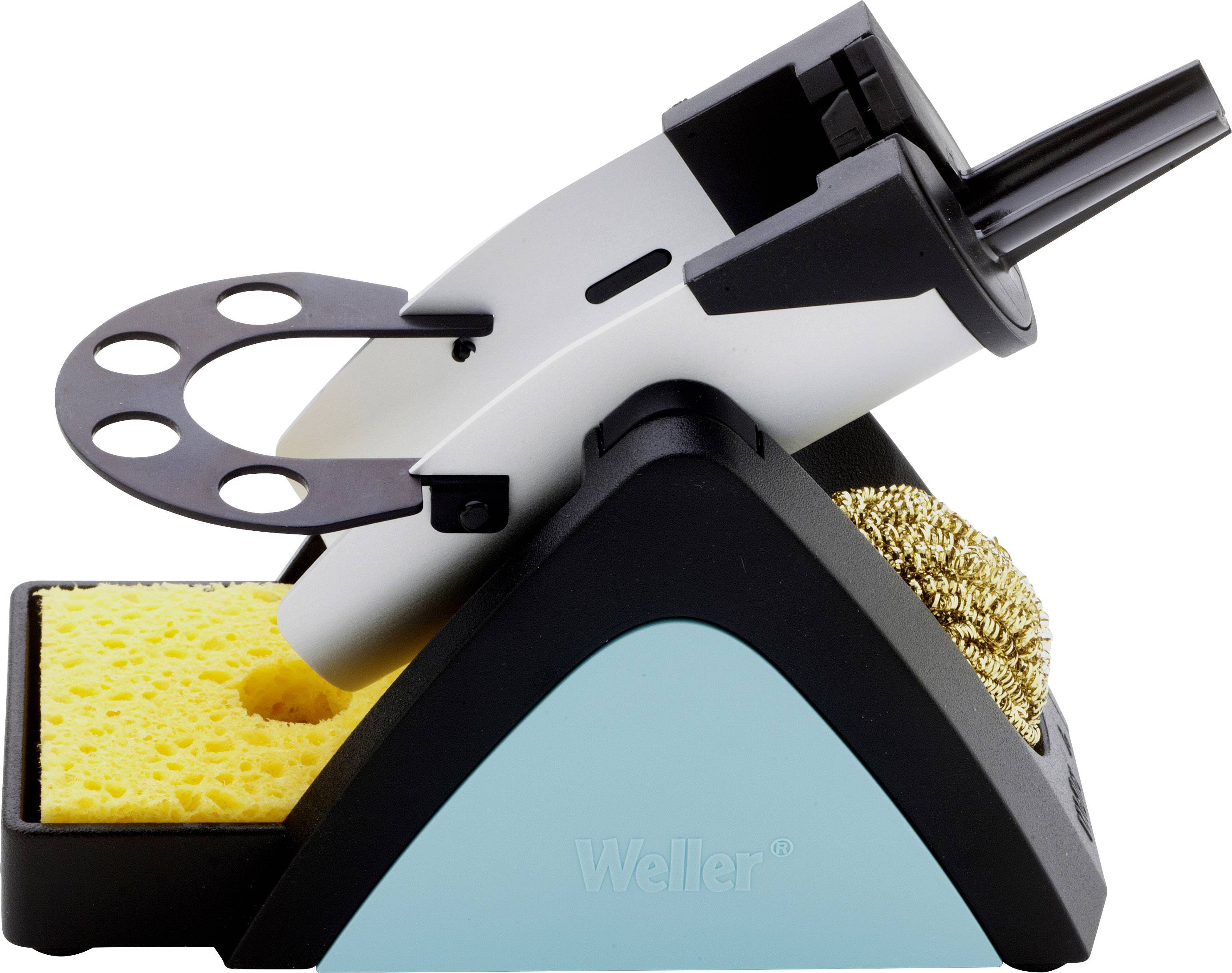

- Safety tray WSR 200
- Power plug
- User manual.
