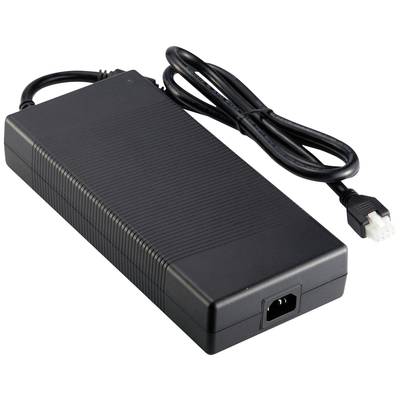

Dehner Elektronik ATM 450A2-P240 AC/DC bench/mains PSU 24 V DC 18.75 A 450 W GaN, Regulated
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 275.00 / piece)
€ 275.00
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Dehner Elektronik ATM 450A2-P240 AC/DC bench/mains PSU 24 V DC 18.75 A 450 W GaN, Regulated
- Robust and durable plastic housing in a timeless design
- Through practical IEC 60320-C14 input socket can be used internationally
- Ready to use immediately for the European, USA, Canada, Japan and Taiwan markets
- Tested according to the CB scheme
- 2xMOPP protected
- High energy efficiency
- Length of device connection cable 80 cm to 100 cm
- Short circuit protection, overvoltage protection, overload protection
Technical specifications
- Product type
AC/DC bench/mains PSU
- Used at
Indoors
Mains socket
- Max. output current
18.75 A
- Output current (max.) - rounded
18.75 A
- Output
Connectors
- Output voltage
24 V DC
- Input voltage
240 V AC
- No. of outputs
1 x
- EuP Status
Step 2
- Weight
1600 g
450 W
- PSU features
GaN
Regulated
- Type
Switched PSU
- Width
116 mm
- Height
47 mm
- Length
254 mm
- Type
ATM 450A2-P240
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3015438 Dehner Elektronik ATM 450A2-P240 AC/DC bench/mains PSU 24 V DC 18.75 A 450 W GaN, Regulated
User & Safety Instructions
User & Safety Instructions 3015438 Dehner Elektronik ATM 450A2-P240 AC/DC bench/mains PSU 24 V DC 18.75 A 450 W GaN, Regulated
Warranty Terms
Warranty Terms 3015438 Dehner Elektronik ATM 450A2-P240 AC/DC bench/mains PSU 24 V DC 18.75 A 450 W GaN, Regulated
Description
The desktop power supply ATM450A2 by ADAPTER TECH is based on the new GanFET-Technology with considerably smaller housing. Tested according to EN 62368-1 and EN 60601-1 it is suitable for the use in information technology, audio/video systems as well as medical applications in clinics, medical practices or home.
This text is machine translated.
This text is machine translated.
Features
- Short circuit and over load protection with automatic restart
- DC-DC Plug 5.5 mm x 2.1 mm, polarity + inside
- Safety tested according to EN standard, CB, UL
- Type: synchronised.
Scope of delivery
- Connection cable
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
