Name: Display Elektronik LCD Yellow-green (W x H x D) 80 x 36 x 7.6 mm
Brand: Display Elektronik
SKU: 2238764
Availability: SoldOut

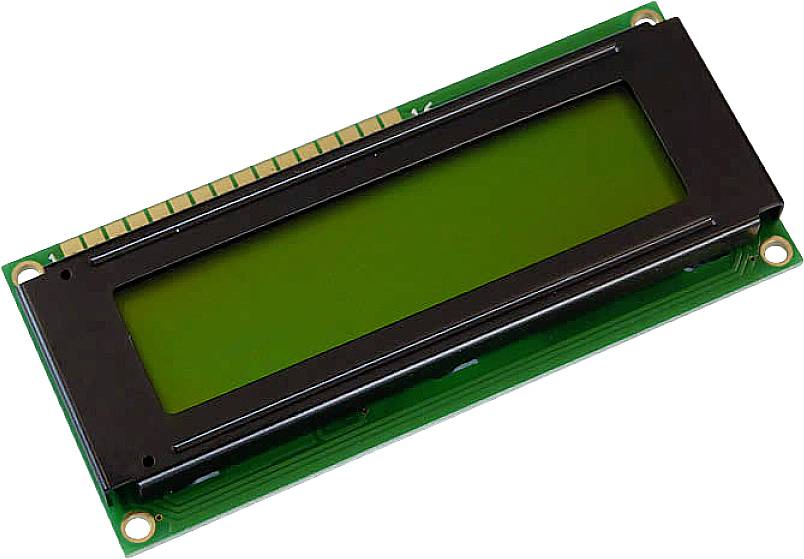

A rectangular LCD display with green backlighting, framed by a black enclosure, mounted on a green circuit board.

Product type

LCD

Background colour

Yellow-green

Lighting type

LED

Digit height

7.9 mm

Operating voltage

5 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 20.99 / piece)

€ 20.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Display Electronic STN 16x1 black/yellow LED backl.

High-contrast LCD STN display
Connects to 4- or 8-bit data bus
Supply voltage, type. +5.0V
Operating temperature range -20...+70°C.

Technical specifications

Product type: LCD

Controller type: HD44780 Compatible

Light area (width): 61 mm

Light area (height): 15.8 mm

Background colour: Yellow-green

Lighting type: LED

Type (display): STN
Dot-matrix

Character style: 16 x 1

Digit height: 7.9 mm

Operating voltage: 5 V DC

Dim: (W x H x D) 80 x 36 x 7.6 mm

Depth: 7.6 mm

Height: 36 mm

Width: 80 mm

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 2238764 Display Elektronik LCD Yellow-green (W x H x D) 80 x 36 x 7.6 mm

User & Safety Instructions

User & Safety Instructions 2238764 Display Elektronik LCD Yellow-green (W x H x D) 80 x 36 x 7.6 mm

Description

Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
