Feed-through terminal block UTTB 4 BU 3044791 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.40 / piece)
€ 169.99
incl. VAT
14-day return policy included
Highlights & Details
Feed-through terminal block UTTB 4 BU
- UTTB 4 BU
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Configuration
Double
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3044791
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UTTB 4 BU
- Dim
(L x W x H) 69.9 x 6.2 x 65 mm
- Width
6.2 mm
- Height
65 mm
- Length
69.9 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565906 Feed-through terminal block UTTB 4 BU 3044791 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565906 Feed-through terminal block UTTB 4 BU 3044791 Phoenix Contact
Description

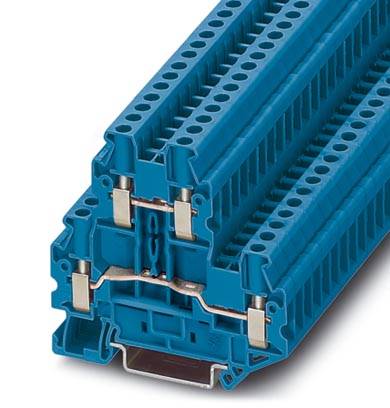

Double-level terminal block with a screw connection, cross section: 0.14 mm^2 - 6 mm^2, AWG: 26 - 10, width: 6.2 mm, color: blue
