Buy Fluke 124B/EU Handheld oscilloscope 40 MHz 2-channel 4 GS/s Multimeter functions 1 pc(s)

A portable oscilloscope meter displays a waveform. The screen shows frequency data: 59.94 Hz with an RMS value of 727.4 mV.

Digital handheld oscilloscope shows a waveform on the display with a value of 727.4 RMS at 59.94 Hz and a power factor of 0.90.

An electrician in protective clothing is working with a multimeter on an open electrical cabinet full of cables and fuses.

A technician wearing safety glasses is using a multimeter to maintain an electrical control panel in an industrial setting.

A man is working on a computer with a connected measuring device displaying measurement data on a monitor.

A technician in protective clothing is measuring the current with a portable device in an open electrical cabinet with transformers.

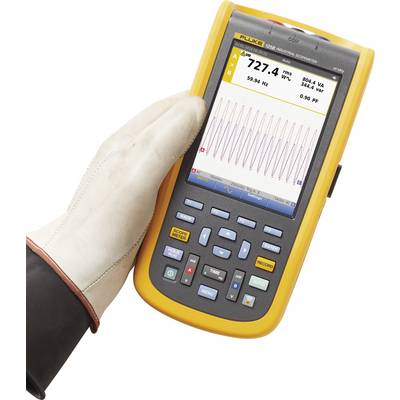

A gloved hand holds a yellow portable testing device with a screen displaying electrical measurement data and waveforms.

1/7

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,654.62 / piece)

€ 2,654.62

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Portable industry oscilloscope Fluke ScopeMeter 124 B/EU

40 MHz
No. of analogue inputs 2

Technical specifications

Active matrix color TFT

Product type: Handheld oscilloscope

Bandwidth: 40 MHz

Channel sample rate: 4 GS/s

Displays: 640 x 480 pixels

Screen size: 14.5 cm (5.7")

Oscilloscope features: Multimeter functions

Time base: 10 ns - 500 s/div

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V

Vertical deflection: 5 mV - 200 V/div

Input impedance: 1 MΩ

Input coupling: AC, DC

Input voltage: 10 V/DC up to 21 V DC

Power supply (details): Li-ion battery 10.8 V

Dim: (L x W x H) 55 x 132 x 259 mm

Weight: 1.4 kg

Width: 132 mm

Height: 259 mm

Length: 55 mm

Type: 124B/EU

Documents & Downloads

Datasheet

Datasheet 1424967 Fluke 124B/EU Handheld oscilloscope 40 MHz 2-channel 4 GS/s Multimeter functions 1 pc(s)

Information

Test Summary Report 1424967 Fluke 124B/EU Handheld oscilloscope 40 MHz 2-channel 4 GS/s Multimeter functions 1 pc(s)

Security datasheet

Security datasheet 1424967 Fluke 124B/EU Handheld oscilloscope 40 MHz 2-channel 4 GS/s Multimeter functions 1 pc(s)

Description

The Scopemeter industry oscilloscope of the series 120 B contain innovative features that will allow technicians in troubleshooting accelerate and in the light of the results of their systems ready for operation. Waveform display with the trigger and configuration technology Connect-and-View™ as well as automatic display related measurement results are set with the help of the Fluke-Intella™ technology - and all this without any manual settings. With the help of the "Recorder Event Detect" functions are difficult to be detected intermittent events recorded and logged and can be easily displayed and analyzed.

This text is machine translated.
