GW Instek MFG-2130M Mains-powered 1 µHz - 30 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

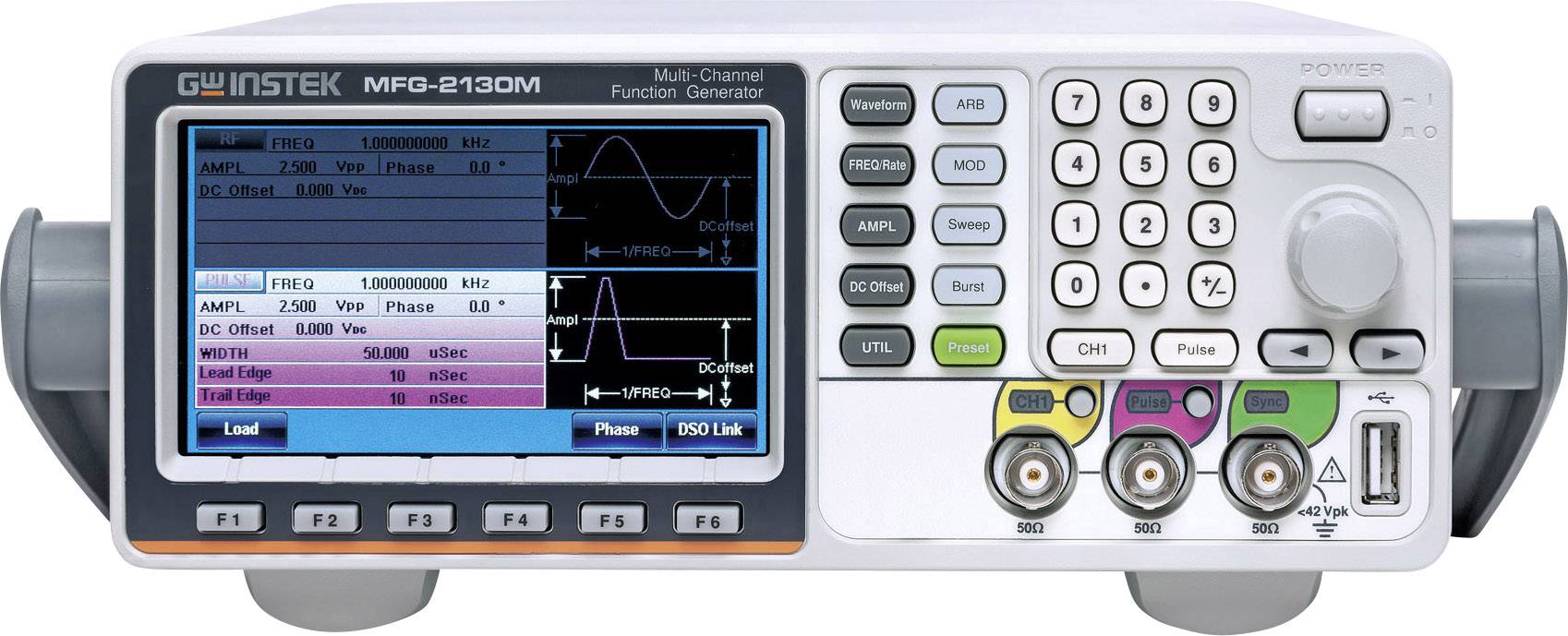

A function generator with a screen displays measurement data and waveforms. Controls and connections are located on the right-hand side.
'Table of the MFG-2000 Series: Listing specific functions for each model, including function with ARB and modulation.'
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 16 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 605.00 / piece)
€ 605.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Arbitrary function generator MFG -2130 M

  • 1 µHz - 30 MHz
  • 25 MHz pulse generator
  • True point-by-Point output
  • Arbitrary function: 200 MSa/s
  • 100 MHz Refresh Rate
  • 14-bit resolution
  • 16 kpts memory depth

Technical specifications

Product type

Mains-powered

Frequency range

1 µHz - 30 MHz

Signal output types

Arbitrary

Sinus

Rectangle

Triangle

Pulse

Distortion factor (sine)

0.1 %

Square wave slew rate

15 ns

Display

Digital

Manufacturer's standards (no certificate)

Internal modulation

AM, FM, PM, PWM, FSK, ASK, PSK, SUM

Frequency reading (external)

5 Hz - 150 MHz

Dim

(W x H) 266 mm x 107 mm

Weight

2.5 kg

No. of channels

1-channel

Max. frequency

30 MHz

Min. frequency

1 µHz

Features

incl. cycle counter

Modulation

Width

266 mm

Height

107 mm

Interfaces

USB

Voltage supply

Mains

Type

MFG-2130M

Documents & Downloads

Datasheet

Datasheet 1601371 GW Instek MFG-2130M Mains-powered 1 µHz - 30 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

User & Safety Instructions

User & Safety Instructions 1601371 GW Instek MFG-2130M Mains-powered 1 µHz - 30 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

Information

Information 1601371 GW Instek MFG-2130M Mains-powered 1 µHz - 30 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

Description

Single-channel arbitrary function generator with a maximum bandwidth of 30 MHz and a pulse generator, the frequency 25 MHz.

This text is machine translated.

Features

  • Pulse generator
  • Modulation
  • Sweep
  • Burst
  • Frequency counter.
