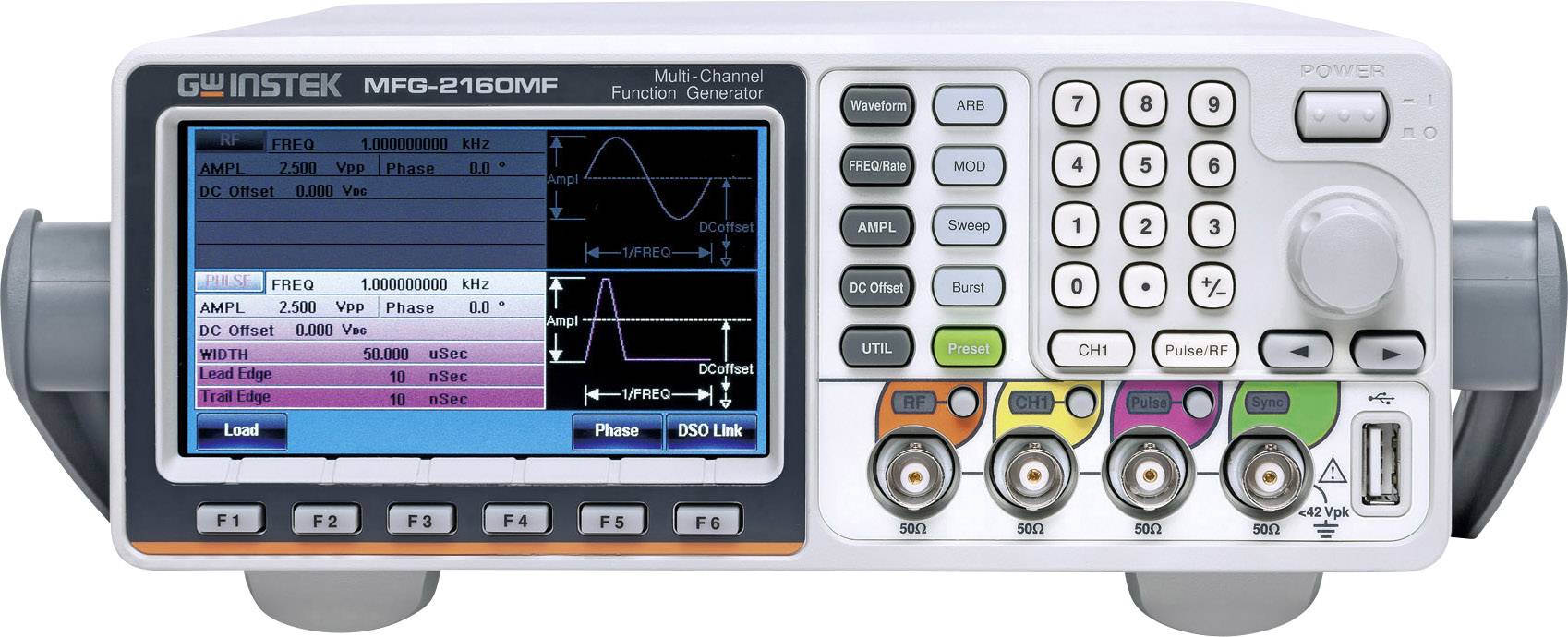

A multi-channel function generator with display showing waveforms and multiple operation buttons along with connectors.

'Table of the MFG-2000 Series: Listing specific functions for each model, including function with ARB and modulation.'

1/2

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 889.92 / piece)

€ 889.92

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Arbitrary function generator MFG -2160 MF

Frequency range : 1 Hz~60MHz
- Pulse Generator Frequency : 25MHz
RF Channel Frequency (FG/ARB/MOD) : 160MHz
True Point by Point Output Arbitrary Waveform Function : 200MSa/s
100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth

Technical specifications

Product type: Mains-powered

Frequency range: 1 µHz - 60 MHz

Signal output types: Arbitrary
Sinus
Rectangle
Triangle
Pulse

Distortion factor (sine): 0.1 %

Square wave slew rate: 15 ns

Display: Digital

: Manufacturer's standards (no certificate)

Internal modulation: AM, FM, PM, PWM, FSK, ASK, PSK, SUM

Frequency reading (external): 5 Hz - 150 MHz

Dim: (W x H) 266 mm x 107 mm

Weight: 2.5 kg

No. of channels: 1-channel

Max. frequency: 60 MHz

Min. frequency: 1 µHz

Features: incl. cycle counter
Modulation

Width: 266 mm

Height: 107 mm

Interfaces: USB

Voltage supply: Mains

Type: MFG-2160MF

Documents & Downloads

Datasheet

Datasheet 1601375 GW Instek MFG-2160MF Mains-powered 1 µHz - 60 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

User & Safety Instructions

User & Safety Instructions 1601375 GW Instek MFG-2160MF Mains-powered 1 µHz - 60 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

Information

Information 1601375 GW Instek MFG-2160MF Mains-powered 1 µHz - 60 MHz 1-channel Arbitrary, Sinus, Rectangle, Triangle, Pulse

Description

MFG-2000 series, which has up to 5 simultaneous output channels (MFG-2260MFA/MFG-2260MRA), including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
