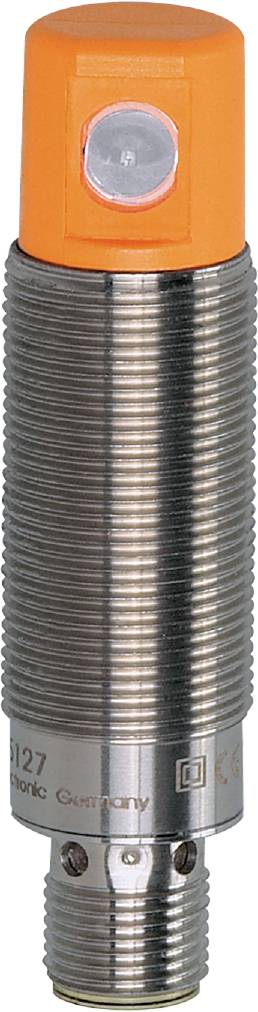

ifm Electronic Retroreflective light barrier OG5126 OG5126 Dark-ON 1 pc(s)

Image similar
Product type
Retroreflective light barrier
Functions
Dark-ON
Max. operating voltage
30 V DC
Connector
M12
Type
OG5126
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Retroreflective light barrier

Type

OG5126

Functions

Dark-ON

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Contact type

Blanking

Outputs

PNP

Switching frequency

500 Hz

Connector

M12

Size

M18 x 1

Transmitter type

LED red

Light emission

lateral

Wavelength

660 nm

IP68

Min. temperature

-25 °C

Max. temperature

60 °C

Length

59.3 mm

(Ø)

18 mm

Dim

(Ø x L) 18 mm x 59.3 mm

RoHS-compliant

Yes

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3319828 ifm Electronic Retroreflective light barrier OG5126 OG5126 Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3319828 ifm Electronic Retroreflective light barrier OG5126 OG5126 Dark-ON 1 pc(s)

Description

Hints

For more information on this OG5126, please refer to its datasheet under 'downloadable documents'

What kind of Industrial Light Barriers & Photo Sensors are you looking for?

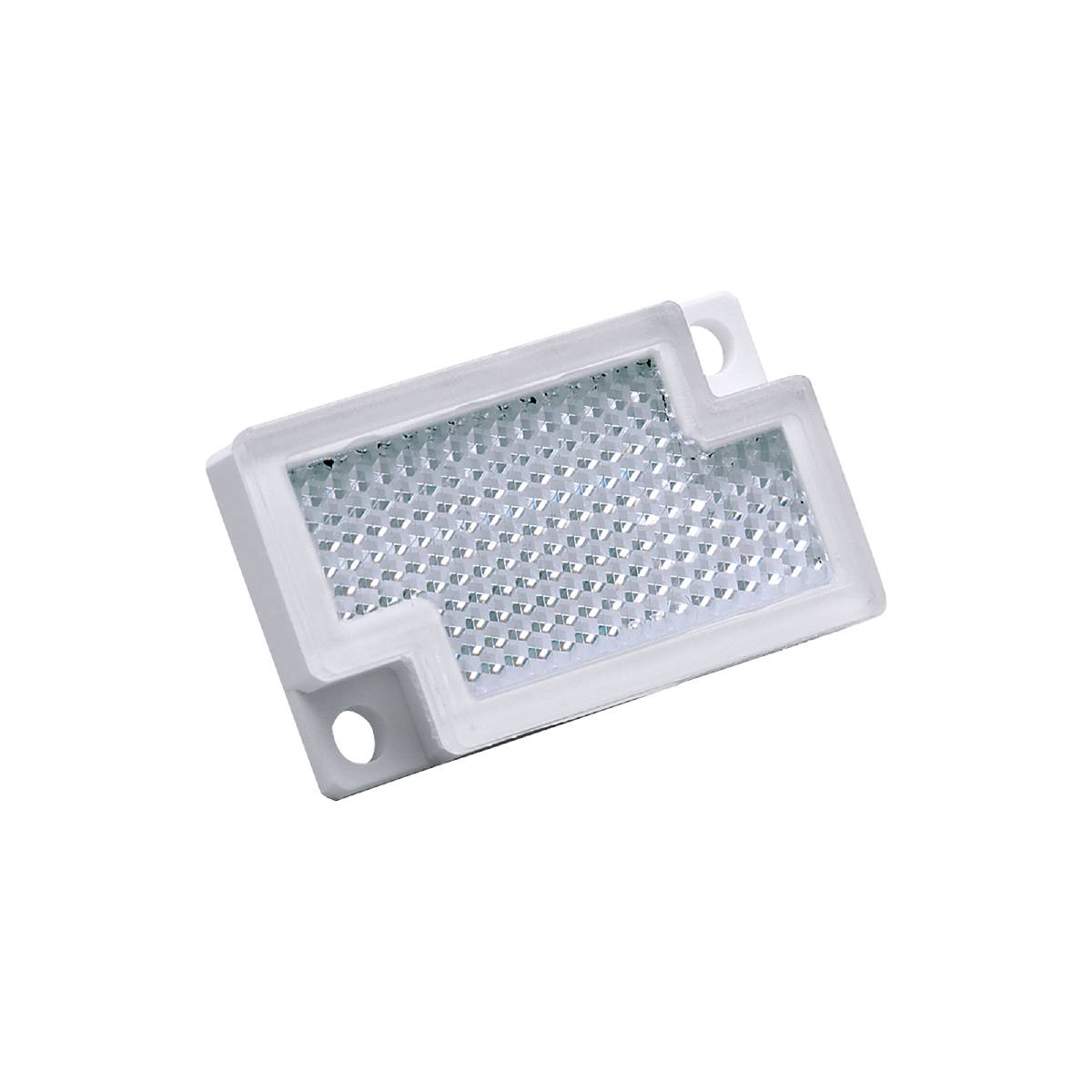

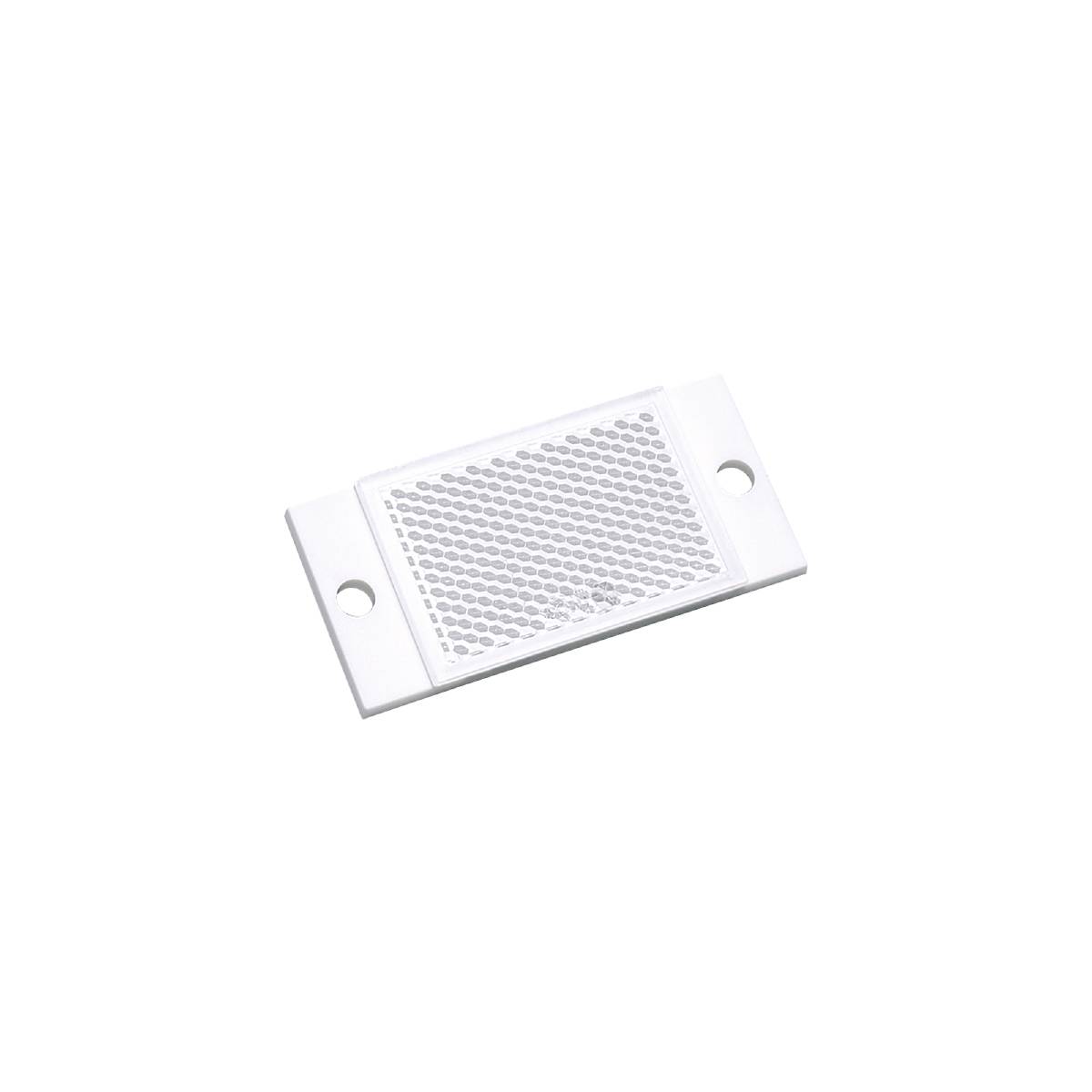

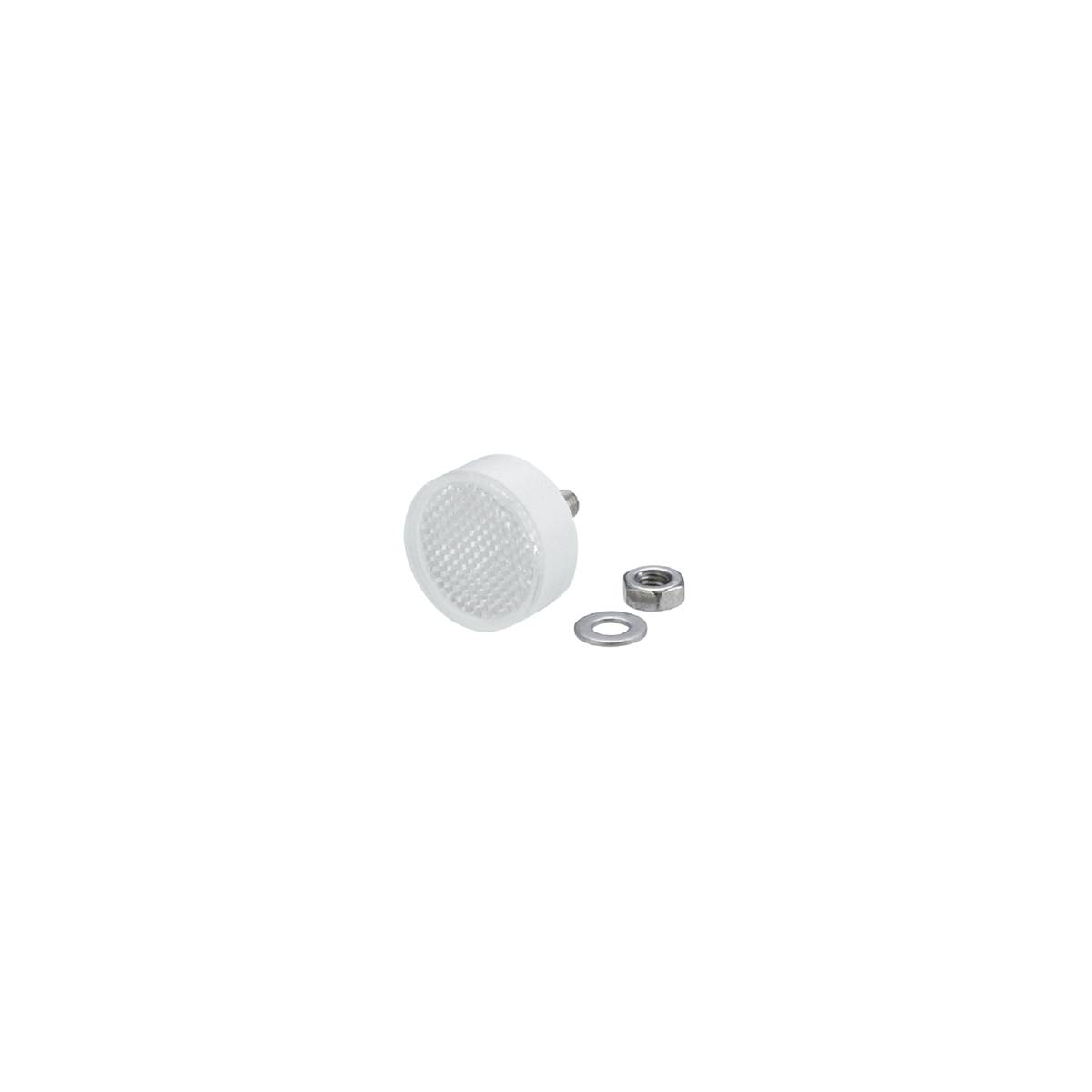

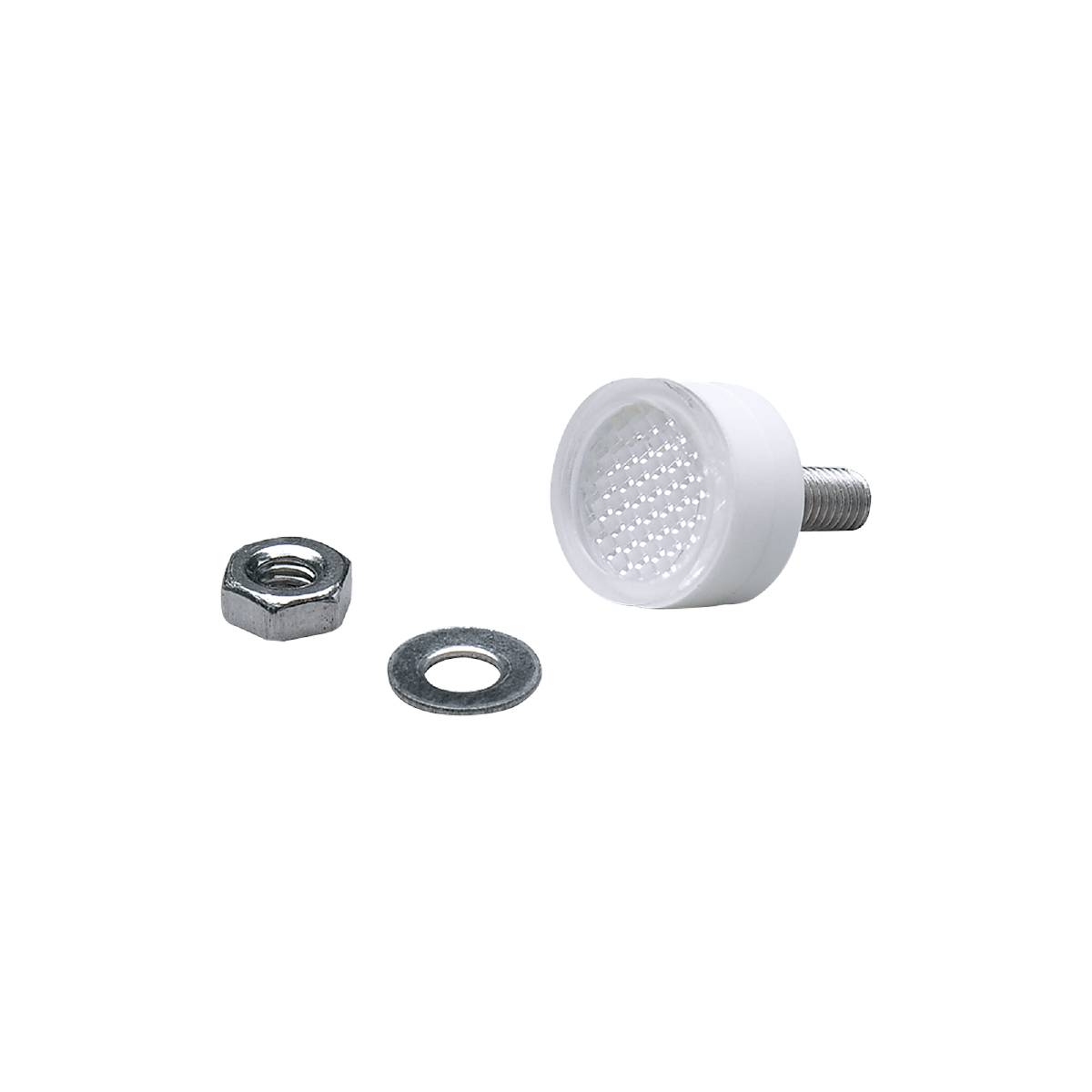

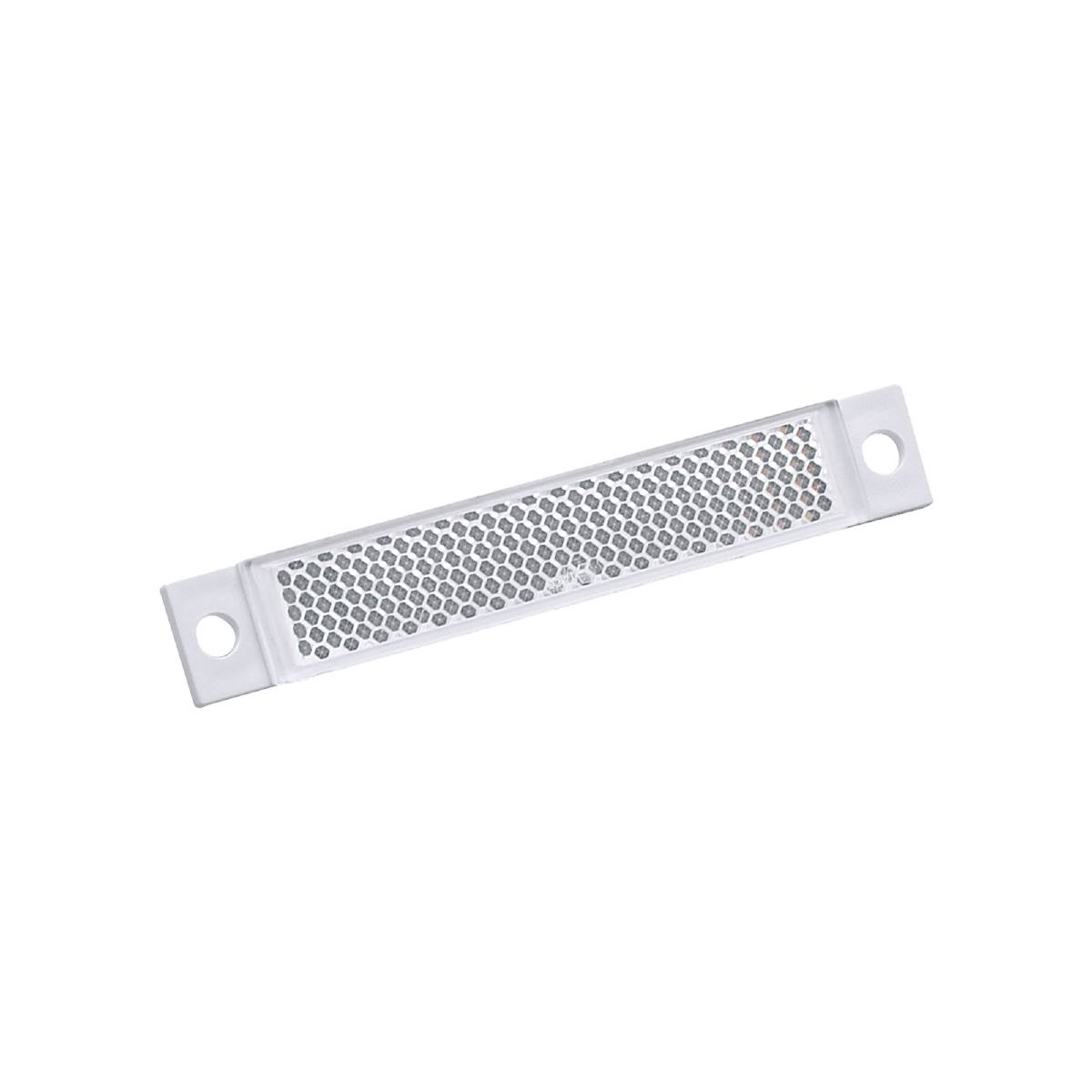

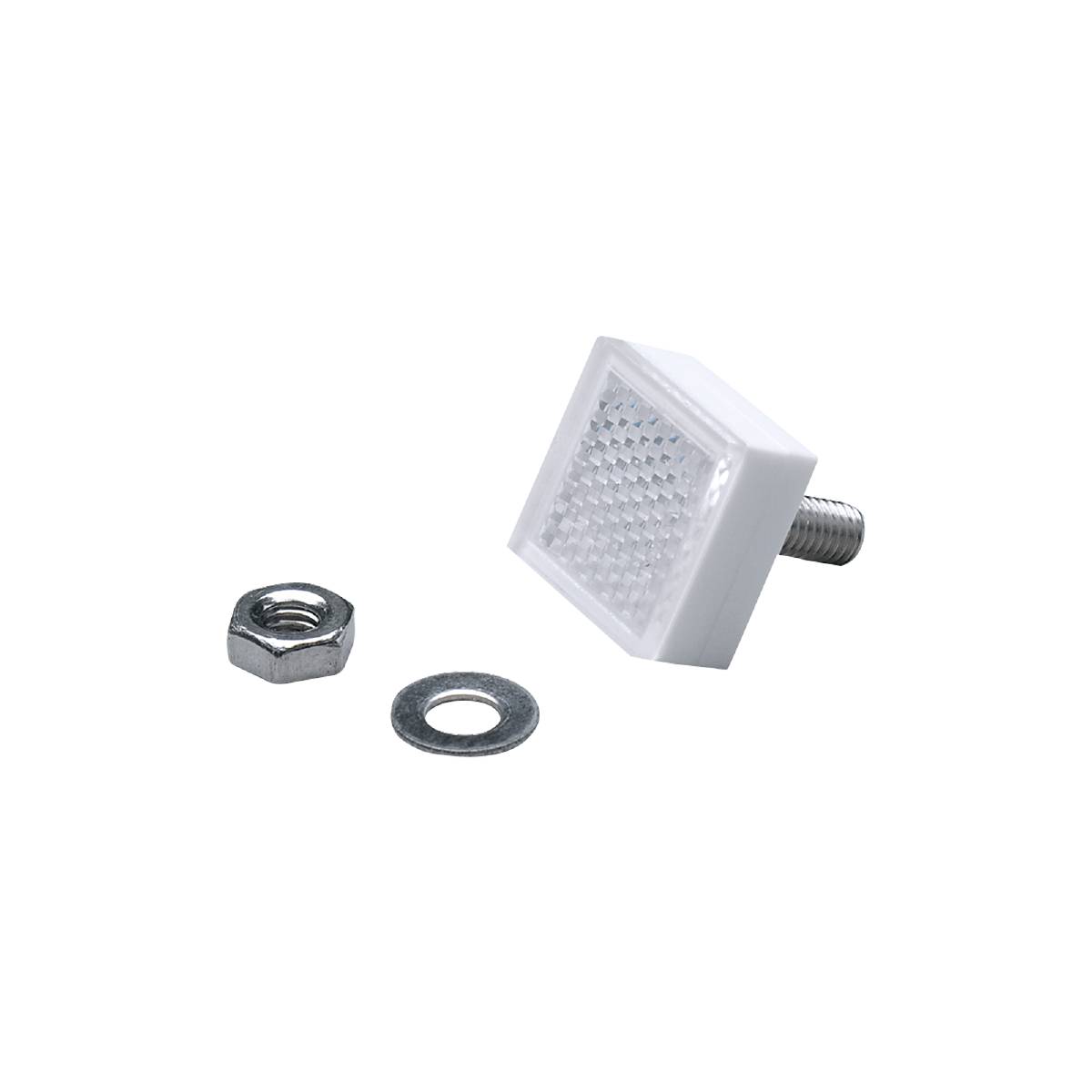

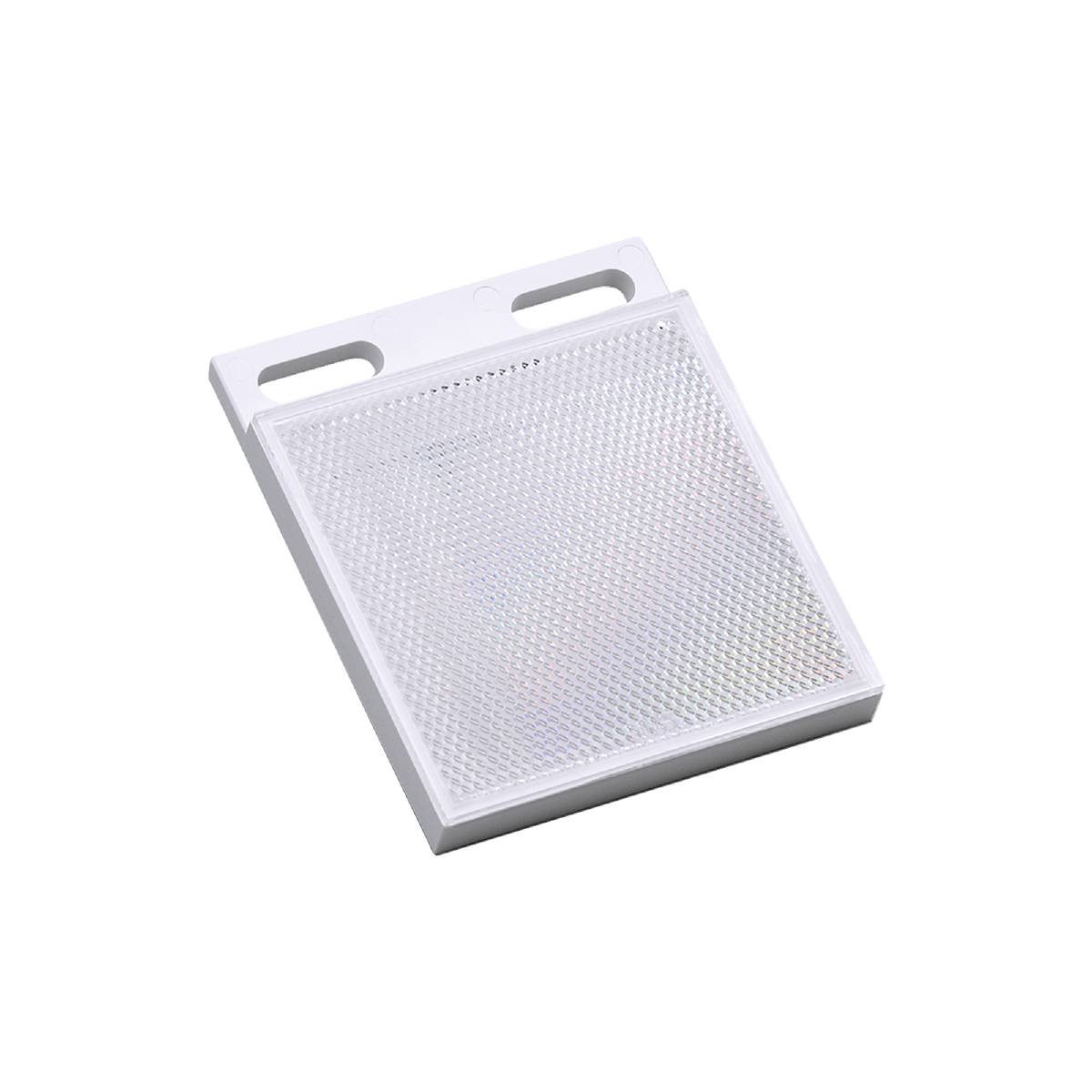

Accessories
