Klingspor 325175 DT 900 U Special Diamond cutting disc Diameter 450 mm Bore diameter 30 mm Construction materials, Concr

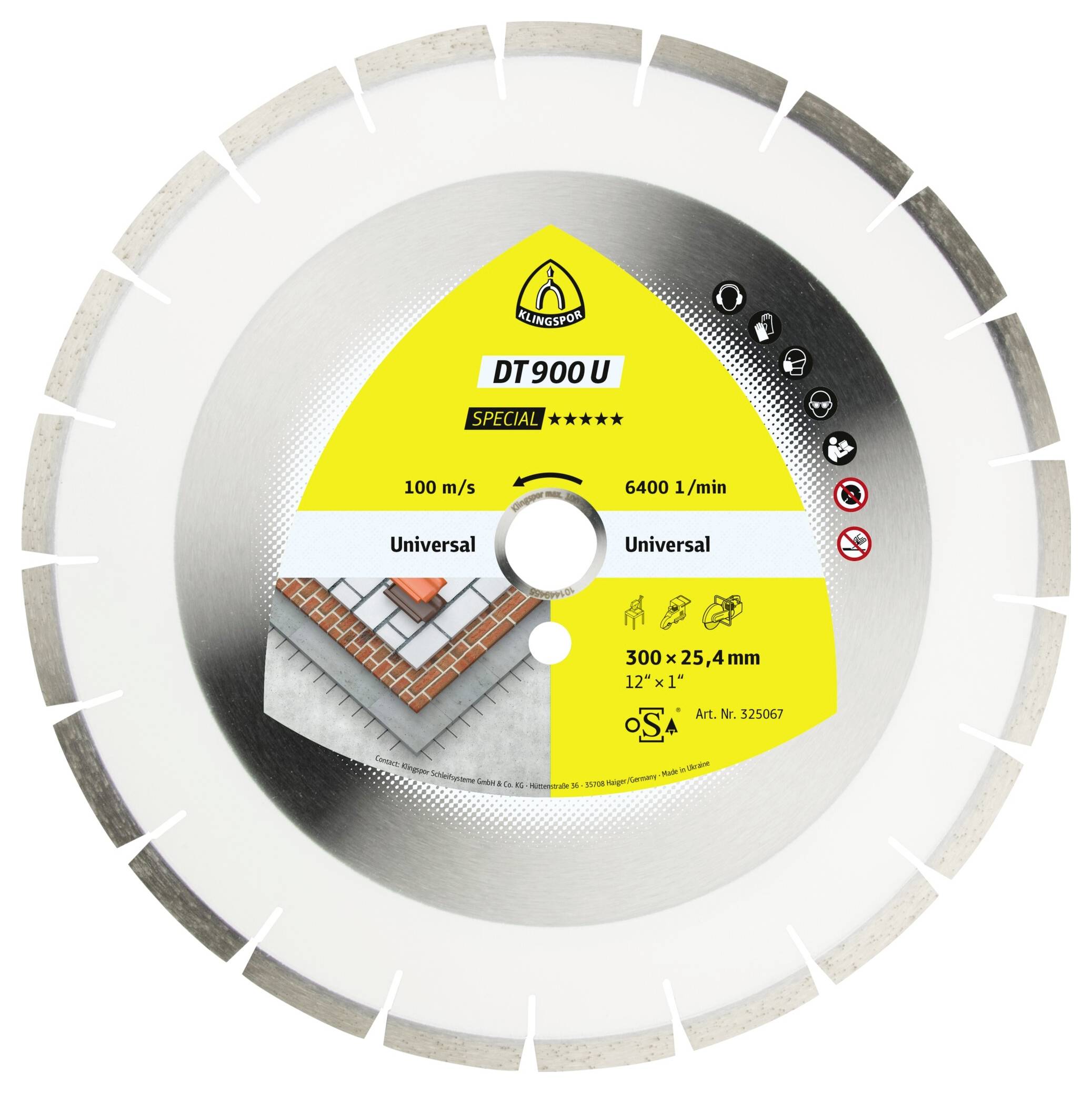

A circular saw blade labeled 'DT900 U Special', showing details for 100 m/s, 6400 1/min. Suitable for universal use on various materials.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 305.00 / piece)
€ 305.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Klingspor 325175 DT 900 U Special Diamond cutting disc Diameter 450 mm Bore diameter 30 mm Construction materials, Concrete (multi-purpose), Recycled waste concrete (reinforced), Flintlime brick, Granite 1 pc(s)

  • High performance tool for universal use
  • Extremely high cutting speed
  • Special segment binding for long tool life and clean cut
  • Titanium-coated diamonds for first-class cutting action
  • Designed for professional use
  • 'Do not add water' symbol: Two water droplets, with one crossed out, a plus sign, and a circular gauge inside a circle.
  • A circular symbol showing a droplet with a plus sign and a crossed-out droplet. This indicates water resistance or waterproof feature.
  • 'Saw blade with cutting sparks', warning symbol for potential sharpness or cutting hazard.
  • Icon of a circular saw with a protective guard and handle.
  • Isometric illustration of a circular saw on a table saw stand, with a prominent round blade, designed for woodcutting tasks.

Technical specifications

  • Usage type: Table saw, petrol separator
  • Aggressivity: Highest
  • Design: Laser welded
  • Segmentation: Close/wide interlocked
  • Service life: Highest
  • Top speed 100 m/s.
  • Maximum speed 4300 rpm
  • Machine type: Table saw
  • Edge design: Close-toothed
  • Number of segments: 32 pcs
  • Segment width 3.6 mm
  • Segment height 10 mm
  • Segment length 40 mm
Product type

Diamond cutting disc

Material suitability

Construction materials

Concrete (multi-purpose)

Recycled waste concrete (reinforced)

Flintlime brick

Granite

Bore Ø

30 mm

Dim

(Ø) 450 mm

(Ø)

450 mm

Rotational speed (max.)

4300 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530235 Klingspor 325175 DT 900 U Special Diamond cutting disc Diameter 450 mm Bore diameter 30 mm Construction materials, Concr

User & Safety Instructions

User & Safety Instructions 3530235 Klingspor 325175 DT 900 U Special Diamond cutting disc Diameter 450 mm Bore diameter 30 mm Construction materials, Concr

Information

Information 3530235 Klingspor 325175 DT 900 U Special Diamond cutting disc Diameter 450 mm Bore diameter 30 mm Construction materials, Concr

Description

The laser-welded universal disc DT 900 U special is Ideal for professional use in hard construction materials, concrete and stone. Thanks to titanium-coated diamonds it offers very long life and highest aggressiveness.
