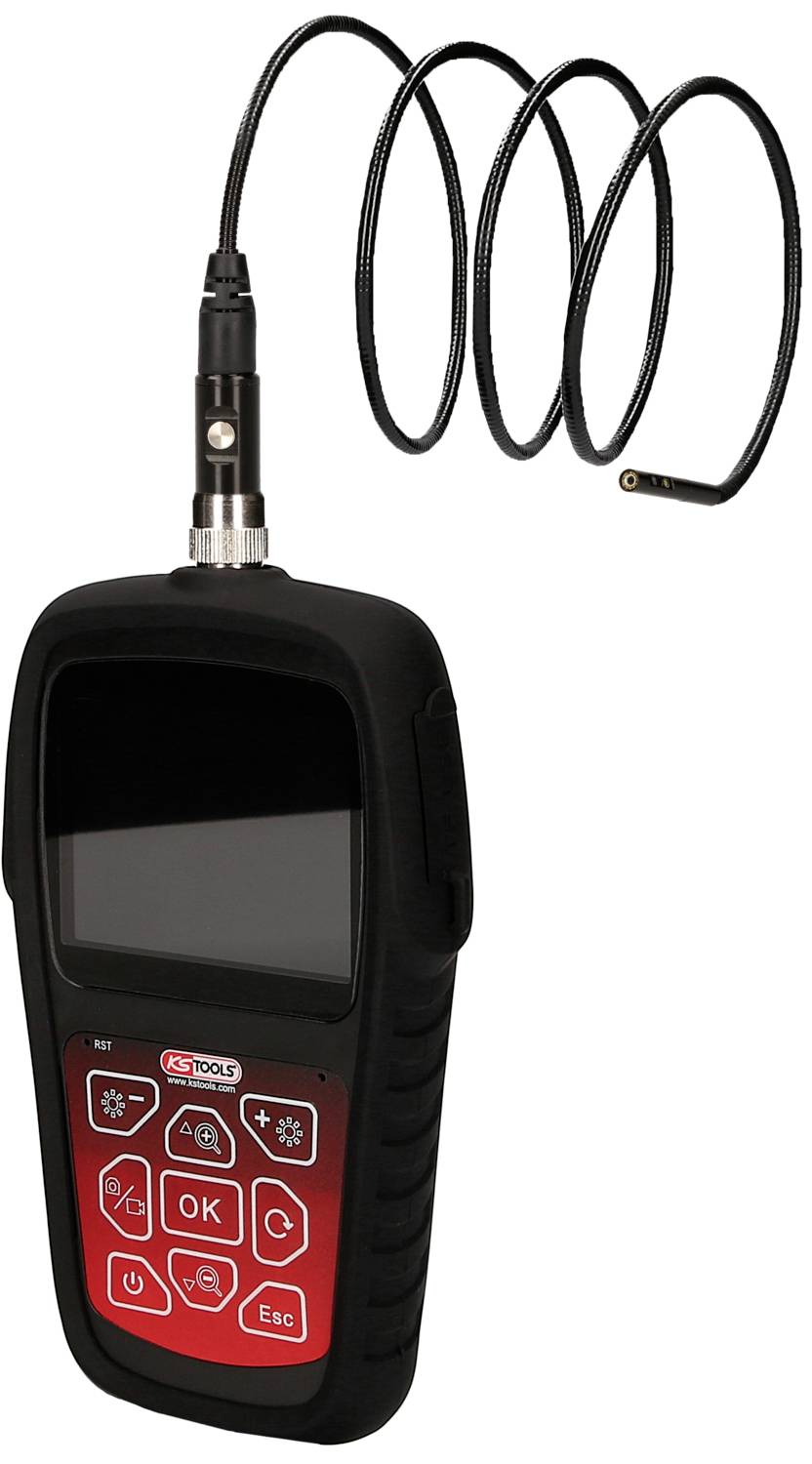

KS Tools 550.7530 Endoscope main unit Probe diameter: 4.5 mm Probe length: 1 m
EAN:
Part number:
Item no:
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 2 Set(s) available
Technical specifications
- Battery voltage and capacity 1500 mAh
- Li-polymer rechargeable battery technology
- USB 2.0 connection
- Working duration: Approx. 150 min.
- Operating temperature: -10°C to +60°C.
- Resistance: Oil-resistant
- Bending radius 5 cm
- Screen: 3.5"
- JPEG image storage format
- Diameter in mm 4.5 mm
- Focused depth of field: 3 ~ 8 cm
- Function attribute 1: Switchable
- Weight 525 g
- Camera resolution 1280 (H) x 720 (V)
- Head-Ø in mm: 4.5 mm
- Length mm 1000.0 mm
- Light source 6 dimmable white mini-LED
- Aperture angle: 65°
- IP67 protection class
- Storage medium: MicroSD
- 7 -piece set.
- Video format: AVI
- Angle 0 + 90 °
- Product type
Endoscope main unit
- Probe diameter
4.5 mm
- Probe length
1 m
- Endoscope features
LED lit
- Display resolution
1280 x 720 Pixel
- Camera resolution
1280 x 720 Pixel
IP67
- Light source
6 dimmable white mini-LED
- Max. bend radius
50 mm
- Weight
525 g
- Type
550.7530
- Ambient temperature
-10°C to 60 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618235 KS Tools 550.7530 Endoscope main unit Probe diameter: 4.5 mm Probe length: 1 m
Description
Features
- 4.5 mm HD camera
- 6 dimmable mini-LED-lamps
- Portable and mains-independent system
- Optimum handling through work independent of power supply
- Probes: Anti-kink because no fiber glass cable
- Operating temperature from -10°C to +60°C.
- Largest possible viewing angle through special camera in the probe head
- Very good image and video quality
- Image recording option in JPEG format
- Video recording in AVI-format
- many possible applications
- With integrated battery, charging control lamp and light
- Approx. 150 minutes of continuous operation
- The device is charged via USB
- Including 2 GB memory card
- With practical carrying case
- This text is machine translated.
