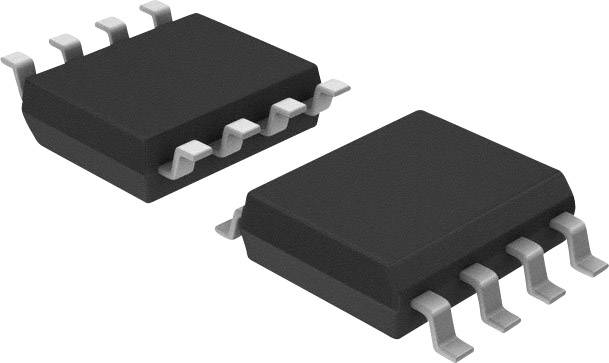

Lite-On Opto-isolator - LED controller LTV-0601 SO 8 Open collector DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
SO 8
Forward current I(F)
20 mA
Reverse voltage U(R)
5 V
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
25
-
€ 1.25
75
8% = € 0.10
€ 1.15
125
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 25
Multiple: 25
Total (€ 1.25 / piece)
€ 31.25
plus VAT.
Technical specifications
- Type
LTV-0601
- Product type
Opto-isolator - LED controller
- Enclosure
SO 8
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.38 V
- Forward current I(F)
20 mA
- Reverse voltage U(R)
5 V
- Channels
1
- Input type
DC
- Output type
Open collector
- Insulation voltage
3750 V RMS
- Operating temperature (min.)
+85 °C
- Operating temperature (max.)
-40 °C
- Mounting type
Surface-mount
- Forward voltage U(F) max
1.7 V
- Forward voltage U(F)
1.38 V
- Supply voltage (min.)
2.7 V
- Supply voltage (max.)
5.5 V
- Power output/channel
50 mA
- Power (max) P(TOT)
85 mW
- Voltage output (max.)
7 V
- LED trigger current (Ift) (max.)
5 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127748 Lite-On Opto-isolator - LED controller LTV-0601 SO 8 Open collector DC
Description
Unfortunately we are not able to provide further information for this product.
