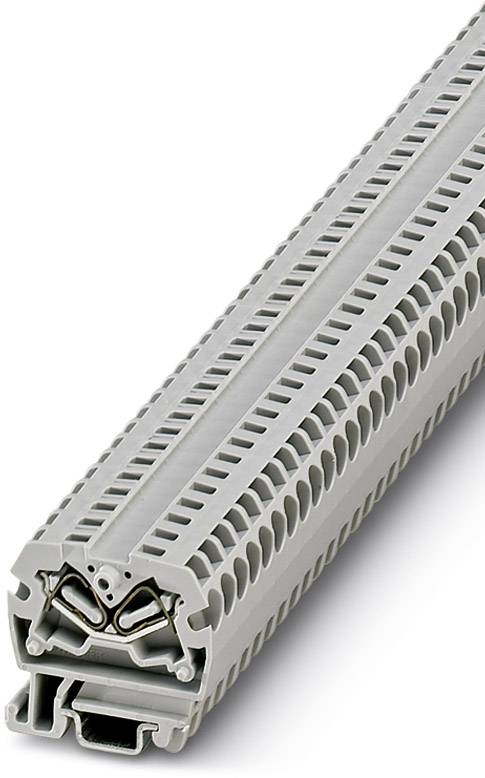

Mini feed-through terminal block MSBV 2,5 3249017 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Total (€ 1.01 / piece)
€ 73.94
-32 %
€ 50.41
plus VAT.
Highlights & Details
Mini feed-through terminal block MSBV 2,5
- MSBV 2,5
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3249017
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MSBV 2,5
- Dim
(L x W x H) 32 x 5.2 x 22 mm
- Width
5.2 mm
- Height
22 mm
- Length
32 mm
- Flammability rating
V0
Documents & Downloads
Datasheet
Datasheet 584394 Mini feed-through terminal block MSBV 2,5 3249017 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 584394 Mini feed-through terminal block MSBV 2,5 3249017 Phoenix Contact
Description
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Height: 22 mm, Color: gray, Mounting type: NS 15
