Electrical distribution board with multiple labelled switches and cables, mounted in a transparent housing.

Image similar

Electrical distribution board with multiple labelled switches and cables, mounted in a transparent housing.

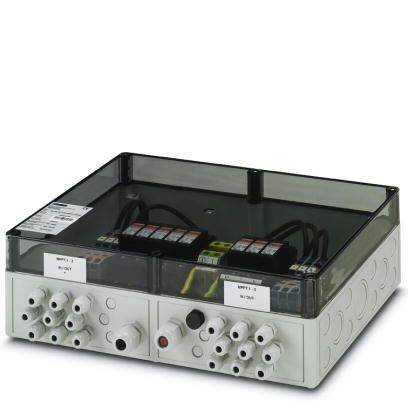

Control box with multiple connections and labels, viewed from above, potentially suitable for electrical or industrial applications.

A green and yellow sign with a lightning arrow, two grey squares and two silver circles underneath. Earthing symbol at the bottom edge.

Earth conductor or earthing symbol with yellow-green stripes and symbol below, indicates connection to earth in electrical circuits.

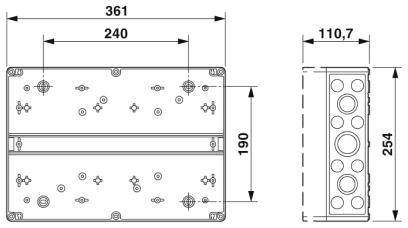

Technical drawing of a rectangular enclosure with dimensions: width 361 mm, height 190 mm, depth 254 mm. Shows drill holes and mounting points.

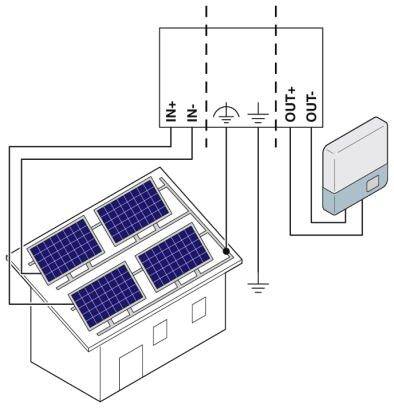

Solar Panel System Diagram: House Roof with Four Solar Panels, Wired to the Inverter. Arrows Indicate Electricity Flow Direction.

Circuit diagram of an electrical circuit with three diodes connected in parallel, with an earth/ground symbol on the left. On the right, a switch with the labels '12', '14', '11', 'FM'.

Two linear representations of a circuit board side by side. The left one is grey with a plus sign, the right one blue with a minus sign.

1/8

Image similar

Phoenix Contact

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 382.35 / piece)

€ 382.35

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Ambient temperature (operation): -20 °C - +55 °C.
Cover/door material: Polycarbonate (transparent)
Number of string inputs: 2 (per MPP tracker)
Current per string: 20 A.
Number of outputs: 1 (per MPP tracker)
Number of MPP trackers supported: 3
Type of cable entry: Cable gland
Cable cross-section String input: 2.5 mm² - 6 mm²
Cable cross-section output: 2.5 mm² - 6 mm²

Product type: Generator junction box

Dim: (W x H x D) 361 x 254 x 111 mm

Content: 1 pc(s)

Width: 361 mm

Height: 254 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209054 Phoenix Contact 1053613 SOL-SC-2ST-0-DC-3MPPT-1000SE Generator junction box

User & Safety Instructions

User & Safety Instructions 2209054 Phoenix Contact 1053613 SOL-SC-2ST-0-DC-3MPPT-1000SE Generator junction box

Description

Standard-compliant switching device combination thanks to the application of DIN EN 61439.

This text is machine translated.
