Name: Siemens 3VA1140-5ED22-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 40 - 40 A Switching voltage (max.): 415
Brand: Siemens
SKU: 1704031
Availability: BackOrder

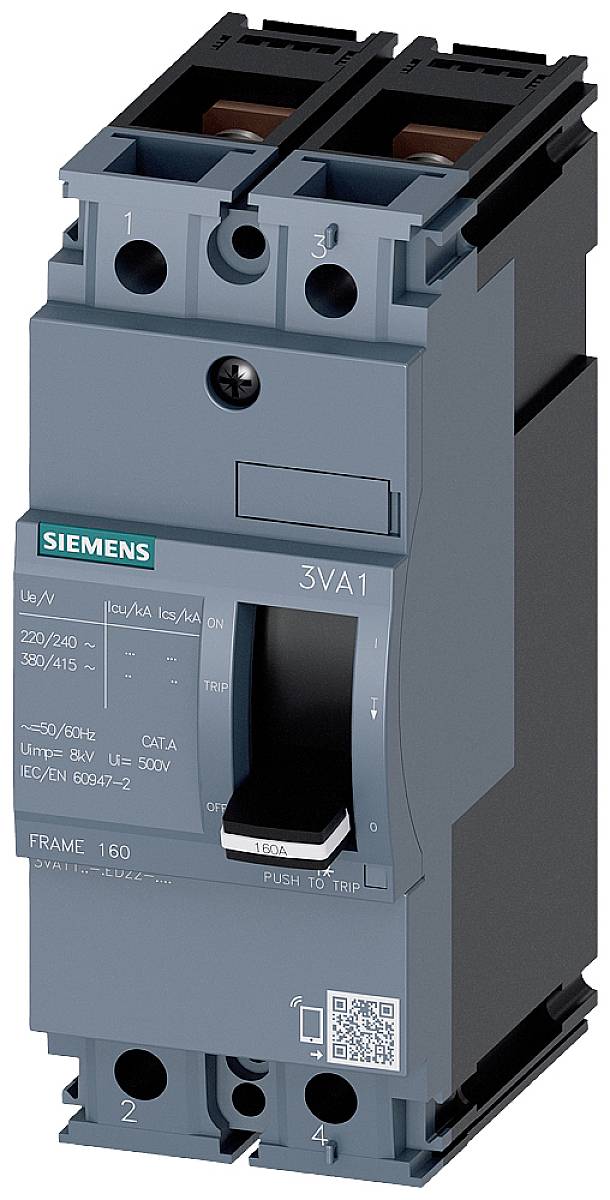

Siemens circuit breaker, Model 3VA1, shows voltage specifications of 230/240 V and 380/415 V, along with an overview of usage categories.

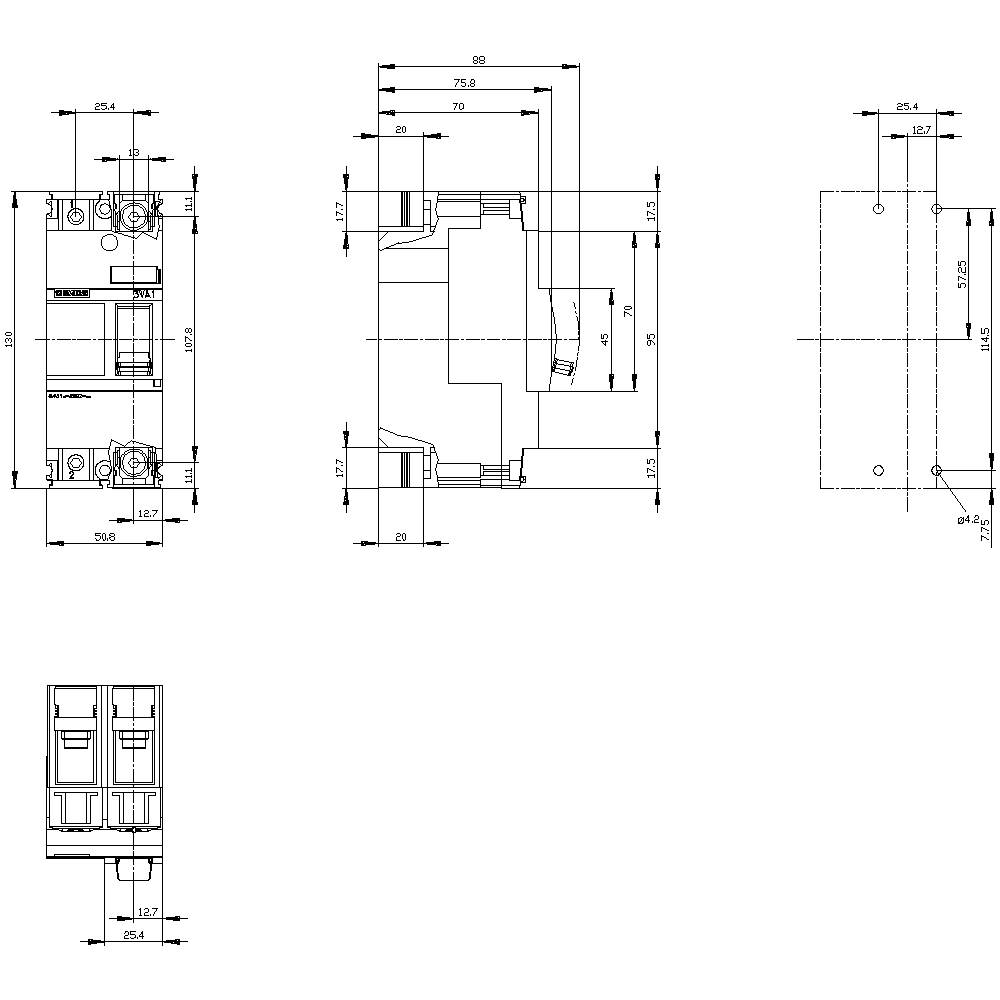

Technical drawing of an electrical component with dimensions and detailed views from multiple perspectives.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

40 A

Connection

Screws

Packaging type

Piece

Type

3VA1140-5ED22-0AA0

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

KEY-OPERATED SWITCH RONIS, O-I

Our service for you

Technical specifications

Design: System Protection
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 500 V
Mains frequency: 50/60 Hz.
Power loss: 3.6 W

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA1140-5ED22-0AA0

Amperage adjustment range (min.): 40 A

Amperage adjustment range (max.): 40 A

Adjustment range (amperage): 40 - 40 A

No. of pins: 2-pin

Switching voltage (max.): 415 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM210

Connection: Screws

: IP40

Depth: 70 mm

Width: 50.8 mm

Height: 130 mm

Dim: (W x H x D) 50.8 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 40 A

: 2

: 40-40 A

: 0

: 415-415 V

: 7.2 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 55 kA

: 400-400 A

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant
