Sygonix SY-5836538 Ceiling Ceiling-mount occupancy sensor 360 ° Relay White

White, square LED night light with rounded corners and a honeycomb-patterned surface.

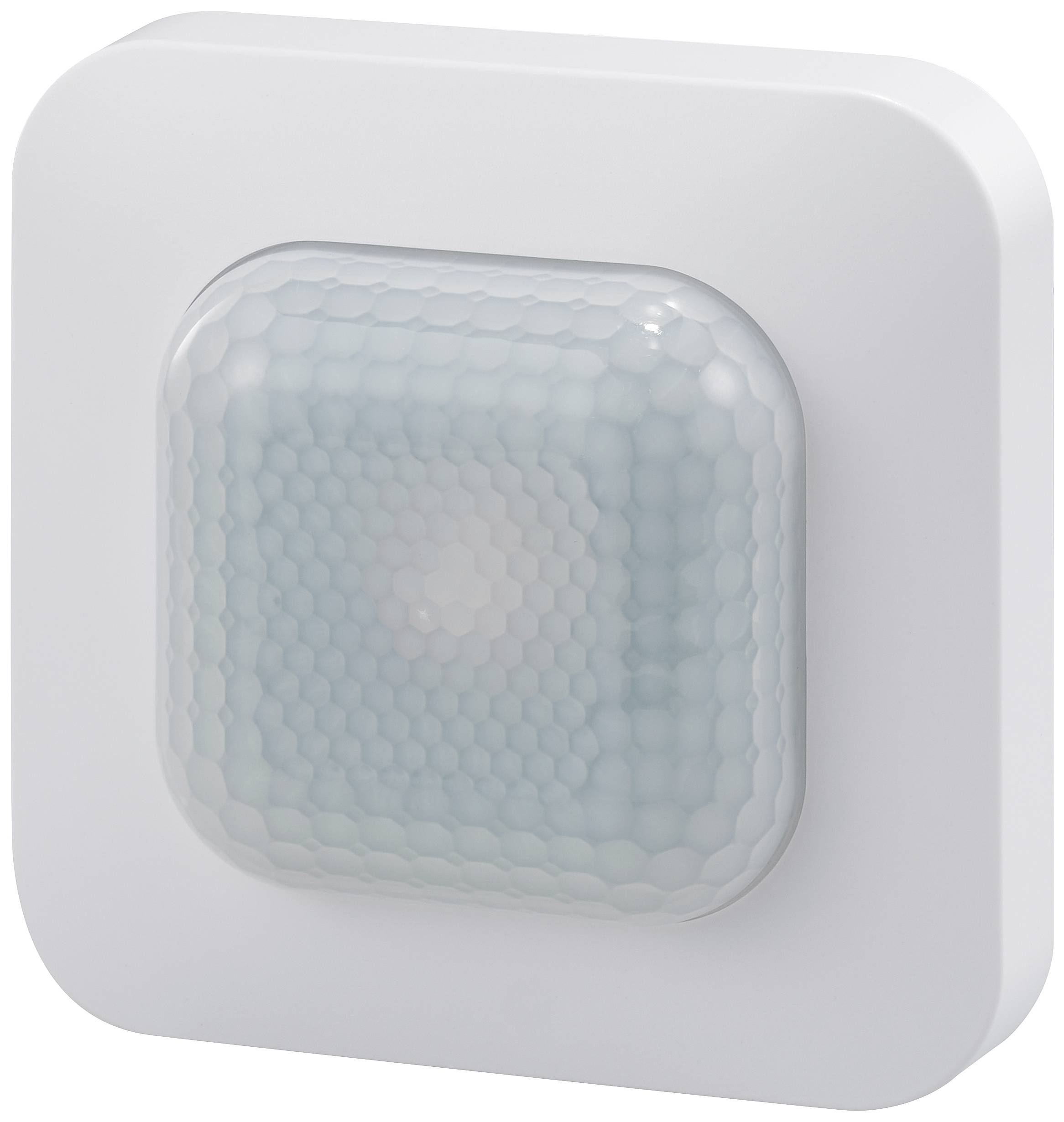

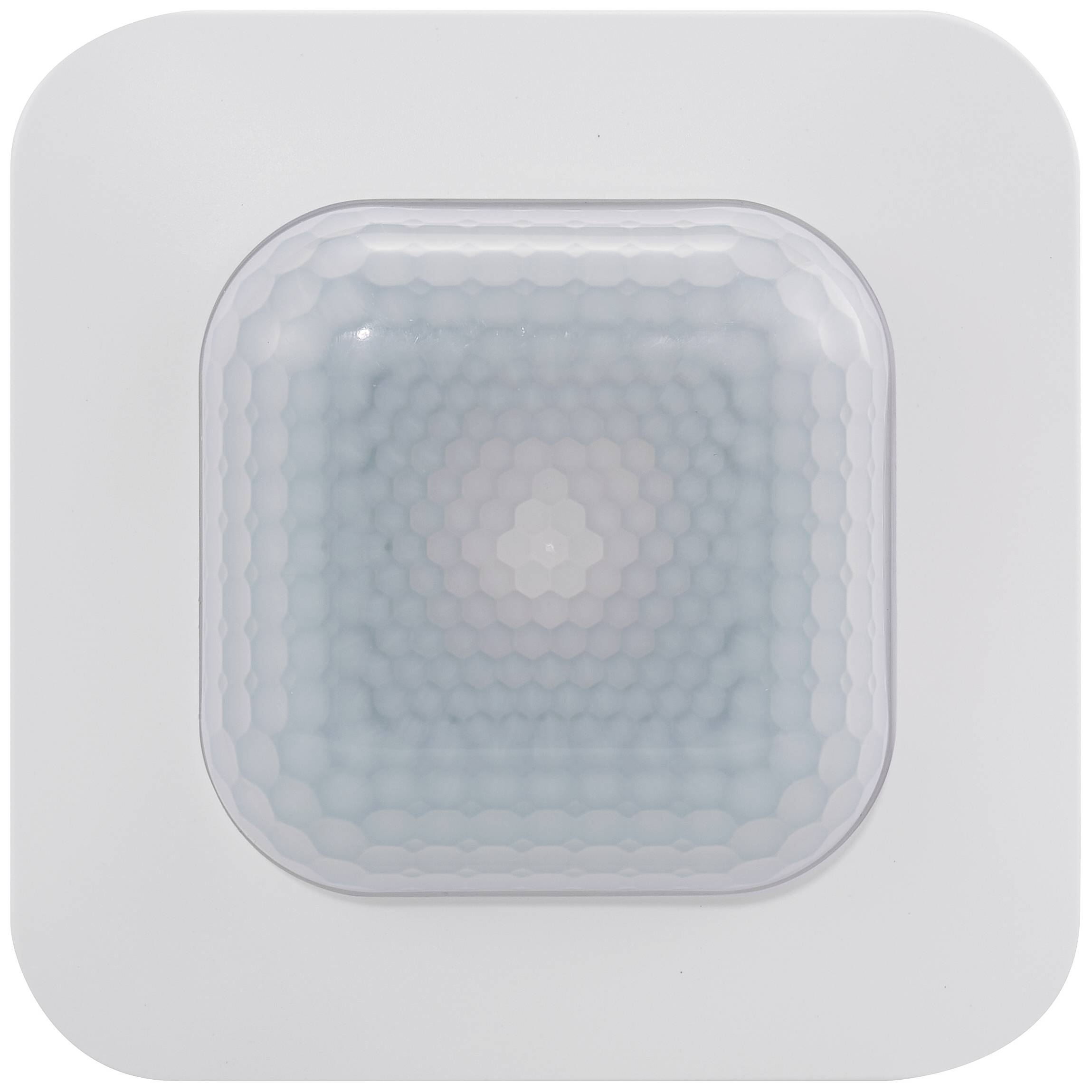

A white square motion sensor with rounded corners and a central, protruding sensor area.

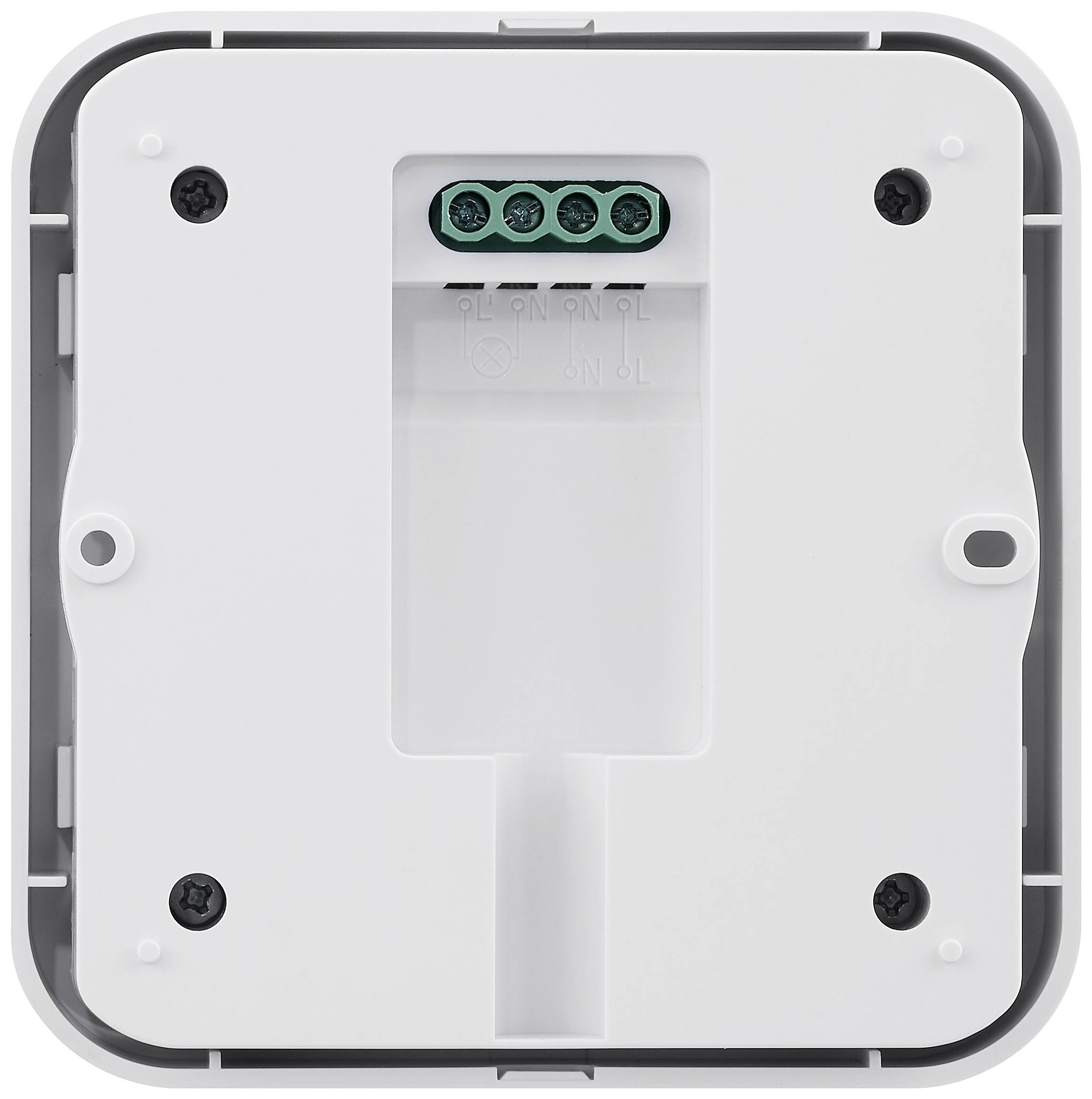

Back of a white device with an open connection area in the centre and four black screws at the corners.

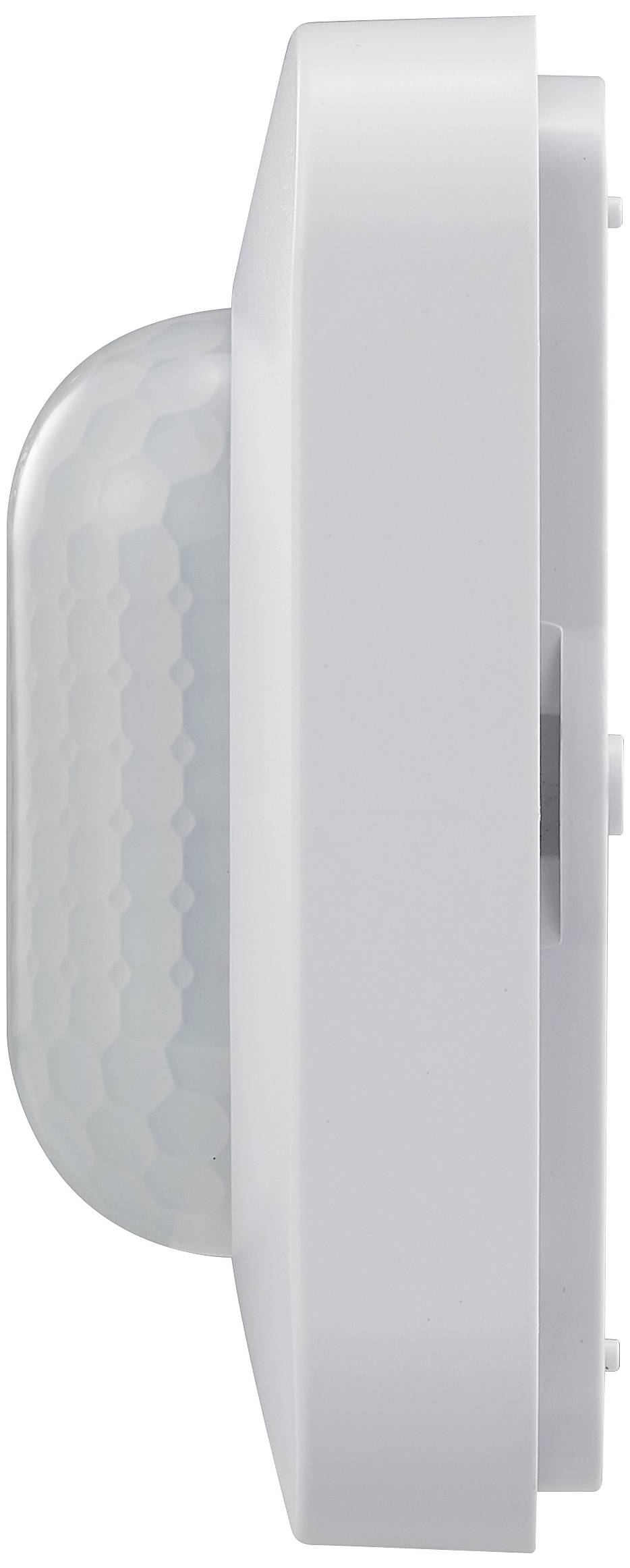

A side-mounted white motion sensor with a curved, translucent cover, presented in a neutral environment.

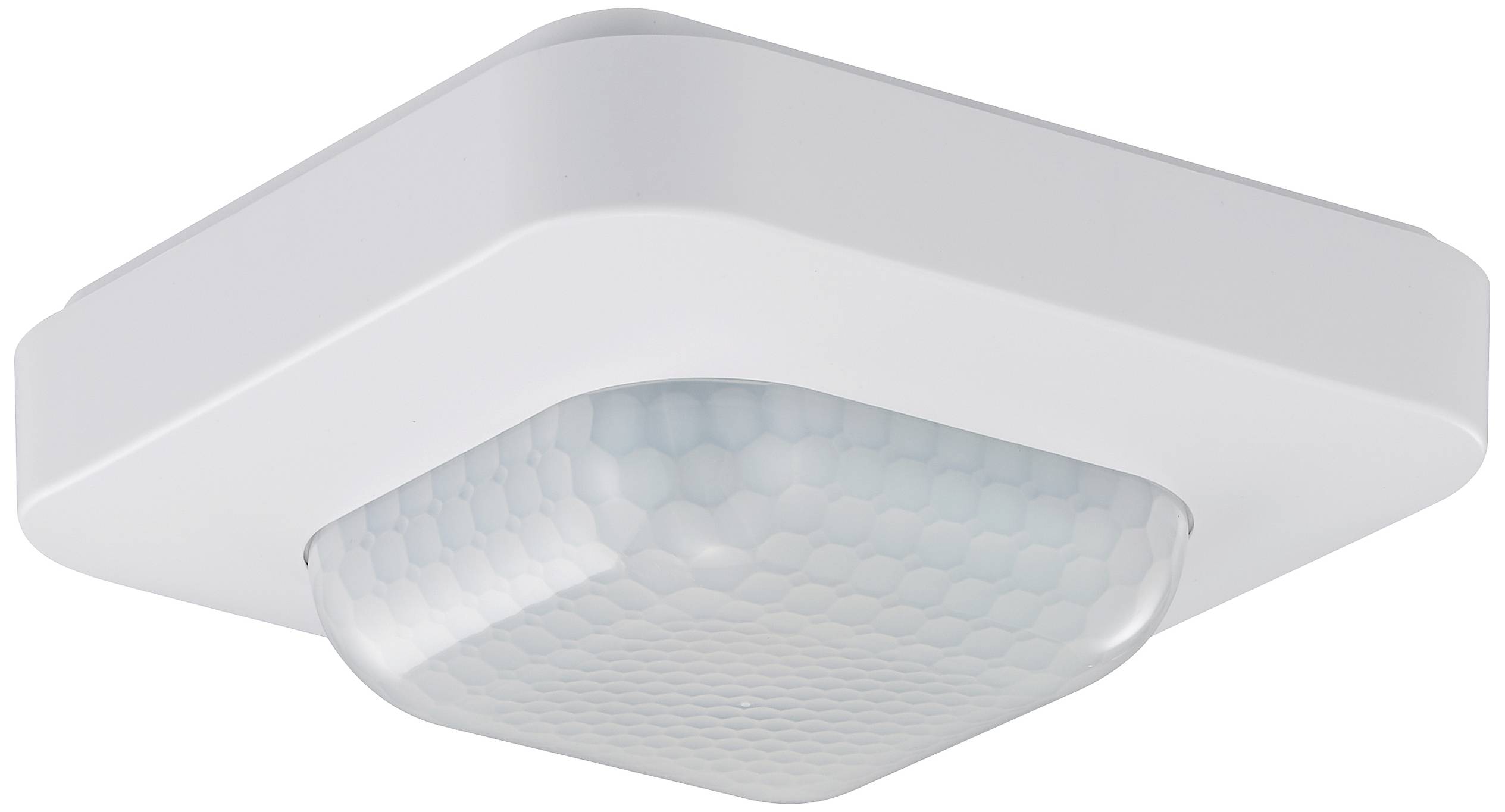

Square, white LED ceiling light with motion sensor, mounted on a ceiling. Ideal for automatic room lighting.

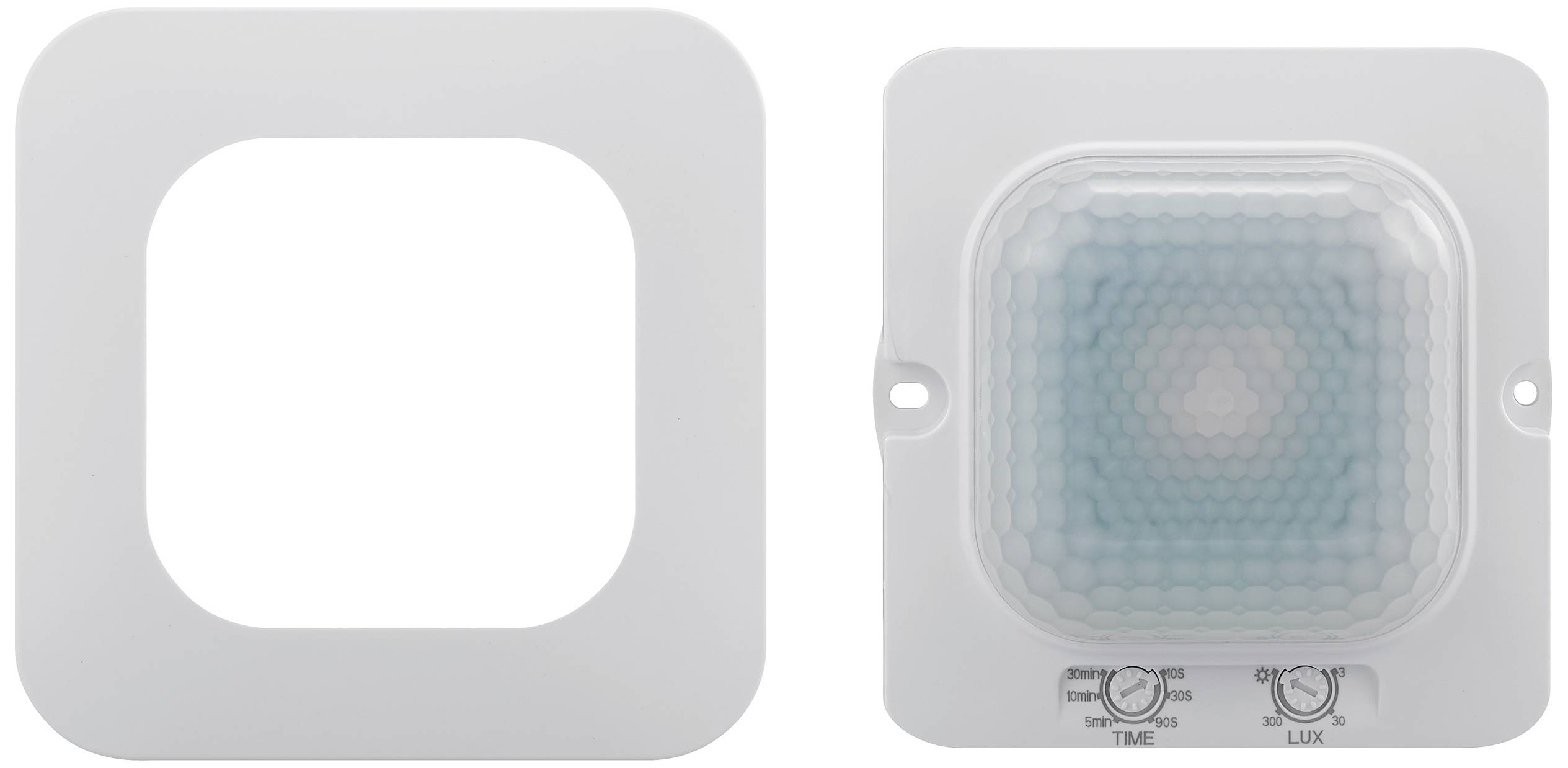

Two white square covers, one with an open inner area and the other with a blue pattern and rotary controls at the bottom.

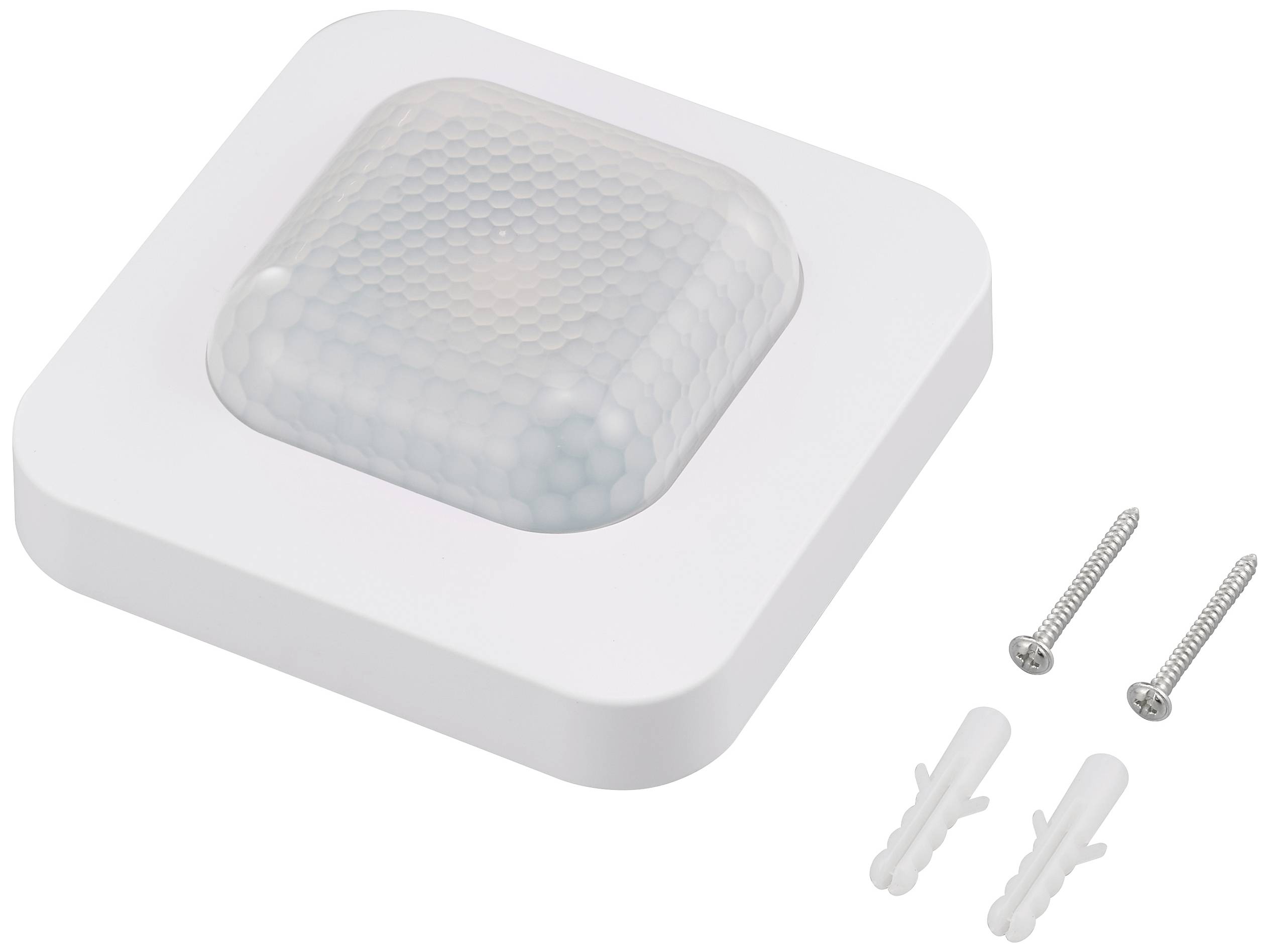

A square motion sensor with a white housing and honeycomb surface, alongside two screws and wall plugs for mounting.
A person in a suit is pulling a wheeled suitcase through a lit hotel corridor.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
175 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

PIR motion sensor, 360°

  • Switches up to 2000W
  • Coverage angle: 360º
  • Detection distance: max. 20m

Our service for you

Technical specifications

Product type

Ceiling-mount occupancy sensor

Detection angle

360°

20 m

Used at

Indoors

Mounting type

Ceiling

Operating voltage

230 V AC

Contact type

Relay

Voltage (max.)

220 V AC

Switching capacity (energy saving bulbs)

1000 W

Switching capacity (light bulbs)

2000 W

Switching capacity (LED)

1000 W

Standby current consumption

0.5 W

Twilight settings

3-2000 lx

Time settings

10s - 30 min

Factory colour

White

Length

100 mm

Width

100 mm

Height

40 mm

Dim

(L x W x H) 100 x 100 x 40 mm

Weight

125 g

Voltage (min.)

240 V AC

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2918269 Sygonix SY-5836538 Ceiling Ceiling-mount occupancy sensor 360 ° Relay White

Warranty Terms

Warranty Terms 2918269 Sygonix SY-5836538 Ceiling Ceiling-mount occupancy sensor 360 ° Relay White

Description

The motion detector is used for detecting motion in an indoor area. It can be installed very easily in entrance areas or staircases.
To illuminate certain points optimally, connect the motion detector to a light, for example. The lamp is switched on or off automatically via the built-in PIR sensor. The sensors respond to temperature changes within the detection range. This is the case, for example, if a person or an animal with a temperature different from the ambient temperature enters the detection area.

This text is machine translated.

Features

  • Infrared motion sensor
  • For incandescent lamps, energy-saving lamps and LED lights

Scope of delivery

  • Sensor
  • 2x Screws
  • 2x Dowels
  • User manual
