Name: Tamiya Squash Van 1:10 RC model car Electric Monster truck 4WD Kit
Brand: Tamiya
SKU: 3013272
Availability: SoldOut

A green monster truck with large tyres and 'Squash Van' written on the side. The vehicle is parked on a flat surface.

Toy model car 'Squash Van' by Tamiya on rough off-road terrain, painted green and white with large tyres.

Toy truck with a sticker saying 'Pump up the good times!' and a pumpkin design on the side. Large tyres emphasise its rugged appearance.

A remote-controlled model car with 'Squash Van' written on the back. It has large wheels and a turquoise rear section.

A black, four-wheeled model car without bodywork. The large tyres and electronics on the chassis are visible.

Enormous black tyre wheel with a white rim from a toy truck. The focus is on the massive structure of the tyre.

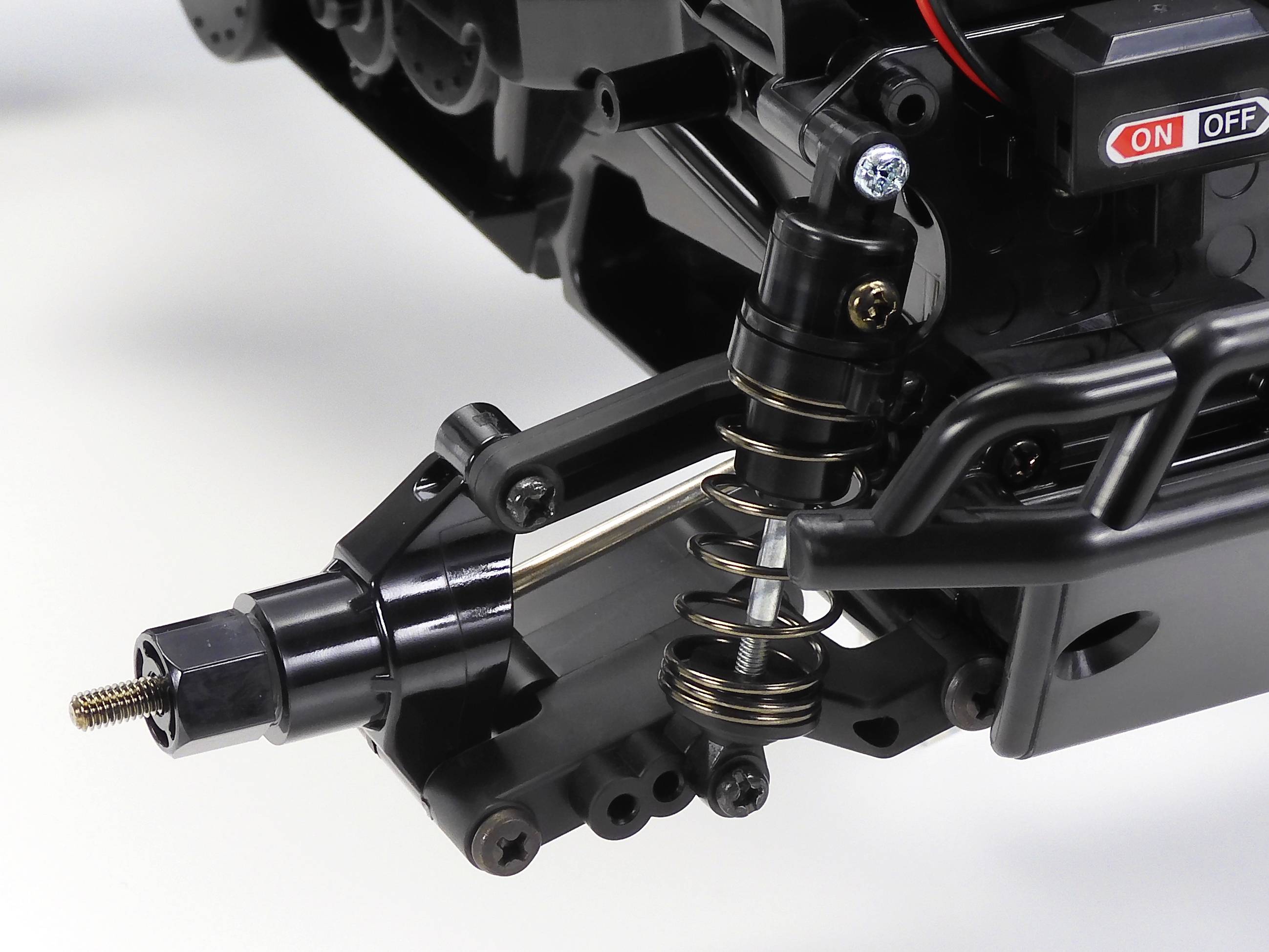

Close-up of an RC car shock absorber, showing a metal spring mechanism and a screw-on mounting.

Close-up of a suspension with damping mechanism on a vehicle chassis. Springs and mountings are clearly visible.

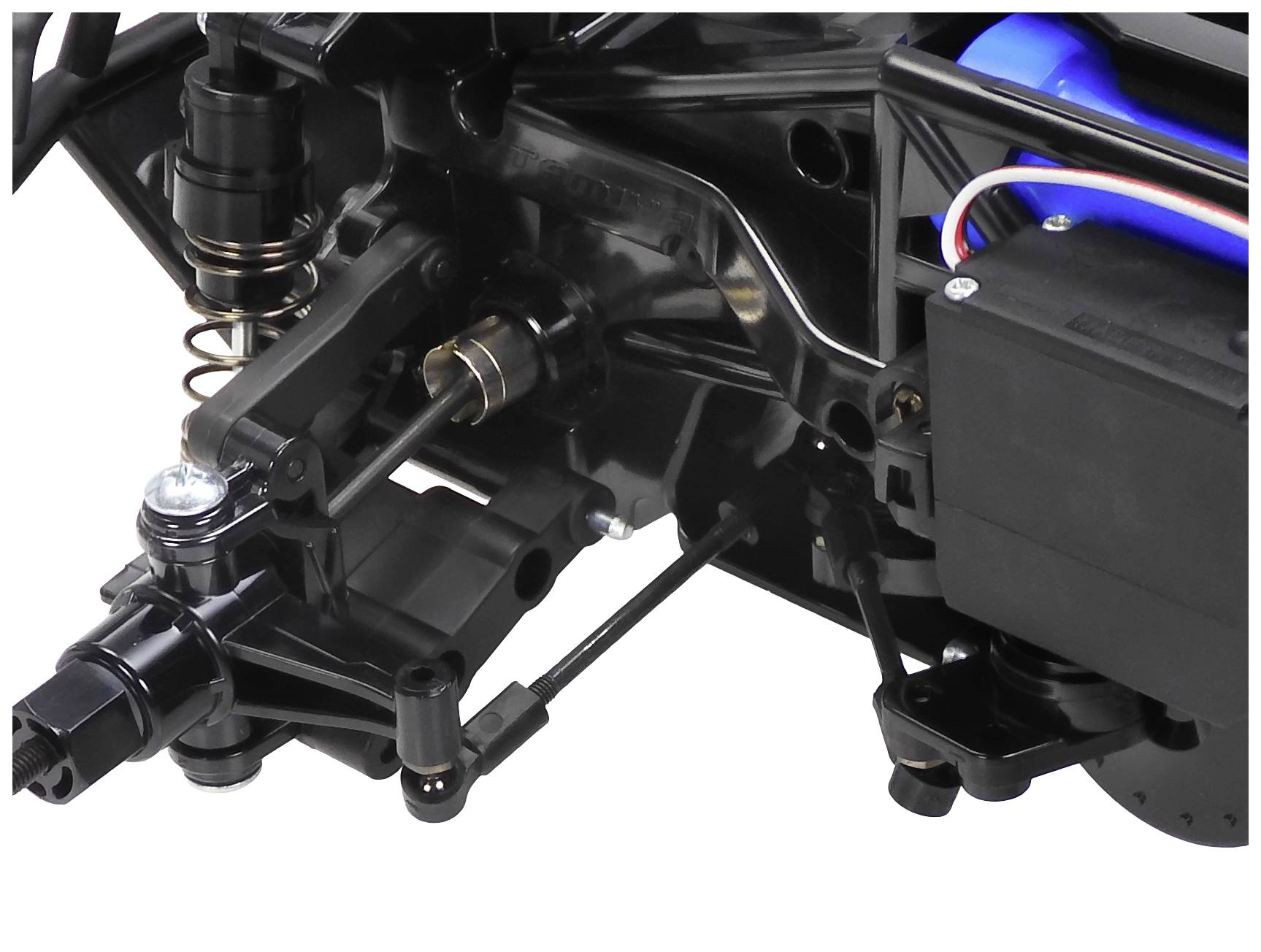

Close-up of a black shock absorber and suspension of a remote-controlled car with a blue component in the background.

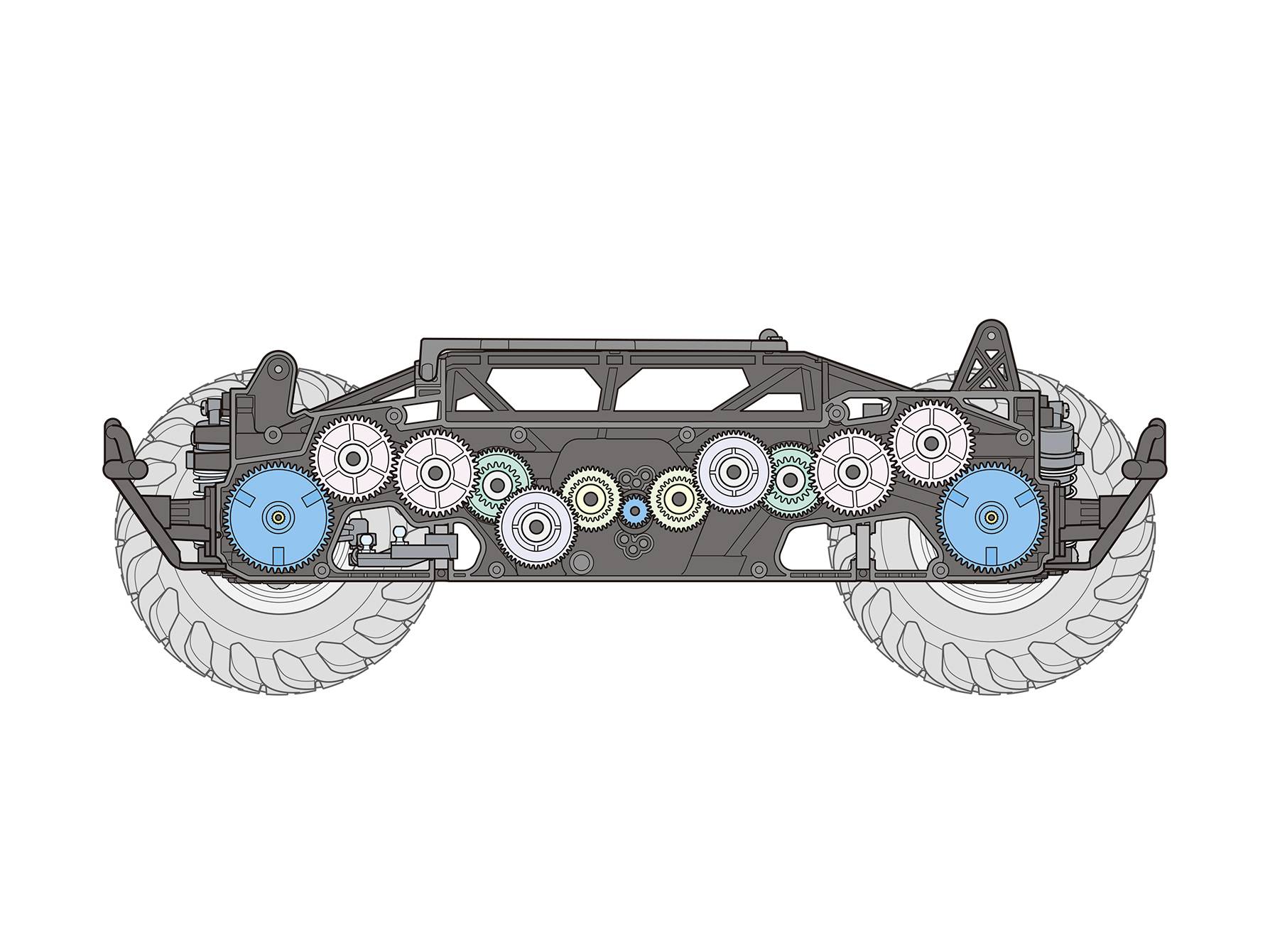

'Illustration of a mechanical chassis with gears and large tyres, showing the internal workings and movement mechanism.'

1/12

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

1:10 RC Squash Van 4WD GF-02

Monster Wheels with 12.3 mm Diameter (Blackfoot Wheels)
Polycarbonate body in the 1950s Vintage look, unpainted
GF-02 chassis with deep-lying motor and cogwheel direct drive at the front and rear axle
Independent suspension on all four wheels with damper

Technical specifications

Product type: RC model car

Model craft type: Monster truck

Scale: 1:10

Drive: 4WD

Motor type: 540 er

Dim: (L x W x H) 454 x 280 x 238 mm

Model version: Kit

Age category: 14 years and over

Engine type: Electric

Width: 280 mm

Height: 238 mm

Length: 454 mm

Wheelbase: 267 mm

Tyre Ø: 123 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3013272 Tamiya Squash Van 1:10 RC model car Electric Monster truck 4WD Kit

Description

Tamiya 50s squash van on the GF-02 chassis.
The Squash Van is a four-wheel drive monster truck with independent suspension on all four wheels. This makes this truck especially suitable for terrains and provides a lot of driving pleasure!
The kit contains an unpainted polycarbonate body, a strong 540-series electric motor and an electronic drive controller.
Due to the deep built-in motor, the GF-02 chassis has a low center of gravity and a stable monocoque chassis. The power transmission to the front and rear axles takes place via gears in the inside of the chassis.

This text is machine translated.

Features

GF-02 chassis with all-wheel drive
Enclosed drive
Monster Wheels with 12.3 mm Diameter (Blackfoot Wheels)
Gear reduction: 18 teeth pinion = 18.03:1 (17 and 20-series pinion can also be installed optionally)
Polycarbonate body in the 1950s Vintage look, unpainted
GF-02 chassis with deep-lying motor and cogwheel direct drive at the front and rear axle
Independent suspension on all four wheels with damper
Electronic drive controller
Incl. 540-series motor

Scope of delivery

4WD kit model
GF-02 chassis
Electr. Cruise control
540-series motor
Enclosed drive
User manual.

Hints

Required accessories: Remote control with receiver, steering servo, 7.2V NiMH battery pack, charger

Description

Features

GF-02 chassis with all-wheel drive
Enclosed drive
Monster Wheels with 12.3 mm Diameter (Blackfoot Wheels)
Gear reduction: 18 teeth pinion = 18.03:1 (17 and 20-series pinion can also be installed optionally)
Polycarbonate body in the 1950s Vintage look, unpainted
GF-02 chassis with deep-lying motor and cogwheel direct drive at the front and rear axle
Independent suspension on all four wheels with damper
Electronic drive controller
Incl. 540-series motor
