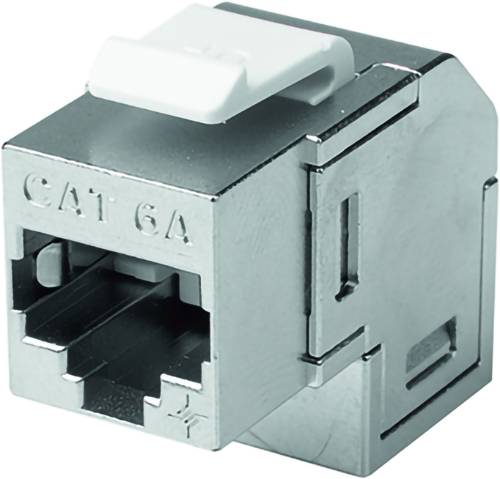

Telegärtner 100023195 AMJ connector Keystone CAT 6A 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
Only 6 Piece(s) available
Technical specifications
- Compatible with
Keystone
- Product type
AMJ connector
CAT 6A
- Mating direction
straight
- Tool-free installation
Yes
- Factory colour
Silver (metallic)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3741984 Telegärtner 100023195 AMJ connector Keystone CAT 6A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3741984 Telegärtner 100023195 AMJ connector Keystone CAT 6A 1 pc(s)
Description
Specifications:
CAT.6A (ISO/IEC) according to IEC 60603-7-51,
CAT.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100,
Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801,
10 Gigabit Ethernet compliant (IEEE 802.3an),
≥750 mating cycles with RJ45/RJ11/RJ12 plugs,
Suitable for PoE+ according to IEEE 802.3at,
With design-capable module mounting AMJ-S Up/0 Flex combined with covers Diverser switch range manufacturer,
Integrated cable clamping for cable diameters up to 9 mm,
Universal, world wide available installation for mounting cutouts of 19.3 x 14.7 mm
Visually monitored test of the RJ45 contact heights,
AMJ-S DD: With integrated protection against damage to the contacts by automatically loosening the plug connection
Notes: Suitable for RJ45/11/12-plug
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Description: Suitable for Class EA (ISO/IEC) channel, 10 Gigabit Ethernet
Short term: AMJ-coupling 90° CAT.6A
This text is machine translated.
CAT.6A (ISO/IEC) according to IEC 60603-7-51,
CAT.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100,
Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801,
10 Gigabit Ethernet compliant (IEEE 802.3an),
≥750 mating cycles with RJ45/RJ11/RJ12 plugs,
Suitable for PoE+ according to IEEE 802.3at,
With design-capable module mounting AMJ-S Up/0 Flex combined with covers Diverser switch range manufacturer,
Integrated cable clamping for cable diameters up to 9 mm,
Universal, world wide available installation for mounting cutouts of 19.3 x 14.7 mm
Visually monitored test of the RJ45 contact heights,
AMJ-S DD: With integrated protection against damage to the contacts by automatically loosening the plug connection
Notes: Suitable for RJ45/11/12-plug
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Description: Suitable for Class EA (ISO/IEC) channel, 10 Gigabit Ethernet
Short term: AMJ-coupling 90° CAT.6A
This text is machine translated.
