Telegärtner 100023197 Junction box CAT 6A 1 pc(s)

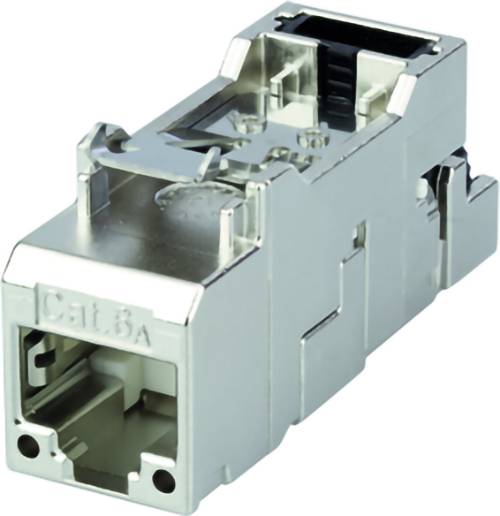

The fully shielded AMJ-S module for 10 gigabit Ethernet uses the transmission technology advantages of the tried and tested connection technology from Telegärtner and offers wiring professionals unprecedented options for their daily wiring jobs. Outstanding features of the new AMJ-S module are its slim design in Keystone format (19.3 x 14.7 mm) with die-cast zinc housing and the proven Telegärtner contact surface protection. In combination with the integrated fine-stage cable clamping and the 360° shield connection the AMJ-S module is a real time saver in the assembly. The IDC insulation displacement terminal in the new AMJ-S module guarantees reliable contacts with solid wires and stranded conductors. Another special feature of the AMJ-S module is its design capability: The AMJ-S module can be easily combined with covers of the switch ranges of all well-known manufacturers.

Specifications:
CAT.6A (ISO/IEC) according to IEC 60603-7-51,
CAT.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100,
Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801,
10 Gigabit Ethernet compliant (IEEE 802.3an),
≥ 750 mating cycles with RJ45/RJ11/RJ12 plugs,
Suitable for PoE+ according to IEEE 802.3at,
With designer module receptacle AMJ-S Up/0 Flex can be combined with covers Diverser Switch program manufacturer,
Integrated cable clamping for cable diameters of up to 9 mm,
Universal, world wide available installation for mounting cutouts of 19.3 x 14.7 mm
Visually monitored test of the RJ45 contact heights

Notes: Tool-free connection technology, suitable for RJ45/11/12-plug
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: 6x2 packaging
Short name: AMJ-S Module CAT.6A (ISO/IEC) T568B

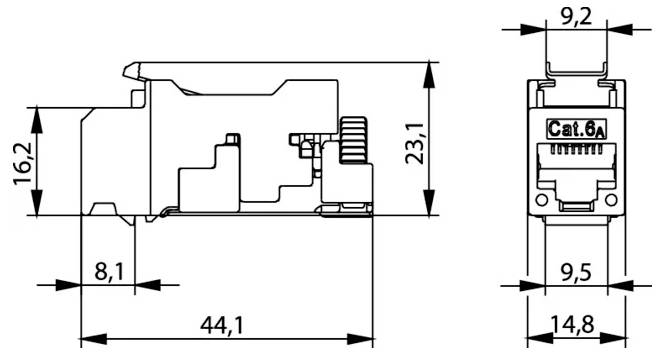

Mounting dimensions Z121

This text is machine translated.
