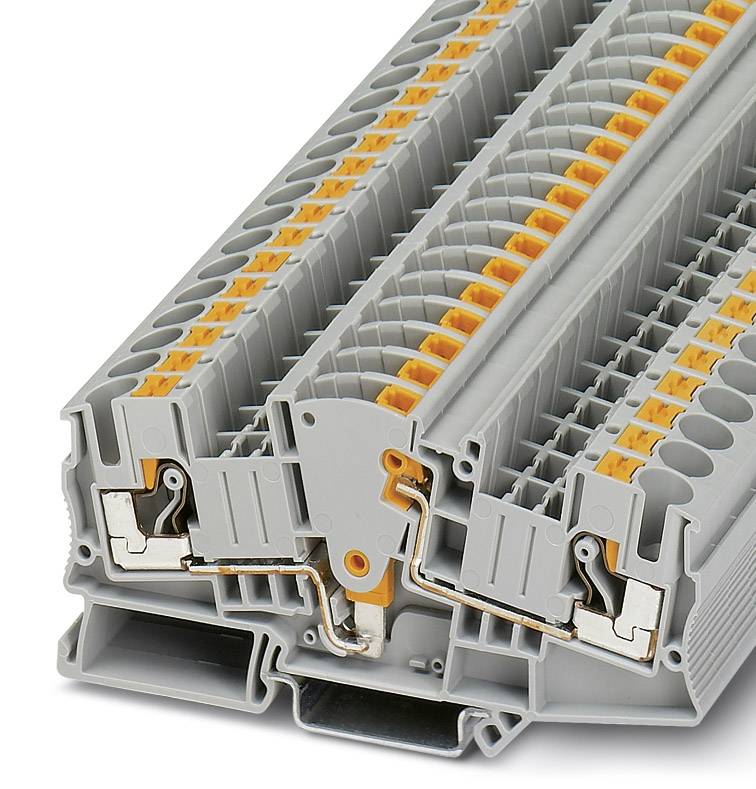

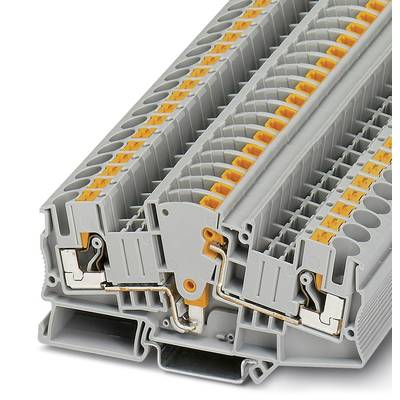

Test disconnect terminal block PTME 6 3212170 Phoenix Contact
Packaging type
Piece
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 7.98 / piece)
€ 399.00
incl. VAT
14-day return policy included
Highlights & Details
Test disconnect terminal block PTME 6
- PTME 6
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ push-in spring bracket
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3212170
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTME 6
- Dim
(L x W x H) 100.8 x 8.2 x 49.6 mm
- Width
8.2 mm
- Height
49.6 mm
- Length
100.8 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718961 Test disconnect terminal block PTME 6 3212170 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718961 Test disconnect terminal block PTME 6 3212170 Phoenix Contact
Description
Test disconnect terminal block, Connection method: Push-in connection, Cross section: 0.5 mm² -10 mm² , AWG: 20 - 10, Width: 8.2 mm, Color: gray
