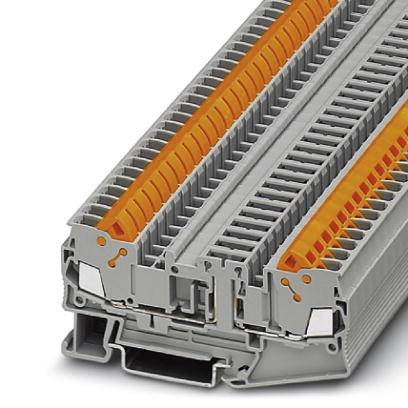

Disconnect terminal block QTC 2,5-TG 3206490 Phoenix Contact
Packaging type
Piece
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.60 / piece)
€ 179.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ solder-free quick-fit connector
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
3206490
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTC 2,5-TG
- Dim
(L x W x H) 82.5 x 6.2 x 39.3 mm
- Width
6.2 mm
- Height
39.3 mm
- Length
82.5 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 587530 Disconnect terminal block QTC 2,5-TG 3206490 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 587530 Disconnect terminal block QTC 2,5-TG 3206490 Phoenix Contact
Description
Disconnect terminal block, Connection type: Quick connection, Cross section: 0.5 mm² - 2.5 mm², AWG: 20 - 14, Nominal current: 20 A, Nominal voltage: 400 V, Length: 82.5 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
