Buy WAGO 236-763 Spring-loaded terminal 2.50 mm² Number of pins 1 Light grey 300 pc(s)

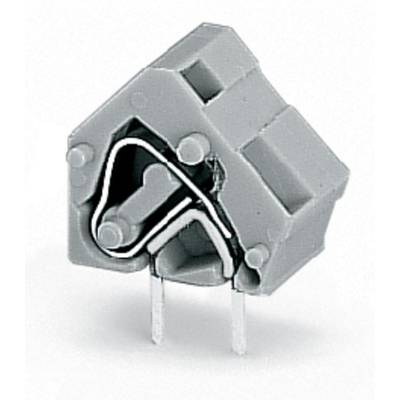

A grey electronic component with two metal pins for mounting on a printed circuit board, likely a connector.

Graph shows current-carrying capacity in amperes at various temperatures (0-105°C) for conductor cross-section 2.5 mm² in accordance with EN 60512-5-2.

'Illustration of a micro switch with dimensions: width 14 mm, height 13 mm, depth 10 mm. Pin spacing 5 mm. Side view and front view shown.'

1/3

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 300 pc(s))

Set(s)

Total (€ 0.38 / piece)

€

Report legal concerns

Highlights & Details

Modular PCB terminal block

Content 300 pc(s)

Technical specifications

PCB MOD.T.B. 2,5SQMM 10MM L-GREY

Features: + CAGE CLAMP®

CS: 10 mm
10.16 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: 236

Min. stripping length: 8 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.08 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Light grey

Wire protection: Yes

Actuation direction: At an angle (to the PCB)

Content: 300 pc(s)

Height: 14.00 mm

Length: 12.20 mm

Width: 17.00 mm

Industrial packaging: Yes

Manufacturer part #: 236-763

Type: 236-763

Nominal voltage: 1000 V

Product type: Spring-loaded terminal

Documents & Downloads

Datasheet

Datasheet 729740 WAGO 236-763 Spring-loaded terminal 2.50 mm² Number of pins 1 Light grey 300 pc(s)

User & Safety Instructions

User & Safety Instructions 729740 WAGO 236-763 Spring-loaded terminal 2.50 mm² Number of pins 1 Light grey 300 pc(s)

WAGO 236-763 Spring-loaded terminal 2.50 mm² Number of pins 1 Light grey 300 pc(s)
