Buy Weller WXR 3032 Vacuum pickup station Digital 420 W, 600 W 100 - 450 °C + tray, + soldering tip, + desoldering pump

Digital soldering station with variable temperature control and multiple tips. Includes stand with cleaning pads.

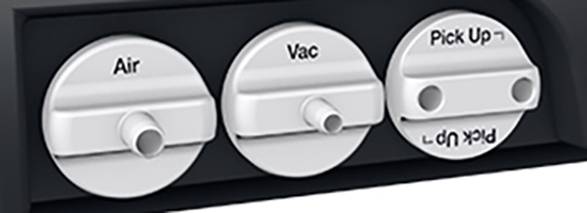

Three round buttons with labels: 'Air', 'Vac', 'Pick Up'. Each button has a central switch for turning.

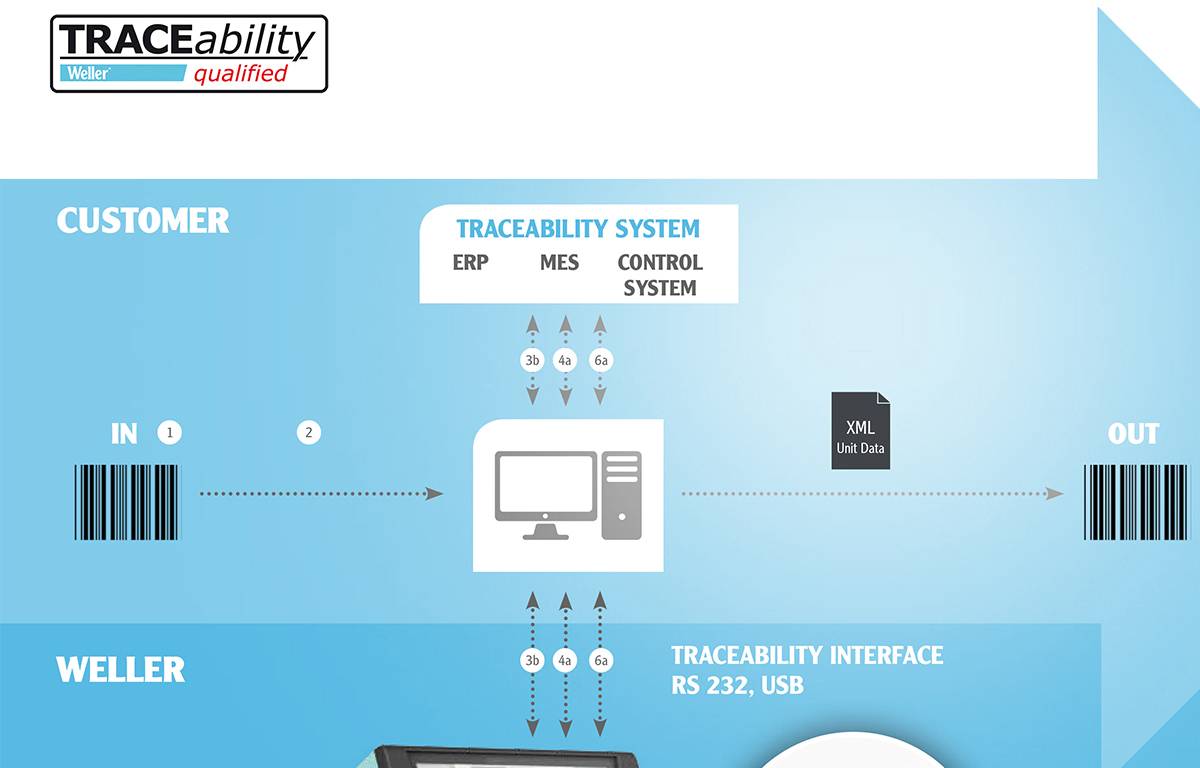

Diagram shows a traceability system. Data flows from 'Customer' with barcode through ERP, MES, control system to 'Out'. Connections via RS 232, USB.

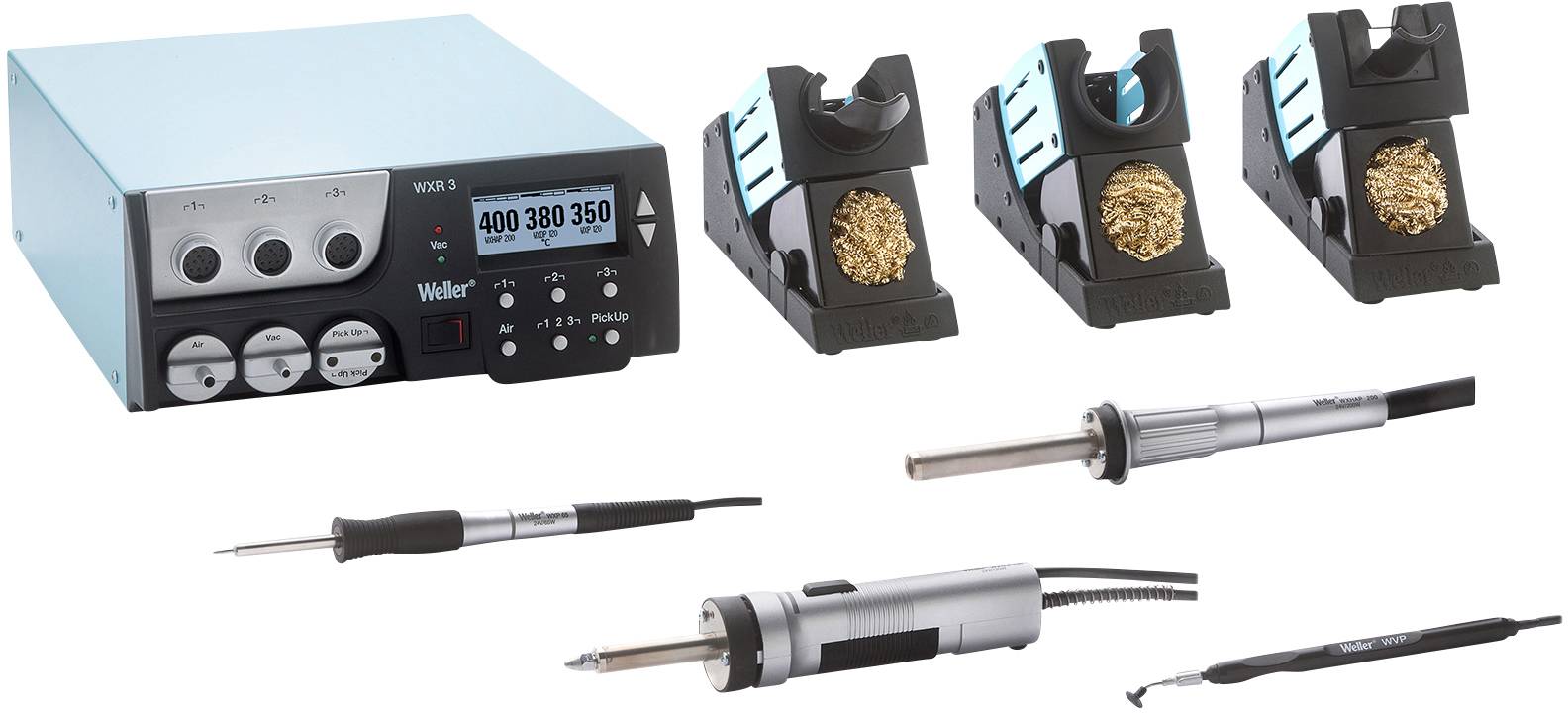

Soldering Station Set: Control unit with digital display, three soldering iron holders with cleaning inserts, two soldering irons and a pair of tweezers.

Black rectangular box with white text 'WX compatible', symbol for technical compatibility.

1/6

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,705.04 / piece)

€ 3,705.04

plus VAT.

Report legal concerns

Highlights & Details

Weller WXR 3032 3-channel rework station, 420 W (600 W)

The WXR 3 is a 3-channel¬station with a total output of 600 W. The multifunctional WXR 3 is suitable for all applications, all WX tools can be connected
2 integrated pumps make the system independant of external compressed air. A high-performance pump for vacuum and hot air, as well as an independant vacuum pump for pick-up tools

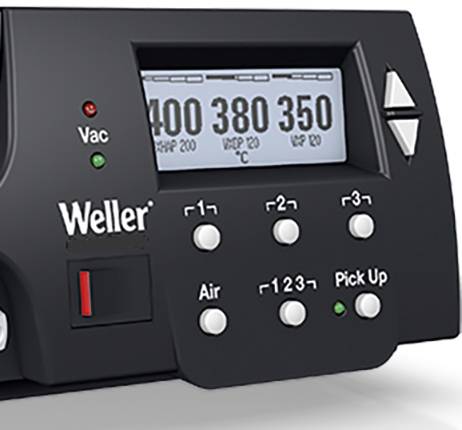

All connected tools are displayed on the illuminated LC display. Special functions can be set simply by pressing a button
Enables soldering or desoldering of large SMT components up to 30 x 30 mm
WVP vacuum pipette, move components easily and safely
The intelligent power management enables the available power to be distributed on demand to the connected tools – with a total power of 600 watts. Thus, high-performance tools can be operated simultaneously. 3 channels with 200 watts each

Technical specifications

Product type: Vacuum pickup station

Max. power: 420 W
600 W

Power supply (LOV): mains-powered

Max. temperature: 450 °C

Display: Digital

Dim: (L x W x H) 273 x 235 x 102 mm

Max. air volume: 15 l/min

Operating voltage: 230 V

Weight: 6.7 kg

Weight, information: approx.

Soldering iron features: + tray
+ soldering tip
+ desoldering pump

Width: 235 mm

Height: 102 mm

Length: 273 mm

Min. temperature: 100 °C

Vacuum pressure (max.): 0.7 bar

Documents & Downloads

Datasheet

Datasheet 2177636 Weller WXR 3032 Vacuum pickup station Digital 420 W, 600 W 100 - 450 °C + tray, + soldering tip, + desoldering pump

User & Safety Instructions

User & Safety Instructions 2177636 Weller WXR 3032 Vacuum pickup station Digital 420 W, 600 W 100 - 450 °C + tray, + soldering tip, + desoldering pump

Information

Information 2177636 Weller WXR 3032 Vacuum pickup station Digital 420 W, 600 W 100 - 450 °C + tray, + soldering tip, + desoldering pump

Description

The WXR 3 rework station is the perfect solution for all soldering, desoldering and hot air tasks. The most difficult challenges can be overcome safely, but the WXR 3 is also perfectly suitable for standard Arbeten. Thanks to the simple parameterization of all devices, even large production plants can work quickly and safely. The station can also be integrated into a traceability process.
