Buy Akyga Laptop PSU 45 W 19.5 V DC 2.31 A

A black power supply with cable, suitable for powering electronic devices. The adapter has three socket slots on one side.

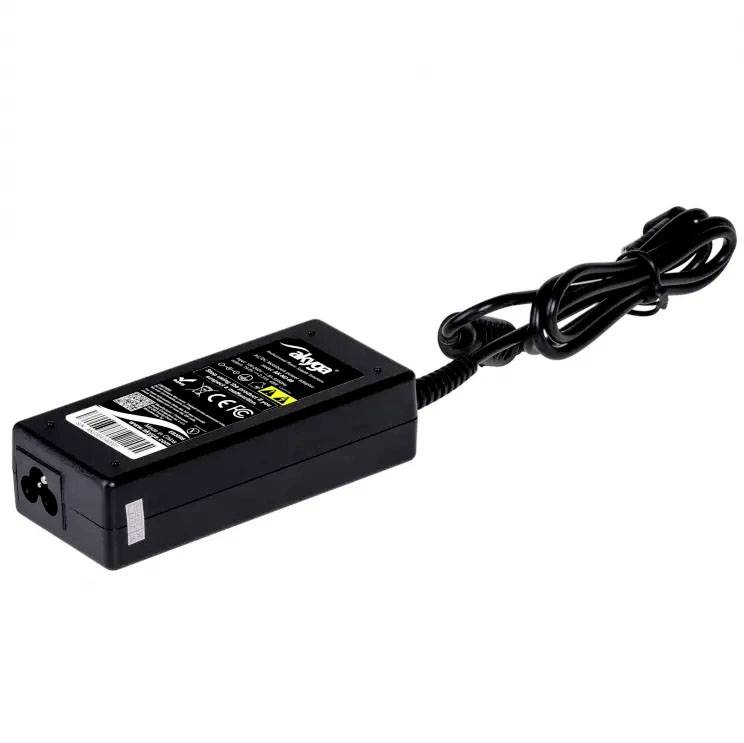

Black power supply with labels on the top surface, connected power cable, suitable for electronic devices.

Cardboard packaging of a universal laptop charger by Akyga, model AK-ND-69, on a white background, with environmental certification mark.

Black laptop power adapter with an angled connector. Labelling shows 'Pin 3.0 mm' and '4.5 mm'. Voltage and power: 19.5 V, 2.31 A, 45 W.

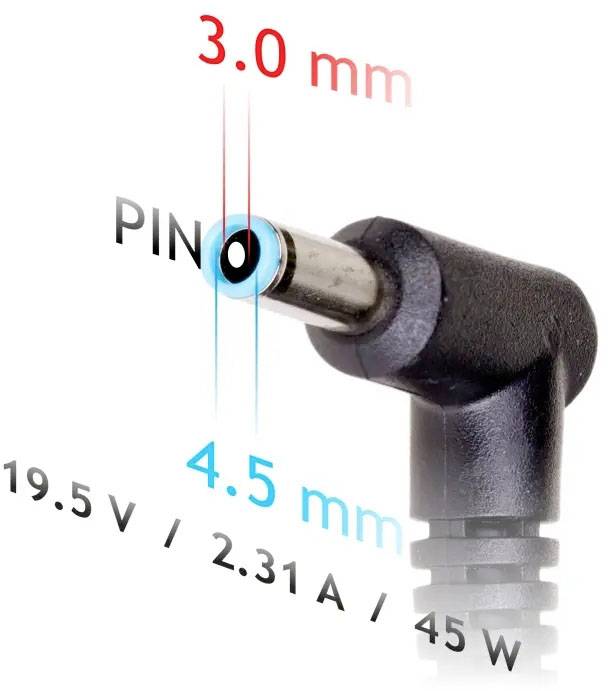

Power adapter marked with dimensions: 3.0 mm outer, 4.5 mm inner, PIN in the centre. Details: 19.5 V, 2.31 A, 45 W.

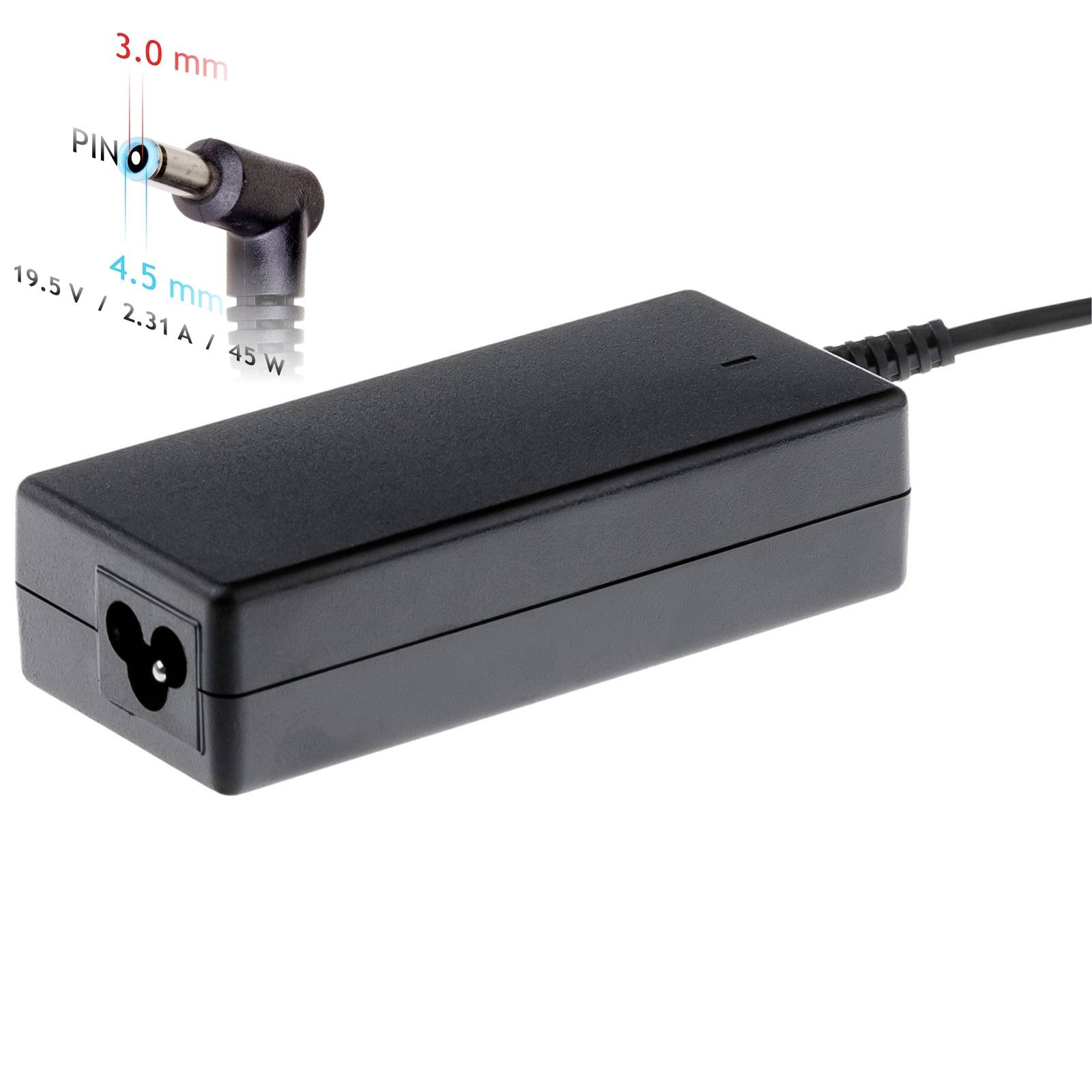

A black laptop power adapter with an L-shaped plug. The plug has an outer diameter of 4.5 mm and a pin of 3.0 mm.

1/6

Datasheet (PDF)

Fast track dispatch on Tue, 29 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

AC power supply for Netbook AK-ND-69

Highlights & Details

/ 2.31 A
45 W Power
Used at: Indoors, Mains socket
Input voltage range 100 -250 V AC
Suited for notebooks from

Technical specifications

Product code: AK-ND-69
Efficiency > 80%
Ferrite filter: Yes
Supply cable in the set: No.
ABS casing material
MTBF: 100000 h
Power consumption < 1.5 A
Working temperature 5 - 50 °C.

Product type: Laptop PSU

Type: AK-ND-69

: 45 W

Input voltage: 100 -250 V AC

Output voltage: 19.5 V DC

Output current (max.) - rounded: 2.31 A

Max. output current: 2.31 A

Dim: (L x W x H) 114 x 49 x 30 mm

Length: 114 mm

Width: 49 mm

Height: 30 mm

Weight: 192 g

Factory colour: Black

Used at: Indoors
Mains socket

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2355165 Akyga Laptop PSU 45 W 19.5 V DC 2.31 A

User & Safety Instructions

User & Safety Instructions 2355165 Akyga Laptop PSU 45 W 19.5 V DC 2.31 A

Warranty Terms

Warranty Terms 2355165 Akyga Laptop PSU 45 W 19.5 V DC 2.31 A

Description

Akyga® AK-ND-69 is a reliable power supply for HP 4.5 x 3.0 mm laptops + pin input connector. The device has high-quality components, which ensure optimum notebook charging parameters of 19.5 V and 2.31 A. Protection against the most common threats to power supplies (OVP, OCP, OPP, OTP, SCP, UVP) not only protect the power supply, but also the laptop battery. The universal design of the charger fits in the style of most laptop models. Each time we recommend you use our laptop search engine.
