Basi 9210-5512 Room door lock Silver

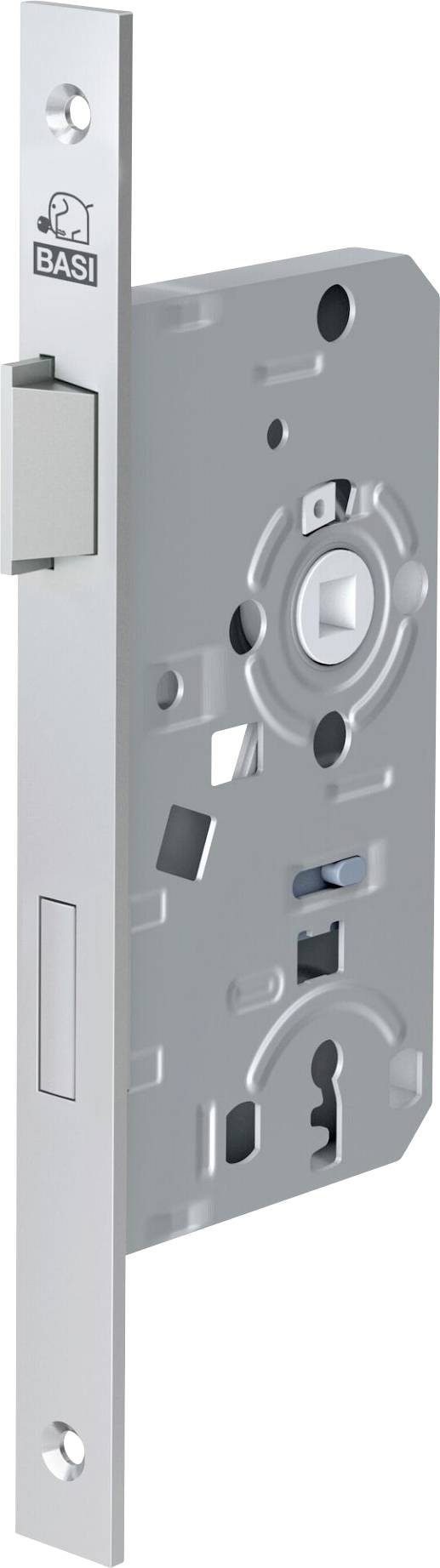

'BASI 72' silver mortise lock mechanism with multiple slots and components, designed for door installation.

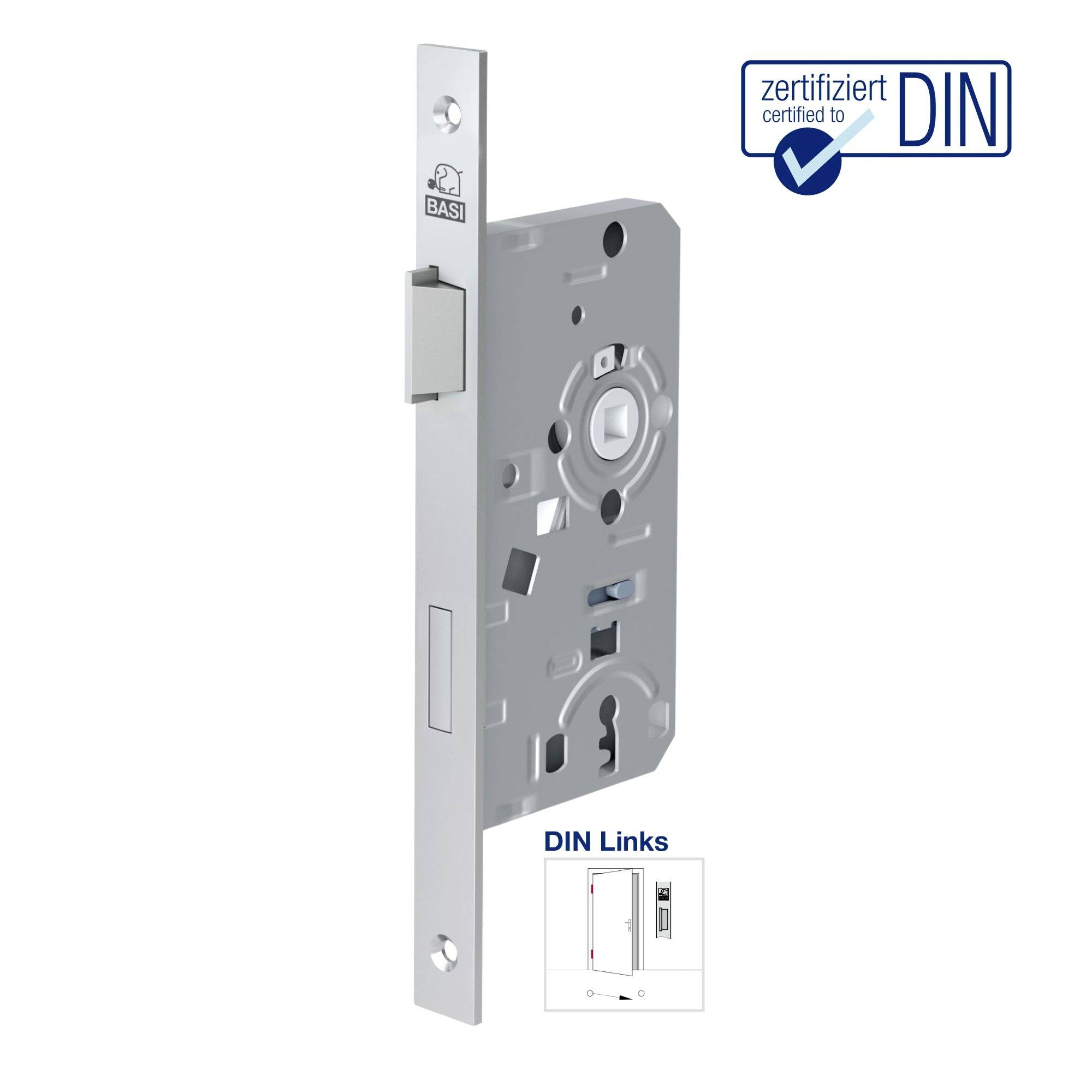

Door lock mechanism by BASI, certified in accordance with DIN standard. Visible components include bolt and keyhole opening.

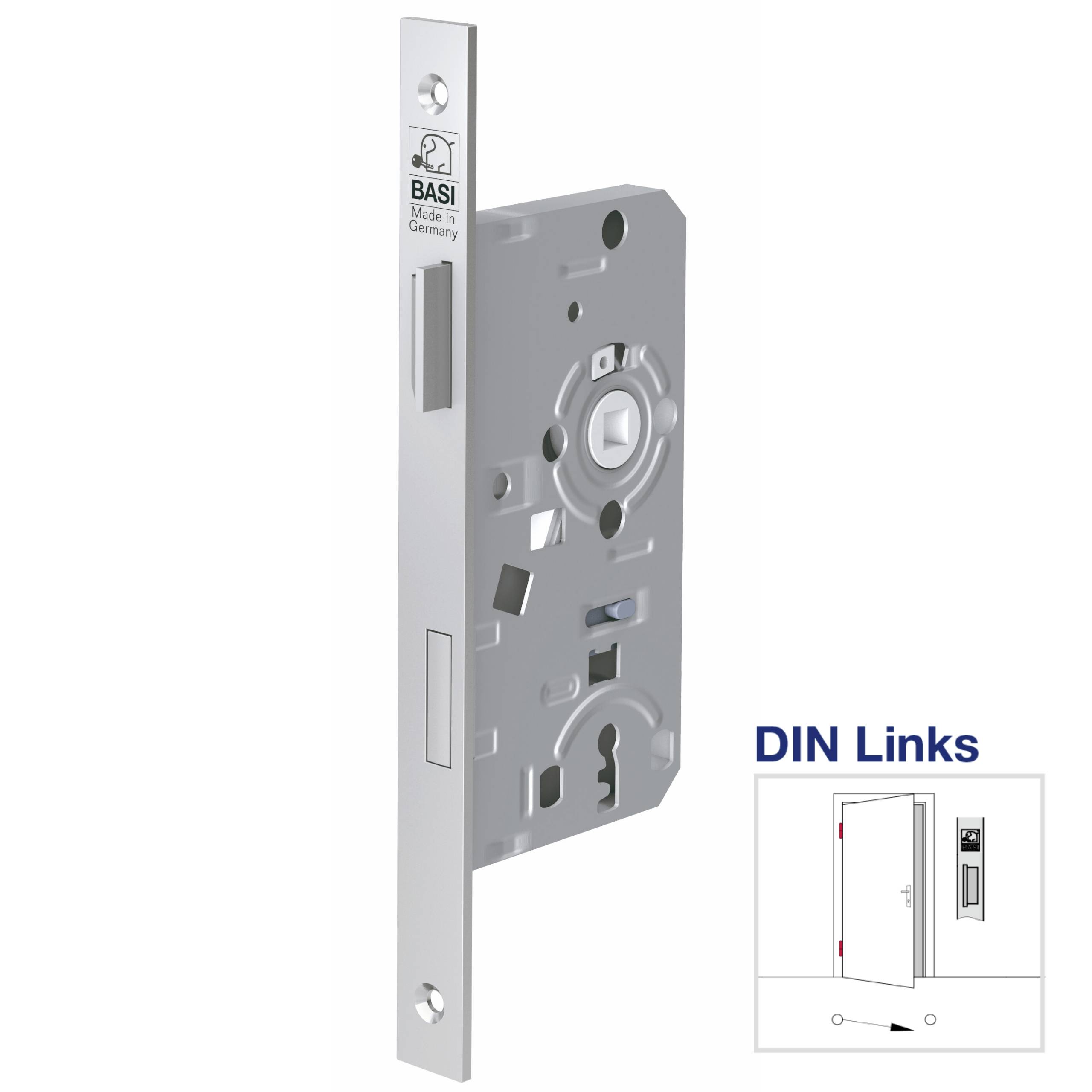

A BASI door lock, DIN left-hand, silver with a technical assembly drawing in the bottom right corner.

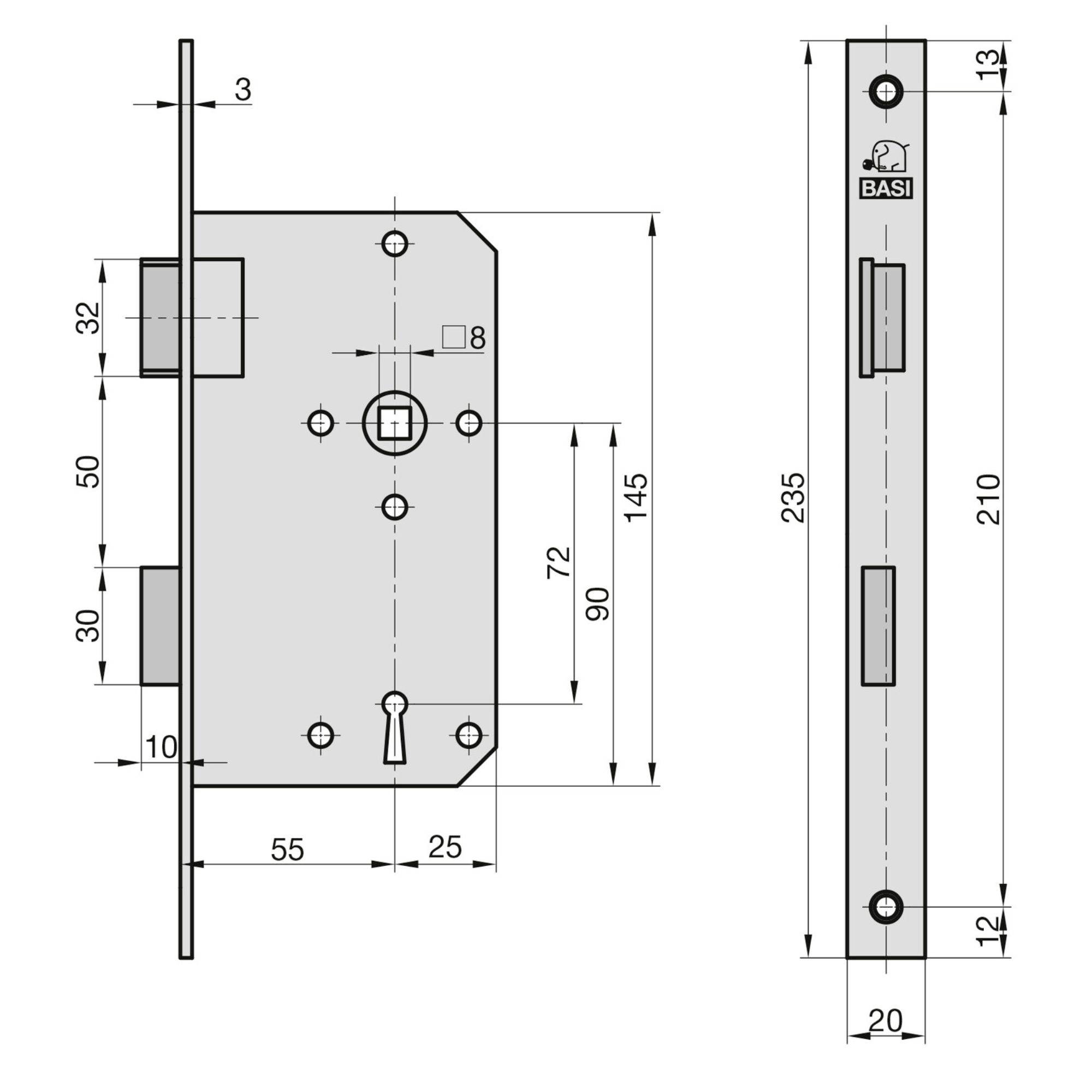

'Technical drawing of a door lock mechanism with measurements: main rectangular lock body is 145x50mm, showing various part dimensions.'
'Illustration of a mortice lock with descriptions of the frame rebate, frame width measurement and spindle measurement. Instructions for correct measurement and ordering.'
1/5
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 9.49 / piece)
€ 9.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Plug-in-room door lock

  • Plug-in lock for room doors with BB-colored hole
  • Cuff: 20 mm käntig, nickel-silver painted
  • Material trap/latch: Plastic
  • Mandrel dimension: 55 mm, distance: 72 mm, square: 8 mm
  • Tested according to DIN 18251-1, class 1

Technical specifications

Product type

Room door lock

Dim

(L x W) 235 mm x 85 mm

Factory colour

Silver

Width

85 mm

Length

235 mm

Depth

20 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1929463 Basi 9210-5512 Room door lock Silver

Information

Information 1929463 Basi 9210-5512 Room door lock Silver

Description

BASI plug-in lock - ES 921 - ideal for indoor use. The plug-in lock with colored-colored lock is suitable for installation in room doors. The lock has a square stem with a width of 20 mm. The case is made of plastic and is available for DIN right and DIN left doors.

This text is machine translated.

Features

  • Plastic case/latch
  • Nickel-silver painted
