Brennenstuhl 1171910 Wall Motion detector 240 ° Anthracite IP44
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.

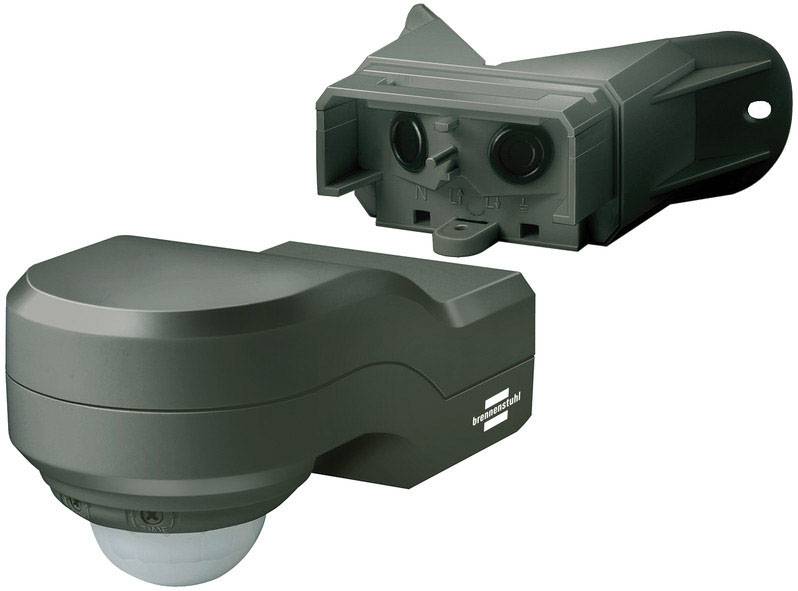

Brennenstuhl motion detector infrared / movement sensor
Highlights & Details
- Infrared motion sensor with adjustable brightness (10 - 150 Lux) and duty cycle (10 sec. - 4 min.)
- Outdoor motion sensor with 240 ° horizontal detection angle and max. 12 m range
- The breaking capacity is for: Incandescent bulbs max. 1000 Watt - energy saving lamps max. 300 Watt - LED lamps max. 100 Watt
- For automatic on and off of lights, halogen lamps, energy saving lamps and LED lamps
Technical specifications
- Product type
Motion detector
- Detection angle
240°
12 m
- Used at
Outdoors
Indoors
- Mounting type
Wall
- Operating voltage
230 V
- Switching capacity
1000 W
- Switching capacity (energy saving bulbs)
300 W
- Switching capacity (LED)
100 W
- Twilight settings
10 - 150 lx
- Time settings
10 s - 4 min
- Factory colour
Anthracite
IP44
- Operating temperature
-20 °C - + 40 °C
- Length
220 mm
- Width
120 mm
- Height
80 mm
- Dim
(L x W x H) 220 x 120 x 80 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2194473 Brennenstuhl 1171910 Wall Motion detector 240 ° Anthracite IP44
User & Safety Instructions
User & Safety Instructions 2194473 Brennenstuhl 1171910 Wall Motion detector 240 ° Anthracite IP44
Description
The Brennenstuhl PIR 240 IP44 infrared motion detector is an automatic motion sensor with a detection angle of 240° and a maximum range of 12 meters. It is suitable for use indoors and outdoors (IP44). The duty cycle can be flexibly controlled from approx. 10 seconds up to approx. 4 minutes. It also impresses with the following features:
* Response brightness adjustable from 10 - 150 Lux
* Switching capacity max. 1000 watts (light bulb), max. 300 watts (energy-saving bulb) or max. 100 watts (LED)
* Vertically and horizontally adjustable
* With corner bracket
* Voltage 230 V.
This text is machine translated.
* Response brightness adjustable from 10 - 150 Lux
* Switching capacity max. 1000 watts (light bulb), max. 300 watts (energy-saving bulb) or max. 100 watts (LED)
* Vertically and horizontally adjustable
* With corner bracket
* Voltage 230 V.
This text is machine translated.
Scope of delivery
- 1x infrared motion sensor PIR 240 for indoor and outdoor, color: Anthracite - in the best quality from Brennenstuhl®
