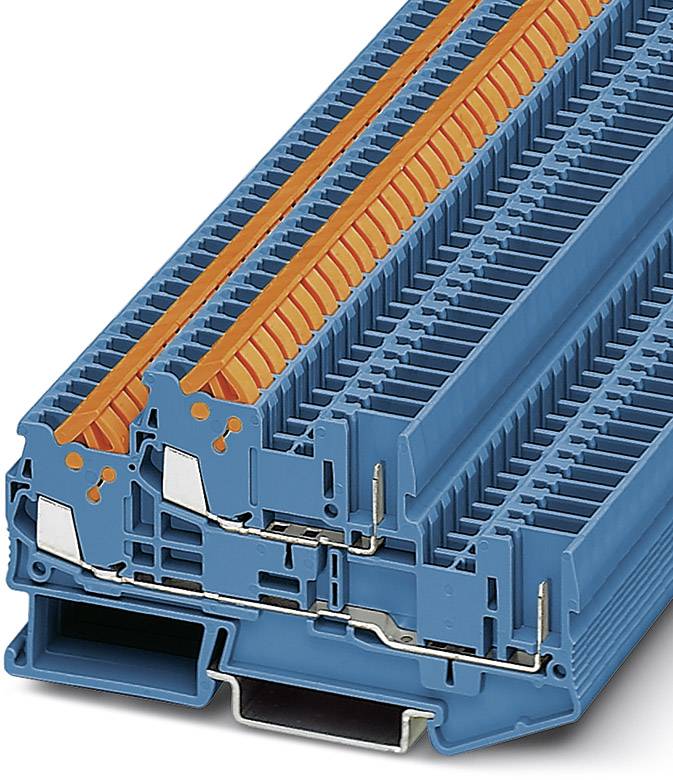

Double-level terminal block QTTCB 1,5/ 2P BU 3050206 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Dual port terminal
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.19 / piece)
€ 159.66
plus VAT.
Only 2 Set(s) available
Highlights & Details
Double-level terminal block QTTCB 1,5/ 2P BU
- QTTCB 1,5/ 2P BU
Technical specifications
- Product type
Dual port terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
22
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
3050206
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTTCB 1,5/ 2P BU
- Dim
(L x W x H) 87.8 x 5.2 x 49.9 mm
- Width
5.2 mm
- Height
49.9 mm
- Length
87.8 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715245 Double-level terminal block QTTCB 1,5/ 2P BU 3050206 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715245 Double-level terminal block QTTCB 1,5/ 2P BU 3050206 Phoenix Contact
Description
Double-level terminal block, Connection method: Fast/plug-in connection, Cross section: 0.25 mm² - 1.5 mm², Width: 5.2 mm, Color: blue, Mounting: NS 35/7,5, NS 35/15 / Ex data new / /
Hints
Special order, no right of withdrawal.
