Feed-through terminal block UK 35 BU 3008025 Phoenix Contact

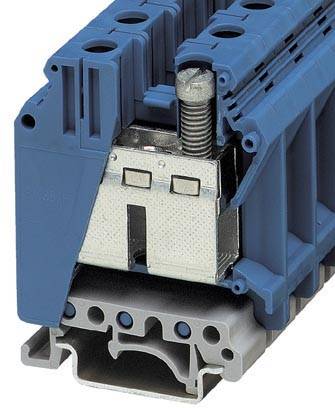

A blue electrical terminal block with a metal screw, detailed view of the connections, shows robust construction and clear labelling.
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
16 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 11.70 / piece)
€ 585.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block UK 35 BU

  • UK 35 BU

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.75 mm²

Cross section (flexible) (max.)

35 mm²

Cross section (inflexible) (min.)

0.75 mm²

Cross section (inflexible) (max.)

50 mm²

AWG (min.)

18

AWG max.

2

Clamp width

15.1 mm

No. of rows

1

Number of pins

2

Factory colour

Blue

Nominal current

125 A

Nominal current - rounded value

125 A

Nominal voltage

1000 V

Stripping length (max.)

16 mm

Manufacturer part #

3008025

Content

50 pc(s)

Industrial packaging

Yes

Type

UK 35 BU

Dim

(L x W x H) 50 x 15.1 x 62 mm

Width

15.1 mm

Height

62 mm

Length

50 mm

Contamination level

3

Flammability rating

V0

Connector colour

Blue

Insulation material

PA

Insulation

PA

Documents & Downloads

Datasheet

Datasheet 565249 Feed-through terminal block UK 35 BU 3008025 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565249 Feed-through terminal block UK 35 BU 3008025 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.75 mm² - 50 mm², AWG: 18 - 0/1, Width: 15.1 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, NS 32
