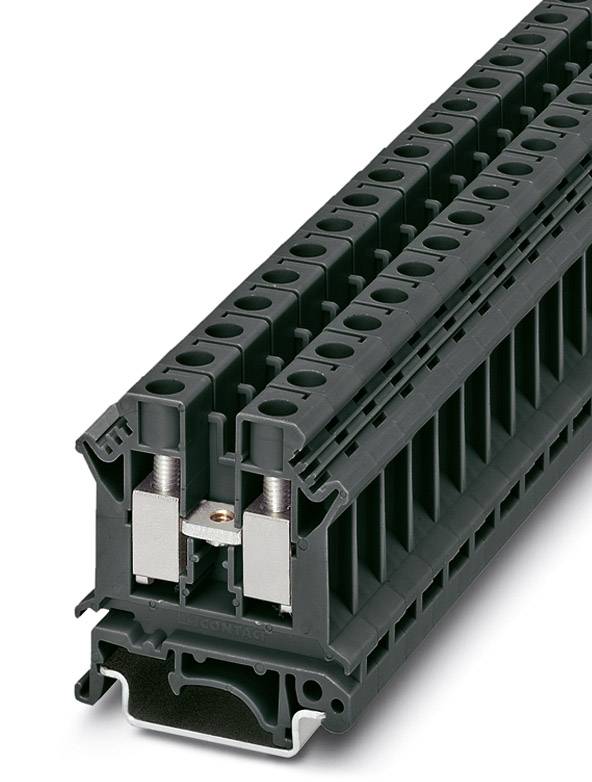

Feed-through terminal block UK 6 N BK 0719236 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.20 / piece)
€ 159.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
Explosion-proof
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
8
- Clamp width
8.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Black
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
0719236
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 6 N BK
- Dim
(L x W x H) 42.5 x 8.2 x 47 mm
- Width
8.2 mm
- Height
47 mm
- Length
42.5 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565797 Feed-through terminal block UK 6 N BK 0719236 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565797 Feed-through terminal block UK 6 N BK 0719236 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Number of positions: 1, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 8.2 mm, Color: black, Mounting type: NS 35/7,5, NS 35/15
