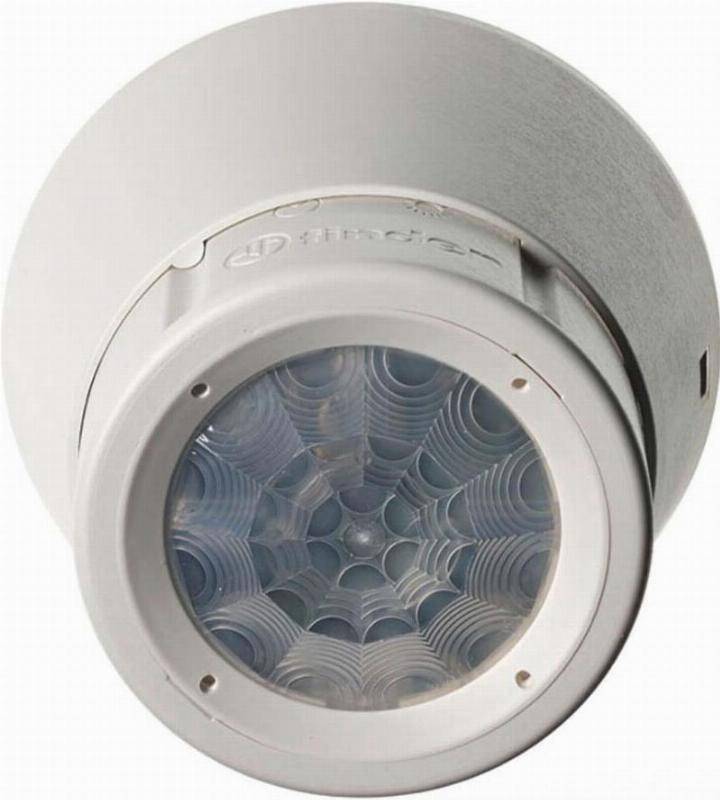

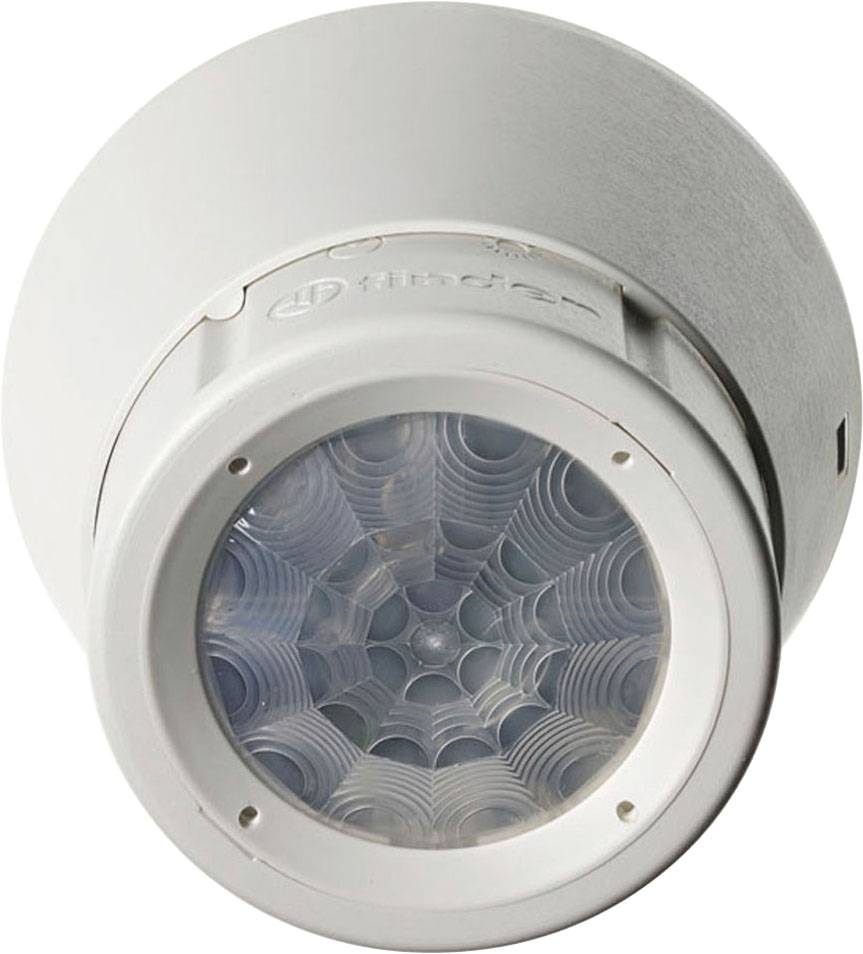

Finder 18.21.0.024.0300 Surface-mount Motion detector 360 ° White IP40
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 55.99 / piece)
€ 55.99
incl. VAT
14-day return policy included
Technical specifications
- Max. Inrush current 100 A.
- Control current 11 mA
- Connection type: Screw terminal
- Halogen-free: Yes
- Low-creep/back-field monitoring: Yes
- Suitable for: Ceiling mounting
- Optimum mounting height 2.8 m.
- Frequency: 50 Hz - 60 Hz
- Staircase monitoring: Yes
- Material quality: Thermoplastic
- Max. Range to one side: 4 m.
- Detection area Diameter on floor: 8 m.
- Adjustable response sensitivity: Yes
- Suitable for C load: Yes
- With signal unit: Yes
- Adjustable response brightness: Yes
- Sensor type: Passive infrared
- Product type
Motion detector
- Detection angle
360°
8 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
24 V DC/AC
- Switching capacity
1000 W
- Twilight settings
5 lx - 350 lx
- Time settings
10 s - 12 min
- Factory colour
White
- Similar RAL
9010
IP40
- Operating temperature
-10 °C - 50 °C
- Type
Plastic, matt
- Length
50.5 mm
- (Ø)
57.1 mm
- Dim
(Ø x L) 57.1 mm x 50.5 mm
Surface mounted (plaster)
White
Movement sensor
TRUE
50.5 mm
Screwed terminal
Untreated
AC/DC
50-60 MHz
75.1 mm
FALSE
Thermoplastic
100 A
Plastic
9010
24-24 V
IP40
FALSE
Matt
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2473718 Finder 18.21.0.024.0300 Surface-mount Motion detector 360 ° White IP40
User & Safety Instructions
User & Safety Instructions 2473718 Finder 18.21.0.024.0300 Surface-mount Motion detector 360 ° White IP40
Description
Type 18.21 motion detector for indoor installation For surface mounting on ceiling
SPST-NO (10 A)
This text is machine translated.
SPST-NO (10 A)
This text is machine translated.
Features
- The output contact is connected to the supply voltage
- Small dimensions
- Adjustable brightness threshold
- Adjustable off delay time
- Universal mounting position Allows selection of any detection range
- Wide detection angle.
