HellermannTyton 380-04014 LVK-C-5x1,5-16 PO-X BK Heatshrink with screw connectors Cable Ø range: 12 - 48 mm Content: 1 p
EAN:
Part number:
Item no:
Product type
Heatshrink with screw connectors
Cable Ø (max.)
48 mm
Min. cross section
1.50 mm²
max. cross section
48 mm
Content
1 pc(s)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Only 7 Set(s) available
Highlights & Details
Heatshrink with screw connectors
- 4:1
- This text is machine translated.
Our service for you
Technical specifications
- Material: radiation cross-linked polyolefin (PO-X)
- Inner sleeve length: 125 mm
- Inner sleeve 19 mm
- Inner sleeve after shrinking 3.2 mm
- Product type
Heatshrink with screw connectors
- Cable Ø (max.)
48 mm
- Min. cross section
1.50 mm²
- max. cross section
48 mm
- Content
1 pc(s)
- Manufacturer part #
380-04014
- Factory colour
Black
- Cable Ø up to
12 mm
- Cable Ø range
12 - 48 mm
- Features
UV-resistant
halogen-free
- Length
450 mm
- RoHS-compliant
Yes
- Max. temperature
+110 °C
- Min. temperature
-55 °C
- Type
LVK-C-5x1,5-16 PO-X BK
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1519606 HellermannTyton 380-04014 LVK-C-5x1,5-16 PO-X BK Heatshrink with screw connectors Cable Ø range: 12 - 48 mm Content: 1 p
Description
Scope of delivery
- 1 x outer sleeve
- 5 x inner sleeve

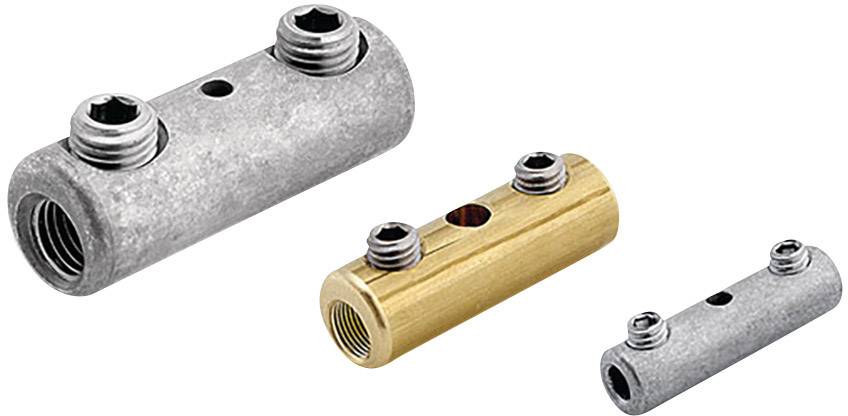

- 5x screw connectors
