Buy MEAN WELL MSP-100-48 SMPSU 48 V DC 105.6 W

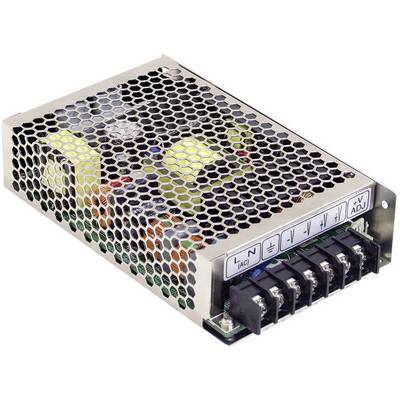

A power supply unit with a metal casing and ventilation grille, showing connections and adjustment options on the front panel.

Image similar

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

42 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Switching power supply medical

Highlights & Details

Output 48 V DC /
Power 105.6 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

Dim: (L x W x H) 159.00 x 97.00 x 38.00 mm

Output voltage (max.): 48 V DC

Connection: Screw terminal

: 105.6 W

No. of outputs: 1 x

Output voltage 1: 48 V DC

Type: closed

Weight: 379.17 g

PSU features: Regulated
incl. On/Off switch
Surge protection

Type: Synchronised

Width: 97.00 mm

Height: 38.00 mm

Length: 159.00 mm

Type: MSP-100-48

No. of inputs: 1 x

Output voltage: 48 V/DC

Output current (details): 2.2 A

Documents & Downloads

Datasheet

Datasheet 1293757 MEAN WELL MSP-100-48 SMPSU 48 V DC 105.6 W

User & Safety Instructions

User & Safety Instructions 1293757 MEAN WELL MSP-100-48 SMPSU 48 V DC 105.6 W

Information

Information 1293757 MEAN WELL MSP-100-48 SMPSU 48 V DC 105.6 W

Warranty Terms

Warranty Terms 1293757 MEAN WELL MSP-100-48 SMPSU 48 V DC 105.6 W

Description

Enclosed case, screw terminals · Universal input · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Low no load power consumption when using remote control · Built-in remote On/Off control · EN60601-1 compliant (MOOP level)
