OBO Bettermann 2003706 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)
EAN:
Part number:
Item no:
Total (€ 0.88 / piece)
€ 21.99
incl. VAT
14-day return policy included
Highlights & Details
UP device socket UG 46-L, airtight
- FLUSH-MOUNTED device socket 46, air-tight
Technical specifications
- Number of introductions: 8
- Product type
Dry lining box
- Features
Windproof
- Mounting type
Flush-mount
- Content
25 pc(s)
- Factory colour
Black

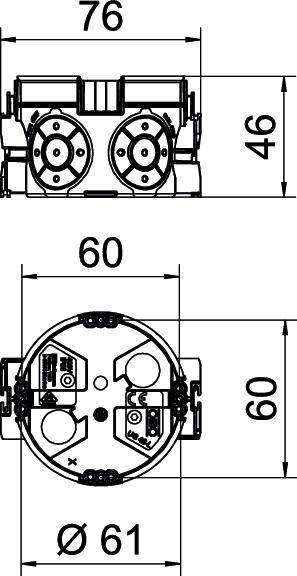

- Dim
(Ø x D) 60 mm x 46 mm
- Width
60 mm
- Depth
46 mm
- (Ø)
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525533 OBO Bettermann 2003706 Dry lining box Windproof (Ø x D) 60 mm x 46 mm 25 pc(s)
Description

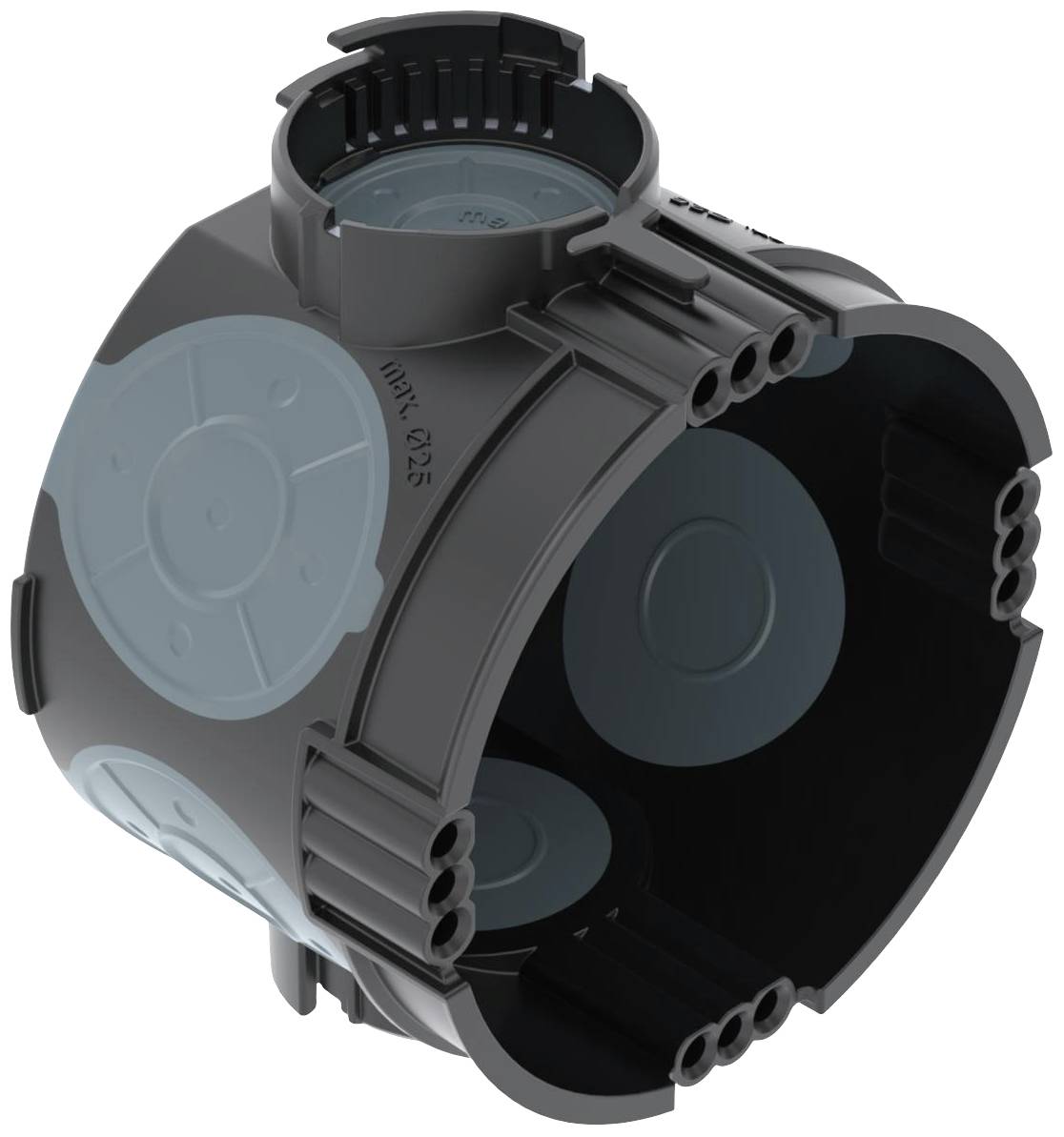

Flush-mounted device socket with air-tight membrane inserts, for use in masonry with a minimum installation depth of 46 mm.
4 x 3 Screw dome
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm in the connection socket
2 inserts up to Ø 12 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
4 x 3 Screw dome
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm in the connection socket
2 inserts up to Ø 12 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
