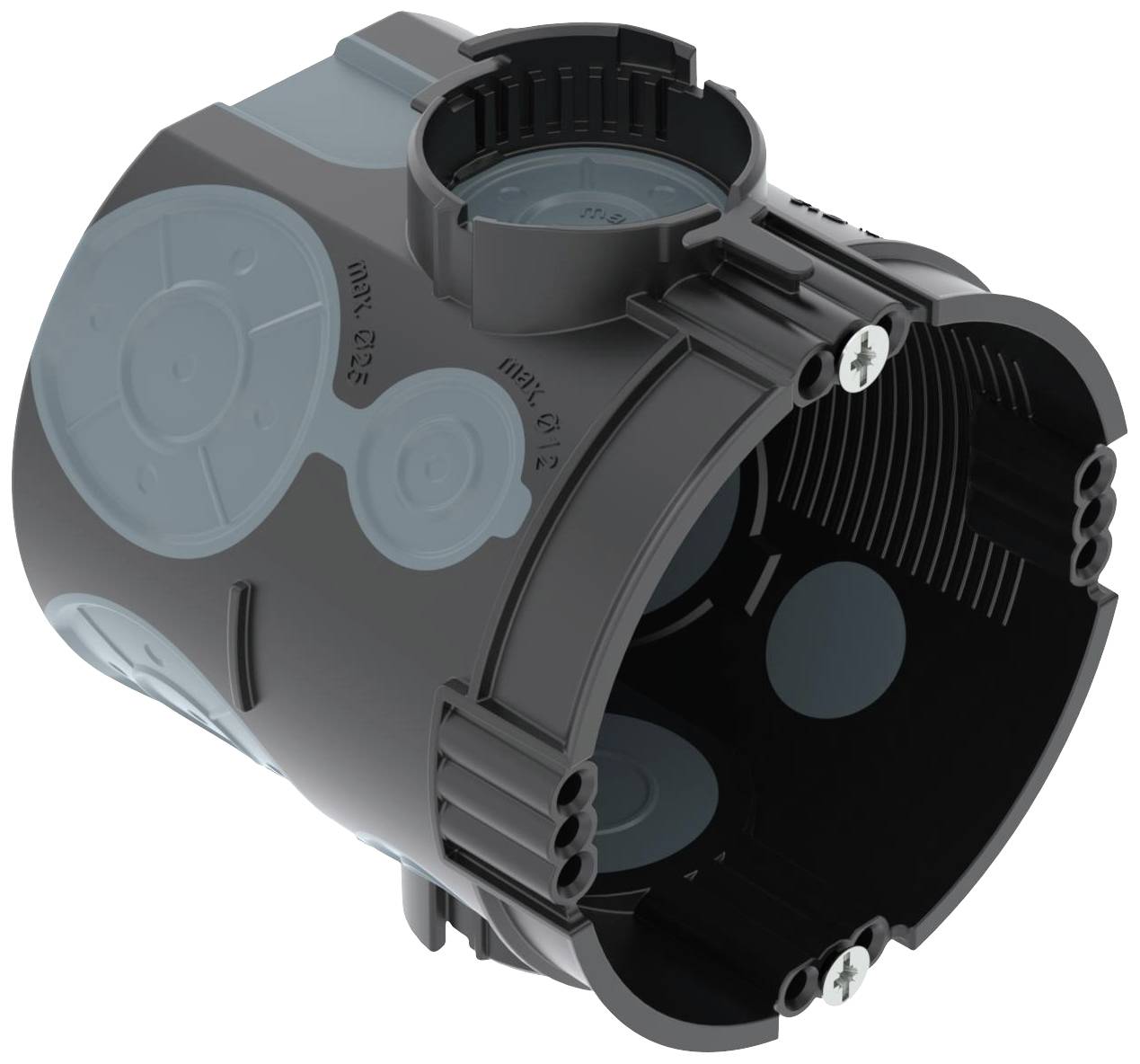

OBO Bettermann 2003709 Device lining box Windproof (Ø x D) 60 mm x 66 mm 25 pc(s)
EAN:
Part number:
Item no:
Total (€ 1.64 / piece)
€ 40.99
incl. VAT
14-day return policy included
Highlights & Details
FLUSH-MOUNTED device connection box UG 66-GS-L, air-tight
- FLUSH-MOUNTED device junction box 66, with device screws, air-tight
Technical specifications
- Number of introductions: 14
- With device screws
- Product type
Device lining box
- Features
Windproof
- Mounting type
Flush-mount
- Content
25 pc(s)
- Factory colour
Black
- Dim
(Ø x D) 60 mm x 66 mm
- Depth
66 mm
- (Ø)
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525536 OBO Bettermann 2003709 Device lining box Windproof (Ø x D) 60 mm x 66 mm 25 pc(s)
Description
Flush-mounted device socket with air-tight membrane inserts, for use in masonry with a minimum installation depth of 66 mm.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm
4 inserts up to Ø 12 mm
2 inserts up to Ø 12 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
4 x 3 Screw dome
2 pre-assembled device screws
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
2 inserts up to Ø 20 mm
4 inserts up to Ø 12 mm
2 inserts up to Ø 12 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
