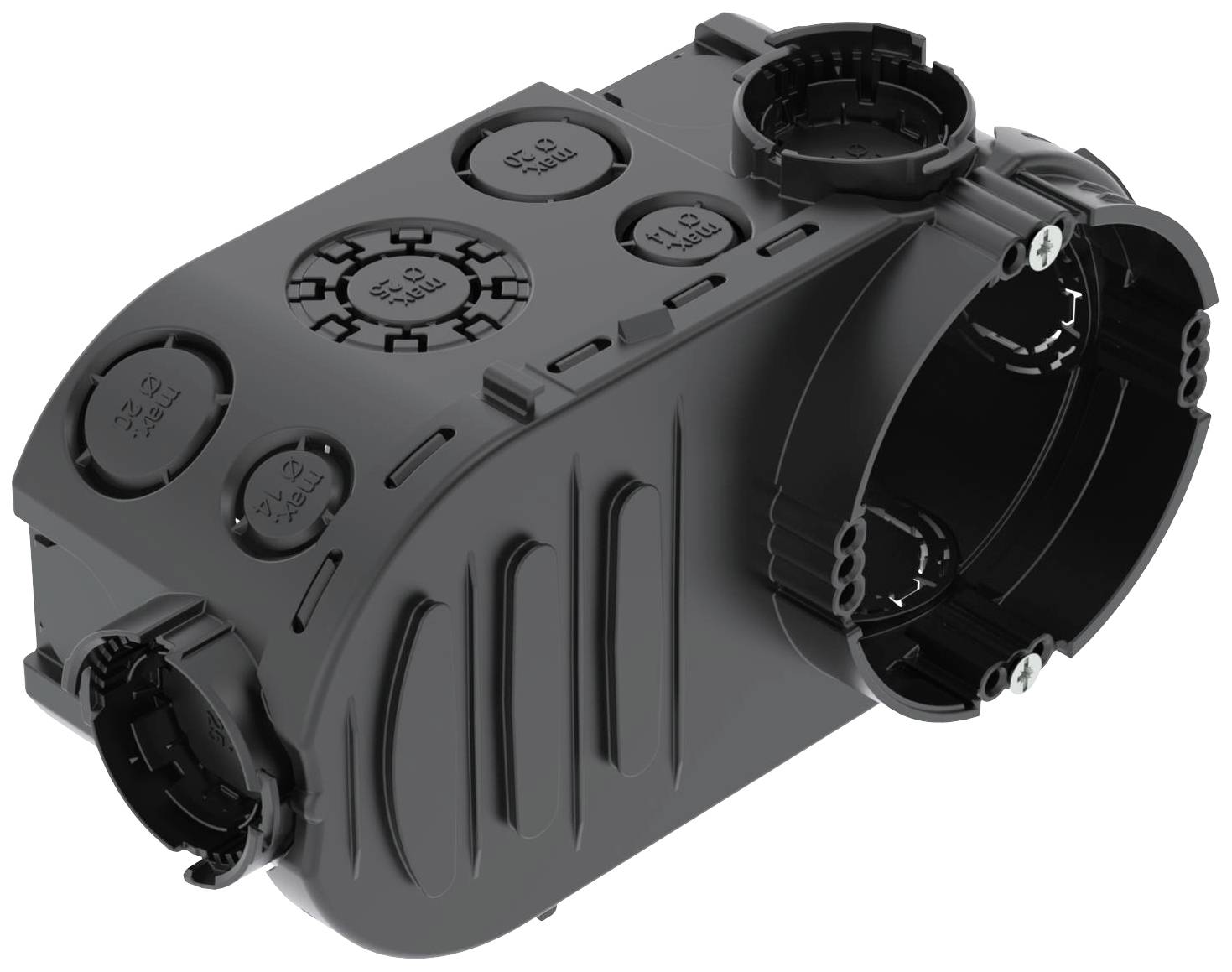

OBO Bettermann 2003726 Dry lining box (Ø x D) 60 mm x 67 mm 10 pc(s)
EAN:
Part number:
Item no:
Total (€ 5.80 / piece)
€ 57.99
incl. VAT
14-day return policy included
Highlights & Details
UP Electronics box UE 66
- FLUSH-MOUNTED electronic box 66, additional terminal compartment
Technical specifications
- Number of introductions: 22
- With device screws
- Product type
Dry lining box
- Mounting type
Flush-mount
- Content
10 pc(s)
- Factory colour
Black

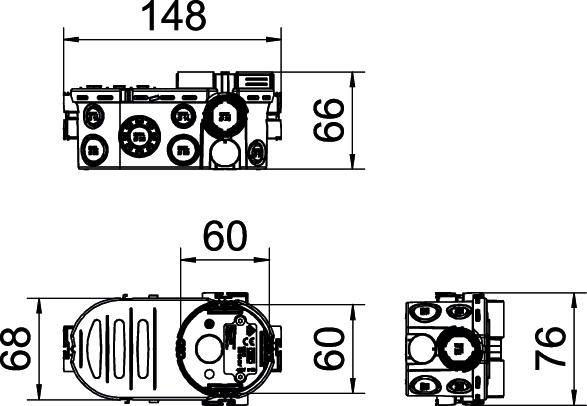

- Dim
(Ø x D) 60 mm x 67 mm
- Width
148 mm
- Depth
67 mm
- (Ø)
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525538 OBO Bettermann 2003726 Dry lining box (Ø x D) 60 mm x 67 mm 10 pc(s)
Description
Flush-mounted electronic box with additional clamping area, for use in masonry with a minimum installation depth of 66 mm.
With 4 connectable connection sockets with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
8 inserts up to Ø 20 mm
6 inserts up to Ø 14 mm
2 inserts up to Ø 20 mm in the floor
Partition for different voltages, with break-out openings
4 x 3 Screw dome
Tested according to DIN EN 60670-1, DIN EN 60670-22… and DIN 49073-1.
This text is machine translated.
With 4 connectable connection sockets with bayonet lock
6 combi pipe entries Ø 20 and 25 mm
8 inserts up to Ø 20 mm
6 inserts up to Ø 14 mm
2 inserts up to Ø 20 mm in the floor
Partition for different voltages, with break-out openings
4 x 3 Screw dome
Tested according to DIN EN 60670-1, DIN EN 60670-22… and DIN 49073-1.
This text is machine translated.
