OBO Bettermann 2003722 Device lining box (Ø x D) 60 mm x 46 mm 10 pc(s)
EAN:
Part number:
Item no:
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 2.27 / piece)
€ 22.68
plus VAT.
Only 4 Set(s) available
Highlights & Details
UP device socket UG 46-DV, double design
- FLUSH-MOUNTED DEVICE socket 46, double design
Technical specifications
- Number of introductions: 12
- With device screws
- Product type
Device lining box
- Features
Two-gang
- Mounting type
Flush-mount
- Content
10 pc(s)
- Factory colour
Black

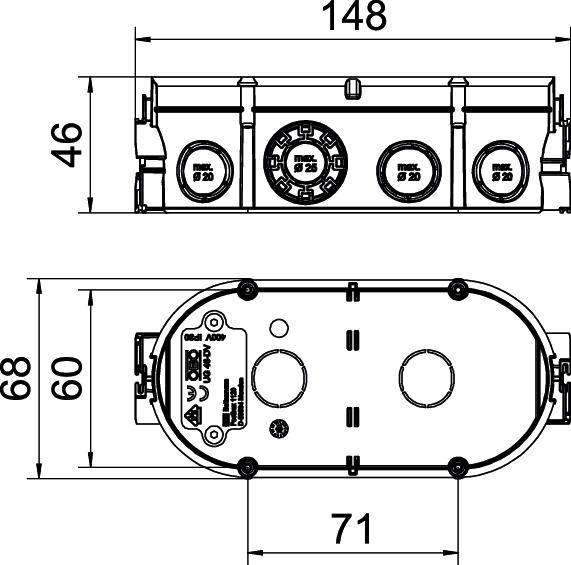

- Dim
(Ø x D) 60 mm x 46 mm
- Width
148 mm
- Depth
46 mm
- (Ø)
60 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2525541 OBO Bettermann 2003722 Device lining box (Ø x D) 60 mm x 46 mm 10 pc(s)

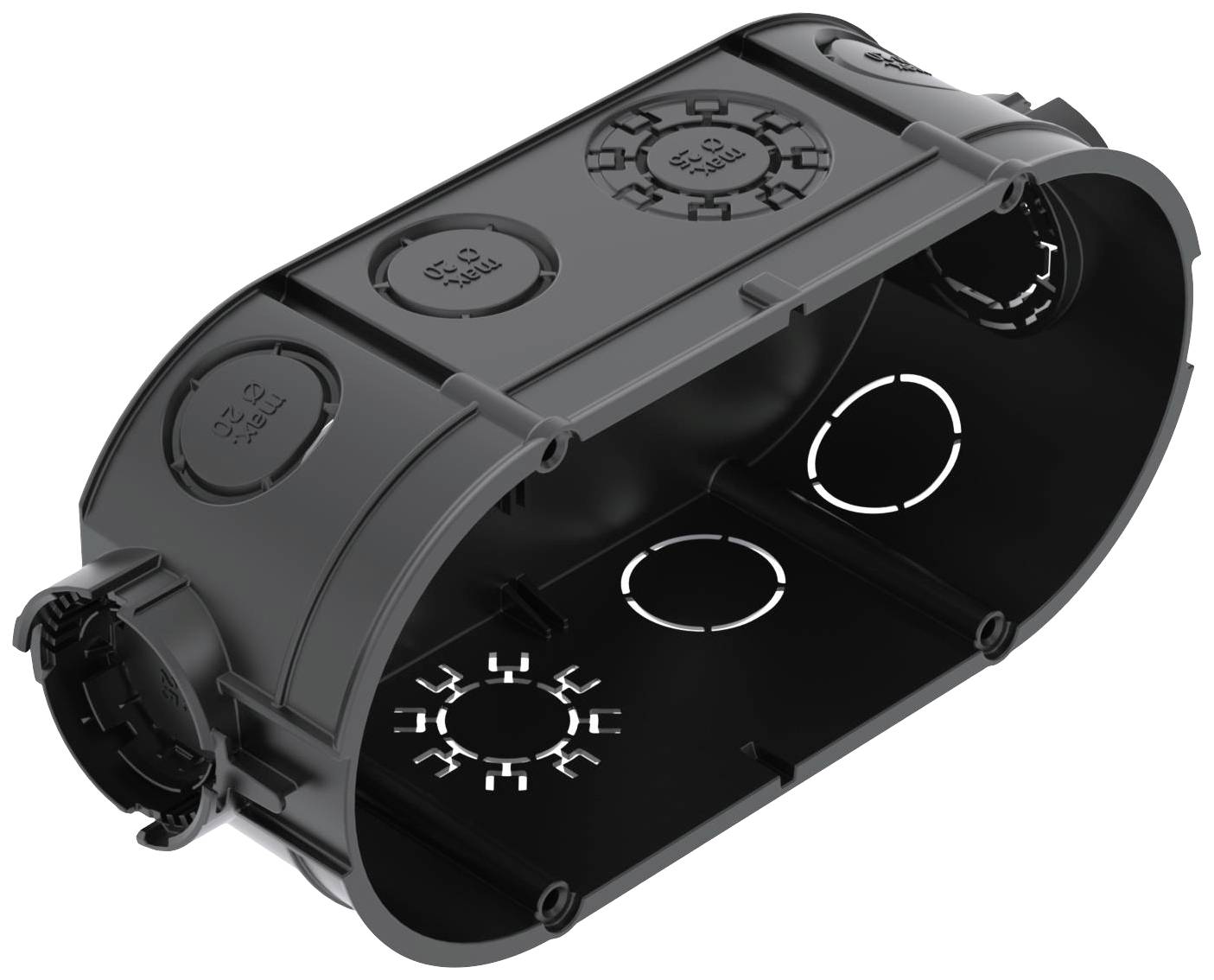

Description
Double flush-mounted device socket for use in masonry with an installation depth of at least 46 mm.
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
6 inserts up to Ø 20 mm
2 inserts up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
Two-sided coupling connection with bayonet lock
4 combi pipe entries Ø 20 and 25 mm
6 inserts up to Ø 20 mm
2 inserts up to Ø 20 mm in the floor
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
This text is machine translated.
