Name: Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 568100
Price: 75.99 EUR
Availability: InStock

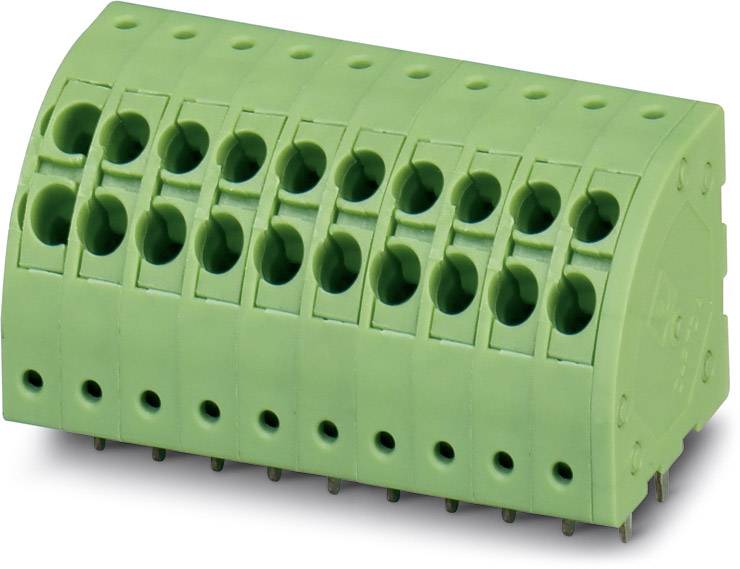

A green electrical connector with multiple socket terminals, suitable for use on printed circuit boards in electronic devices.

Image similar

Product type

Spring-loaded terminal

3.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

9 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.52 / piece)

€ 75.99

incl. VAT

Only 9 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Type: PTDA 1,5/ 3-3,5

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 3.50 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: PTDA

Min. stripping length: 10 mm

Stripping length (max.): 10 mm

Connection: Spring-loaded terminal
Print

Nominal current: 13.5 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 13.5 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 16

Contact material: Copper alloy

Enclosure material: Polyamide 6.6

Factory colour: Green

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1724925

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 240 V

Width: 19.50 mm

Height: 16.00 mm

Length: 11.90 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 568100 Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 568100 Phoenix Contact 1724925 Spring-loaded terminal 1.50 mm² Number of pins 3 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 240 V, Pitch: 3.5 mm, Number of positions: 3, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 45 °, Color: green
