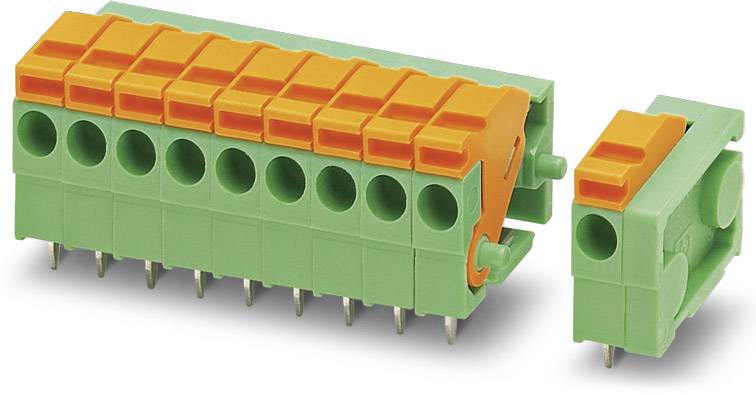

Image similar
Phoenix Contact 1991707 Spring-loaded terminal 1.00 mm² Number of pins 7 Green 50 pc(s)
Product type
Spring-loaded terminal
CS
3.81 mm
Pins per row
7
Number of pins
7
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.20 / piece)
€ 159.99
incl. VAT
14-day return policy included
Technical specifications
- Type
FFKDSA1/H-3,81- 7
- Product type
Spring-loaded terminal
- Features
+ push-in spring bracket
- CS
3.81 mm
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Series
FFKDS(A)/H
- Min. stripping length
6 mm
- Stripping length (max.)
10 mm
- Connection
Spring-loaded terminal
Print
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Cross section (flexible) (max.)
1.00 mm²
- Cross section (inflexible) (max.)
1.00 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
18
- Contact material
Copper alloy
- Enclosure material
Polyamide 6.6
- Factory colour
Green
- Wire protection
Yes
- Actuation direction
Parallel (to the PCB)
- Manufacturer part #
1991707
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
160 V
- Width
26.67 mm
- Height
13.60 mm
- Length
13.00 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788421 Phoenix Contact 1991707 Spring-loaded terminal 1.00 mm² Number of pins 7 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 788421 Phoenix Contact 1991707 Spring-loaded terminal 1.00 mm² Number of pins 7 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 12 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 7, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 0 °
