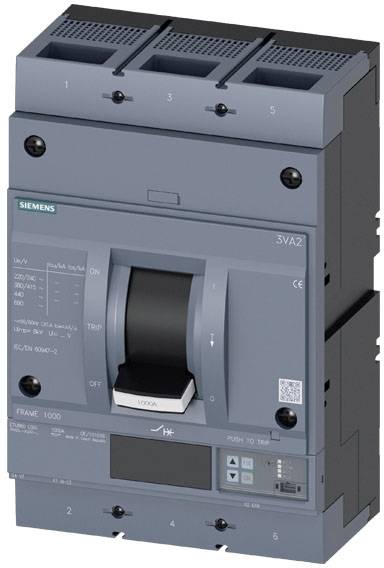

Name: Siemens 3VA2563-5KQ32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69
Brand: Siemens
SKU: 2862580

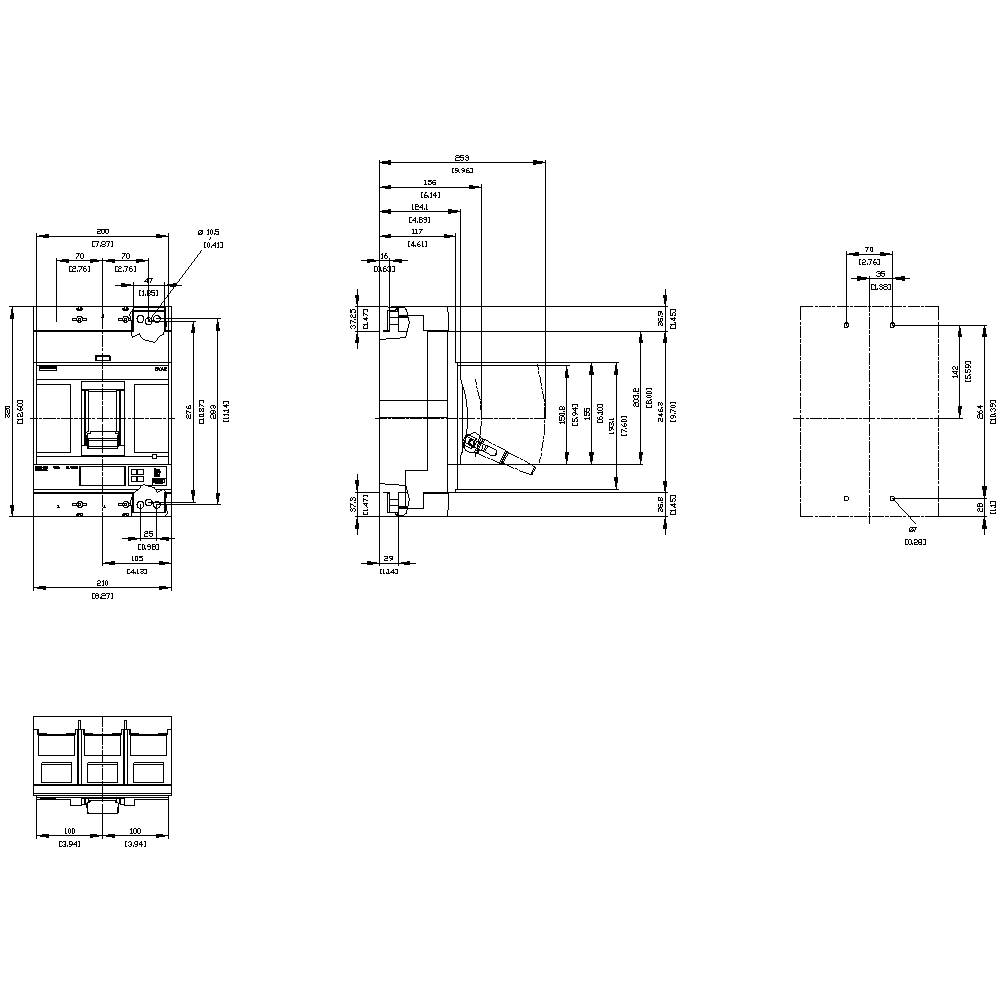

Technical drawing of a machine with front, side, and top views. Dimensions and details of screw positions and spacing provided.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

630 A

Connection

Screws

Packaging type

Piece

Type

3VA2563-5KQ32-0AA0

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Suitability for use: Plant protectionElectrical connection arrangement / main circuit arrangement: Front connectionActuator type: Rocker switchMechanical life (cycles) / typical: 10000Electrical life (switching cycles) / at AC-1 / at 380/415 V: 4600Electrical life (switching cycles) / at 1/2 current rating / at AC-1 / at 380/415 V: 7000Electrical life (switching cycles) / at AC-1 / at 690 V: 3200Product component / display: YesCommunication function: YesGround fault protection: YesDevice self-protection: YesOther measuring function: YesInsulation voltage 800 VPower loss/maximum 144 W.Execution of the ground fault monitoring: Total current formation L-conductorBreaking capacity: Operating short circuit current (ICS) / at 240 V: 85 kABreaking capacity: Operating short circuit current (ICS) / at 690 V: 19 kABreaking capacity: Limit short circuit current (ICU) / at 240 V: 85 kABreaking capacity: Limit short circuit current (ICU) / at 690 V: 25 kASwitch-on capacity short-circuit current (ICM) / at 240 V: 187 kASwitch-on capacity short-circuit current (ICM) / at 690 V: 53 kAAdjustable delay time / with G-trigger / with I2t characteristic curve / starting value: 0.05 sec.Adjustable delay time / with G-trigger / with I2t characteristic curve / end value: 0.8 sec.Adjustable delay time / of the S-trigger / with I2t characteristic curve / starting value: 0.05 s.Adjustable delay time / of the S-trigger / with I2t characteristic curve / end value: 0.5 sec.Adjustable delay time / of the S-trigger / with standard characteristic curve / initial value: 0.05 s.Adjustable delay time / of the S-trigger / with standard characteristic curve / final value: 0.5 s.Product characteristic / for neutral conductor / can be upgraded / short-circuit and overload protection: YesType of connectable conductor cross-sections / for flat rail connection / minimum 20 x 4 mmType of connectable conductor cross-sections / for flat rail connections / maximum: 50 x 28 mm

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2563-5KQ32-0AA0

Amperage adjustment range (min.): 252 A

Amperage adjustment range (max.): 630 A

Adjustment range (amperage): 252 - 630 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: ETU860

Connection: Screws

: IP40

Depth: 120 mm

Width: 210 mm

Height: 320 mm

Dim: (W x H x D) 210 x 320 x 120 mm

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2862580 Siemens 3VA2563-5KQ32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69

User & Safety Instructions

User & Safety Instructions 2862580 Siemens 3VA2563-5KQ32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69

Description

Circuit breaker 3VA2 IEC frame 1000 switching capacity class M ICU=55kA @ 415V 3-pole, system protection ETU860, LSIG, In=630A overload protection IR=250A...630A short-circuit protection ISD=0.6..10x In, II=1.5..12x In-line protection optional with external current transformer, Up to 160% ground fault protection, can be switched off Ig=0.2...1 x In, tg=0.05-0.8s flat screw connection compact circuit breaker 3VA2 with ETU 8 series for system protection.The 3VA compact circuit breaker from Siemens, an important component of SENTRON protection components for industrial applications as well as for infrastructure applications, offer effective systems -, starter and motor protection by safely switching off in case of overload and short circuit. The 3VA compact circuit breakers set new standards in flexibility and a wide range of modular accessories. Uniform accessories for several sizes across all series of the 3VA1 and 3VA2 compact circuit breakers. This version of the 3VA compact circuit breaker is characterized above all by: 1. Compact design. 2. Available as a variant for system protection and generator protection. 3. Available in 3- and 4-pin versions. 4. Four switching power classes of 55 kA ... 150 kA at 415 V. 5. Depending on the size: Rated current 25 A.630 A. 6. Installation in fixed installation, plug-in technology, slide-in technology possible. 7. The series has an electronic overcurrent release. 8. Has an integrated display for showing measurement values. 9. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS. 10. Modular, easy-to-install internal accessory with multiple functions.
