Name: Siemens 5SV33446KK01 5SV3344-6KK01 RCCB A 4-pin 40 A 0.03 A 400 V
Brand: Siemens
SKU: 1418927
Price: 134.99 EUR
Availability: BackOrder

A 63A Siemens residual current circuit breaker (RCCB) with 4 poles, used to interrupt electrical circuits in the event of current leakage.

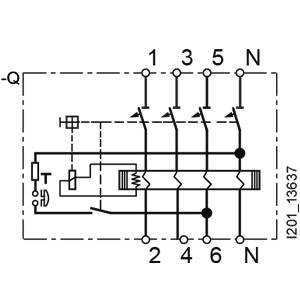

Circuit diagram of an electrical contactor system with coil (T), terminals 1-6, Q and N. Shows circuit connections and current flow.

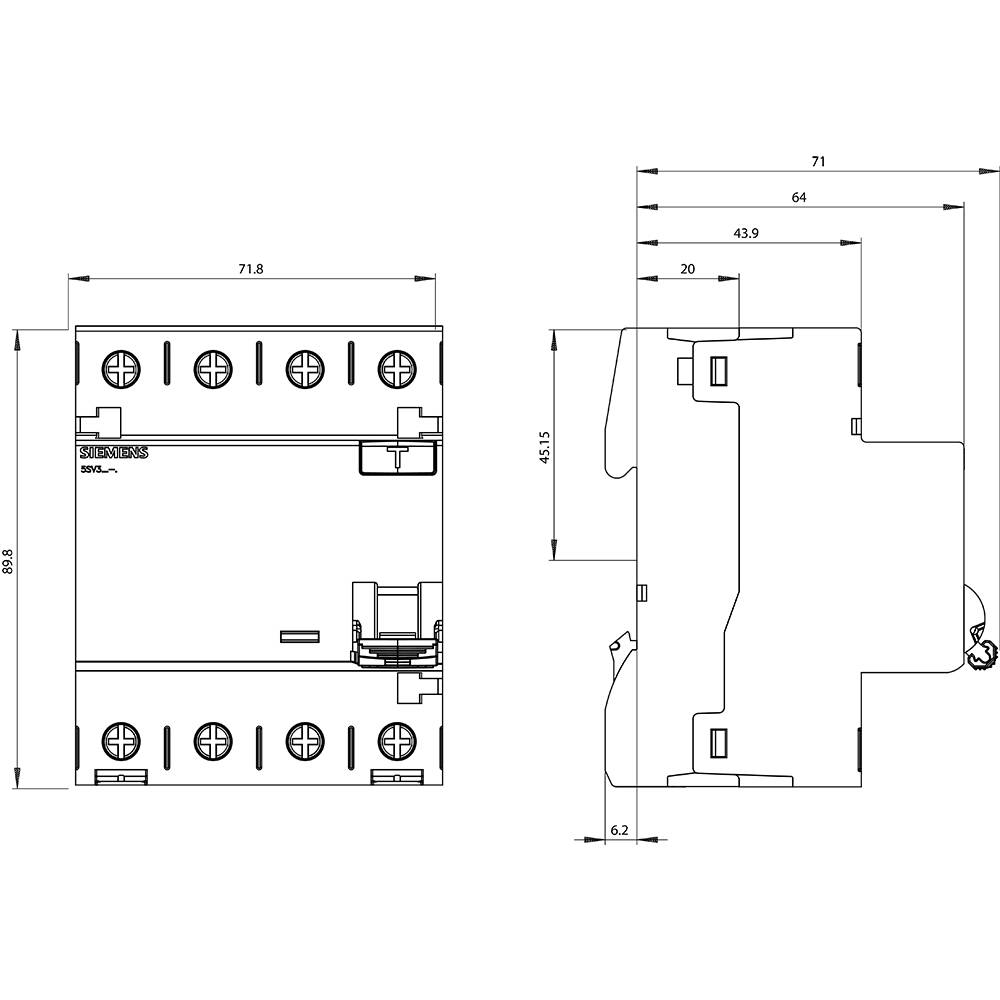

Drawing of an electrical device with dimensions in millimetres, showing front and side views with detailed measurements.

1/3

Image similar

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

40 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mechanical life (Cycles): 10000
IP20, for distributor installation, with the connected conductors

Product type: RCCB

Number of pins: 4

Release characteristics: A

Differential current rating: 0.03 A

Nominal current: 40 A

Nominal current - rounded value: 40 A

Dim: (W x H x D) 72 x 90 x 70 mm

Switch-off capacity: 0.8 kA

Content: 1 pc(s)

Nominal voltage: 400 V

Width: 72 mm

Height: 90 mm

Depth: 70 mm

RoHS-compliant: Yes

: DIN rail

: AC

: 70 mm

: 40 A

: 400 V

: 2000 V

: 4

: 0.03 A

: A

: FALSE

: 10 kA

: 3 kA

: 2

: 4

: TRUE

: 7035

: FALSE

: 1.8 W

: 50 Hz

: IP20

: 0.75-35 mm²

: 0.75-35 mm²

: TRUE

: -25-45 °C

: TRUE

: 6

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1418927 Siemens 5SV33446KK01 5SV3344-6KK01 RCCB A 4-pin 40 A 0.03 A 400 V

User & Safety Instructions

User & Safety Instructions 1418927 Siemens 5SV33446KK01 5SV3344-6KK01 RCCB A 4-pin 40 A 0.03 A 400 V

Description

GROUND fault circuit breaker, 4-pole, type A, short-term delayed, in: 40A, 30 mA, UN AC: 400 V of the FI switch is the residual current protection device for touch protection The patented residual current protection devices from Siemens are an important component of the SENTRON protective components for electrical installation, because they prevent life-threatening electric shocks by safely switching off dangerous fault currents against earth. Electrically ignited fires can be prevented even in the . Whether by direct contact with live parts during operation or by indirect contact with equipment, the protection is achieved primarily by rapid shutdown. The Siemens 5SV FI circuit breakers are characterized above all by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal AC fault currents or smooth DC fault currents, Siemens offers the right type and special versions for all requirements. 3. Reliable safety during installation thanks to the standard included comprehensive and touch protection. 4. Tool-free release from the DIN rail or from the busbar network by means of convenient slide-manual operation. 5. Datamatrix code on the front of the device offers all information about the FI-circuit breaker quickly and easily. 6. Be protected according to standards: The residual current circuit breakers comply with the DIN VDE regulations. 7. Optimum technology for your safety - only from Siemens.

This text is machine translated.
